Remote Control Mirror Switch Connector End View
Remote Control Mirror Switch Connector End View

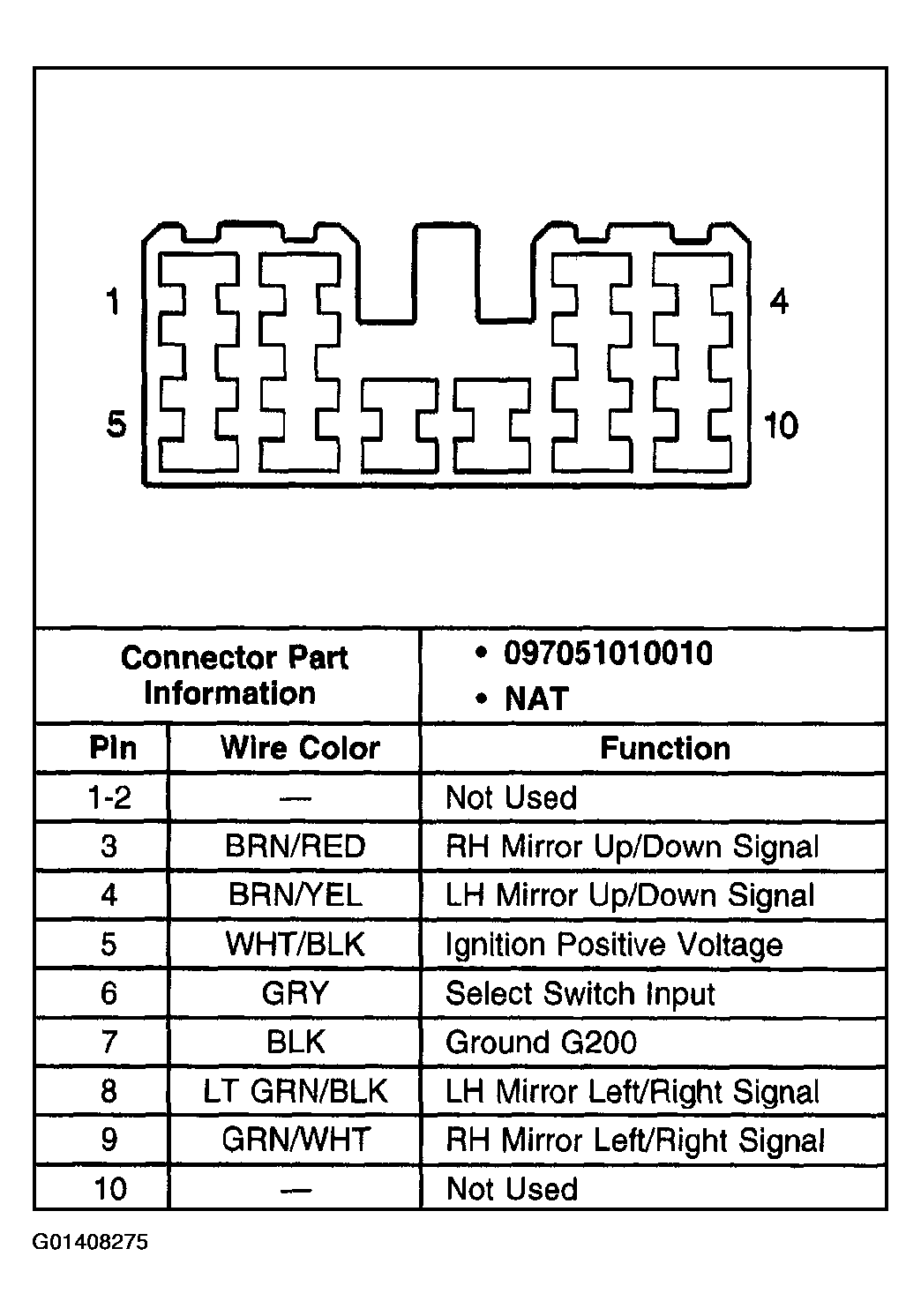

Fig 1: Remote Control Mirror Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
