Installation Procedure
IMPORTANT:
When installing a new exhaust system component, always use new gaskets and seals.
- Install the resonator/muffler/tail pipe assembly to the vehicle.
- Support the resonator/muffler/tail pipe assembly with hangers.

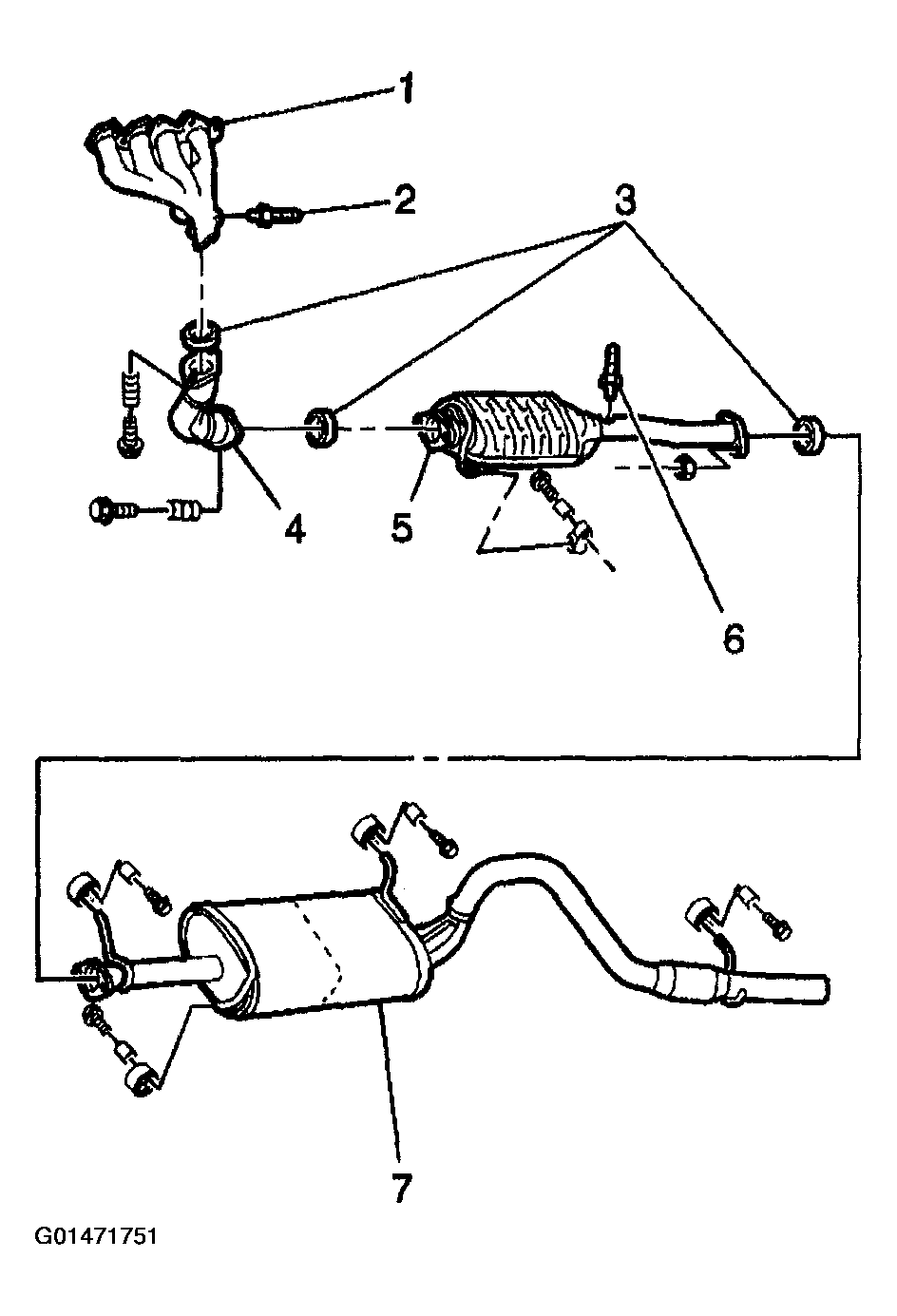

- Attach the resonator/muffler/tail pipe assembly (7) with a new gasket to the catalytic converter assembly (5).
- Secure the resonator/muffler/tail pipe assembly with two nuts. Do not fully tighten the nuts.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Align all system components before tightening the fasteners, in order to prevent noise or vibrations.
Tighten
Tighten the catalytic converter to resonator/muffler/tail pipe assembly bolts to 50 N.m (37 lb ft).
- Lower the vehicle.
