Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the PSP switch (2) into the power steering pump (3).

    Tighten

    1. Tighten the PSP switch to 27 N.m (20 lb ft).

  2. Connect the PSP switch electrical connector (1).
  3. Bleed the air from the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM   in Power Steering System.

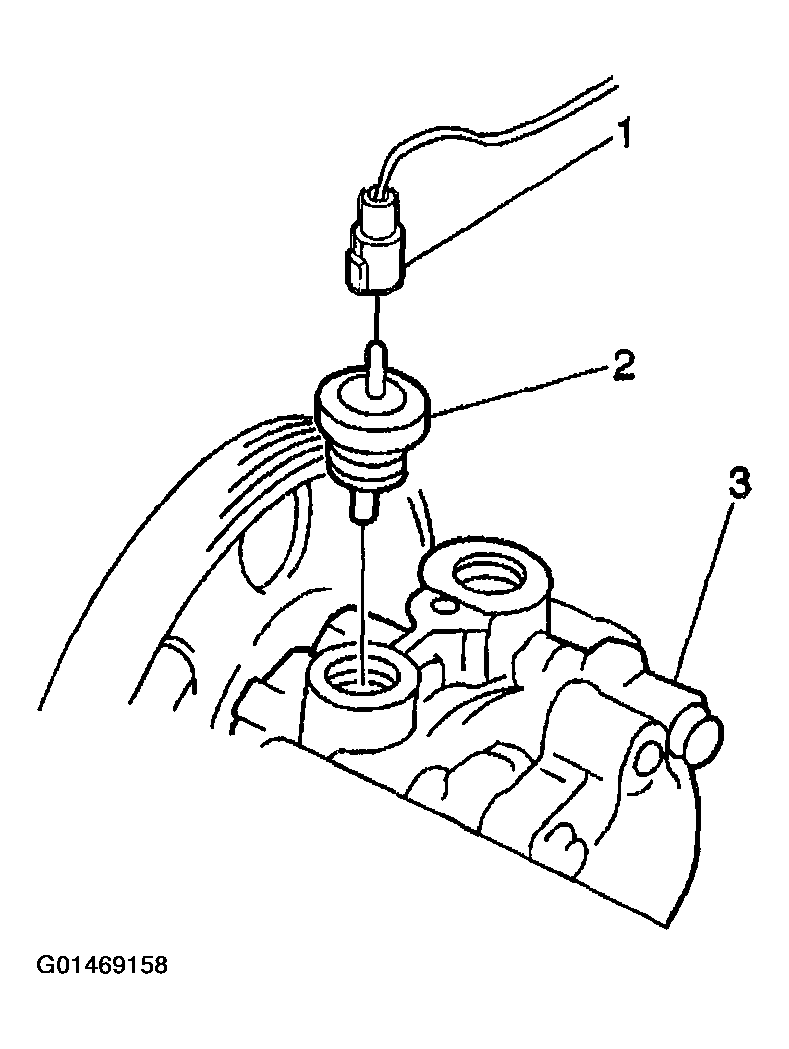

    Fig 1: Installing PSP Switch From Power Steering Pump
    G01469158Courtesy of GENERAL MOTORS CORP.
