Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

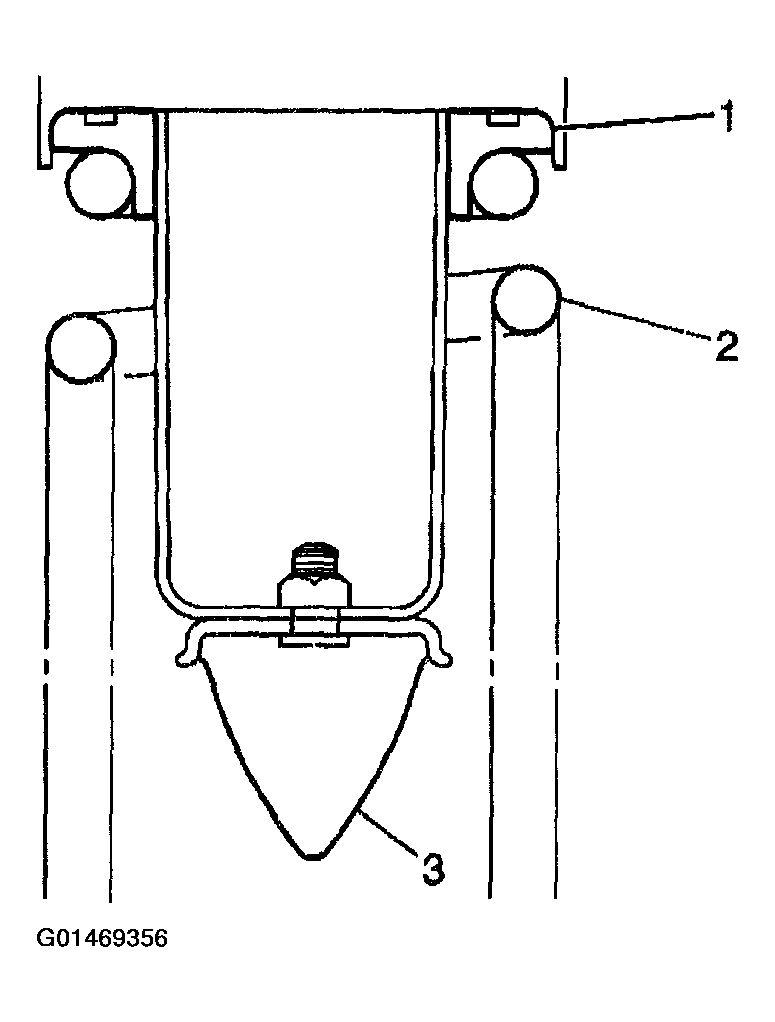

- Install the bump stopper (3).
Tighten
Tighten the bump stopper to 50 N.m (36.5 lb ft).
- Install the spring rubber seat (1).
- Install the coil spring. Refer to FRONT COIL SPRINGS REPLACEMENT .
- Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
- Lower the vehicle.
