Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE in General Information.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  3. Remove the coil spring. Refer to FRONT COIL SPRINGS REPLACEMENT  .
  4. Remove the spring rubber seat (1).
  5. Remove the bump stopper (3).

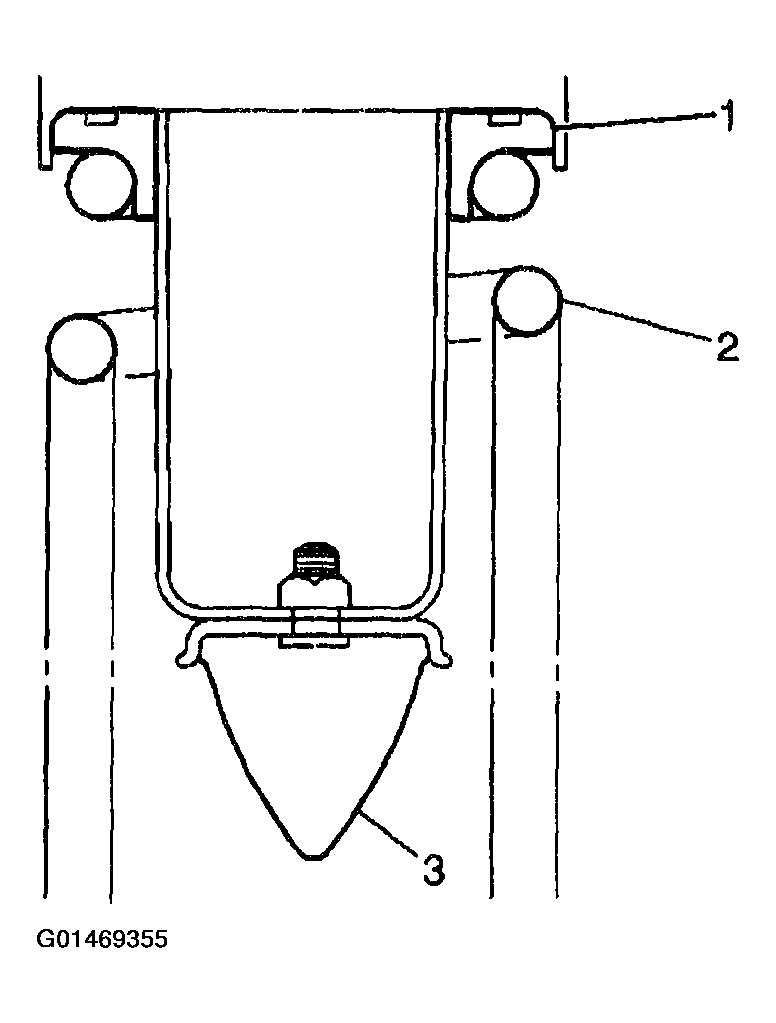

    Fig 1: Removing Spring Rubber Seat & Bump Stopper
    G01469355Courtesy of GENERAL MOTORS CORP.
