Automatic Transmission Shift Lock Control Schematics (Shiftlock Control with Cruise Control)

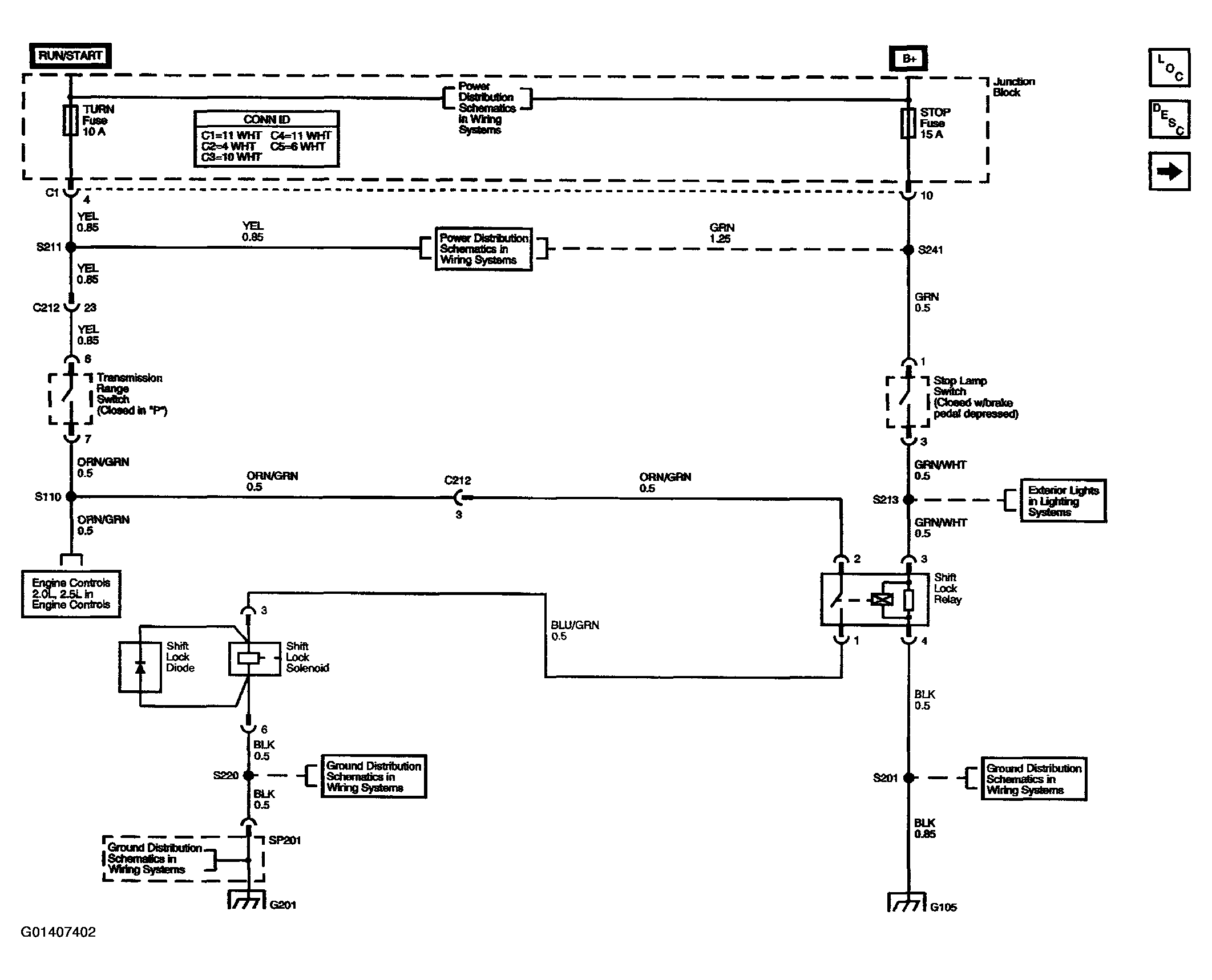

Fig 1: Automatic Transmission Shift Lock Control Schematics (Shiftlock Control With Cruise Control)
G01407402Courtesy of GENERAL MOTORS CORP.

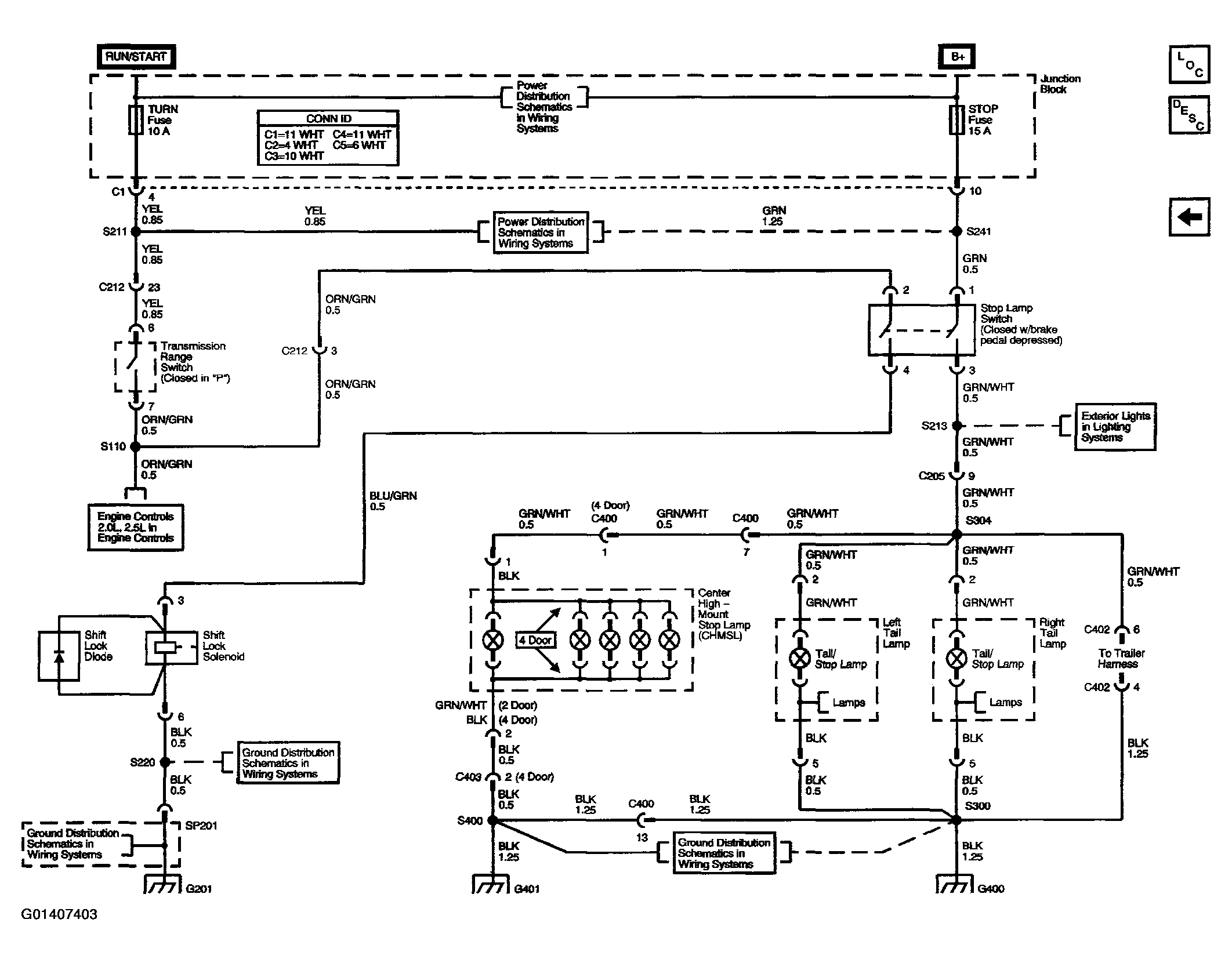

Fig 2: Automatic Transmission Shift Lock Control Schematics (Shiftlock Control Without Cruise Control
G01407403Courtesy of GENERAL MOTORS CORP.
