Entertainment Component Views

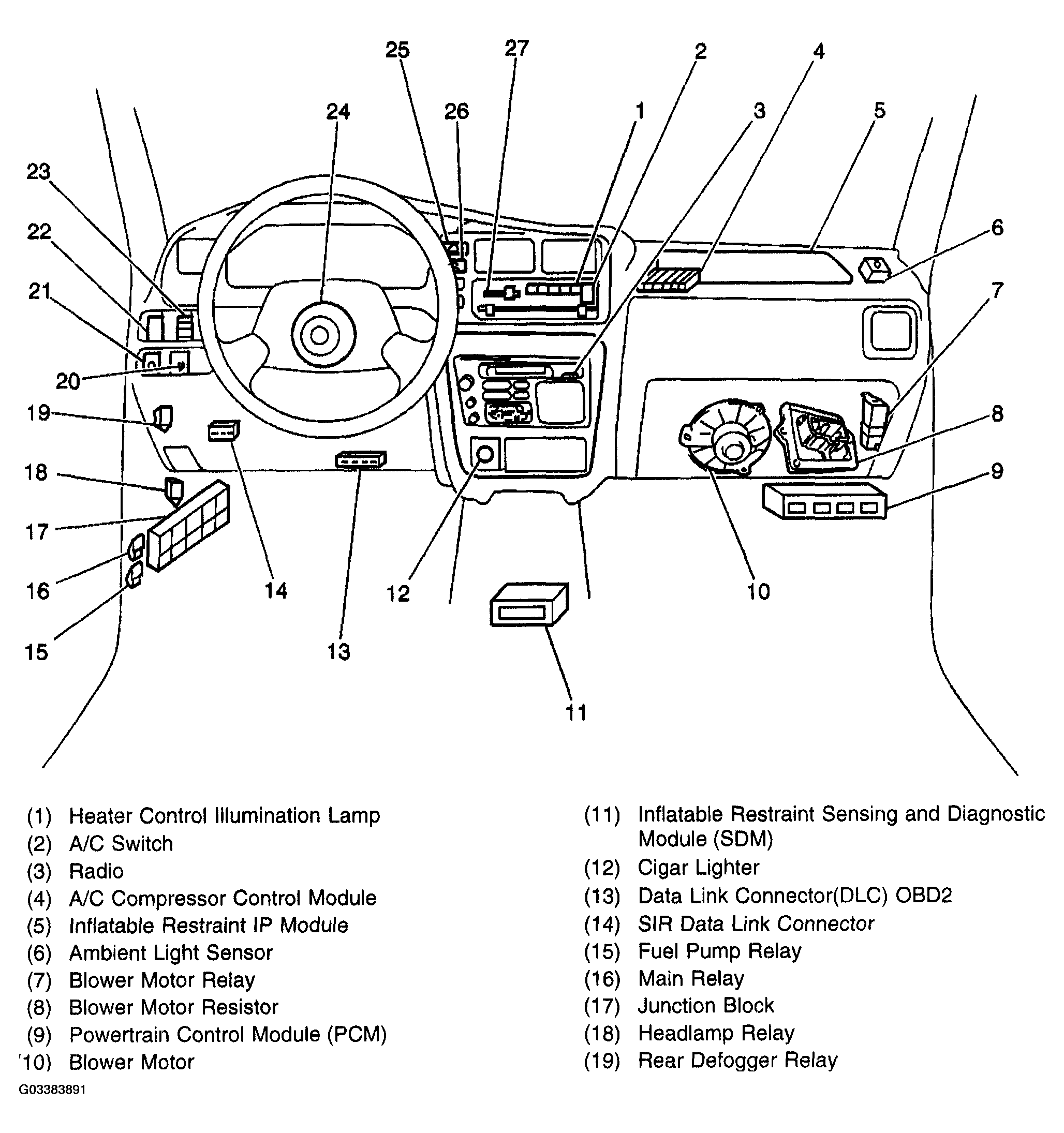

Fig 1: Identifying Component Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

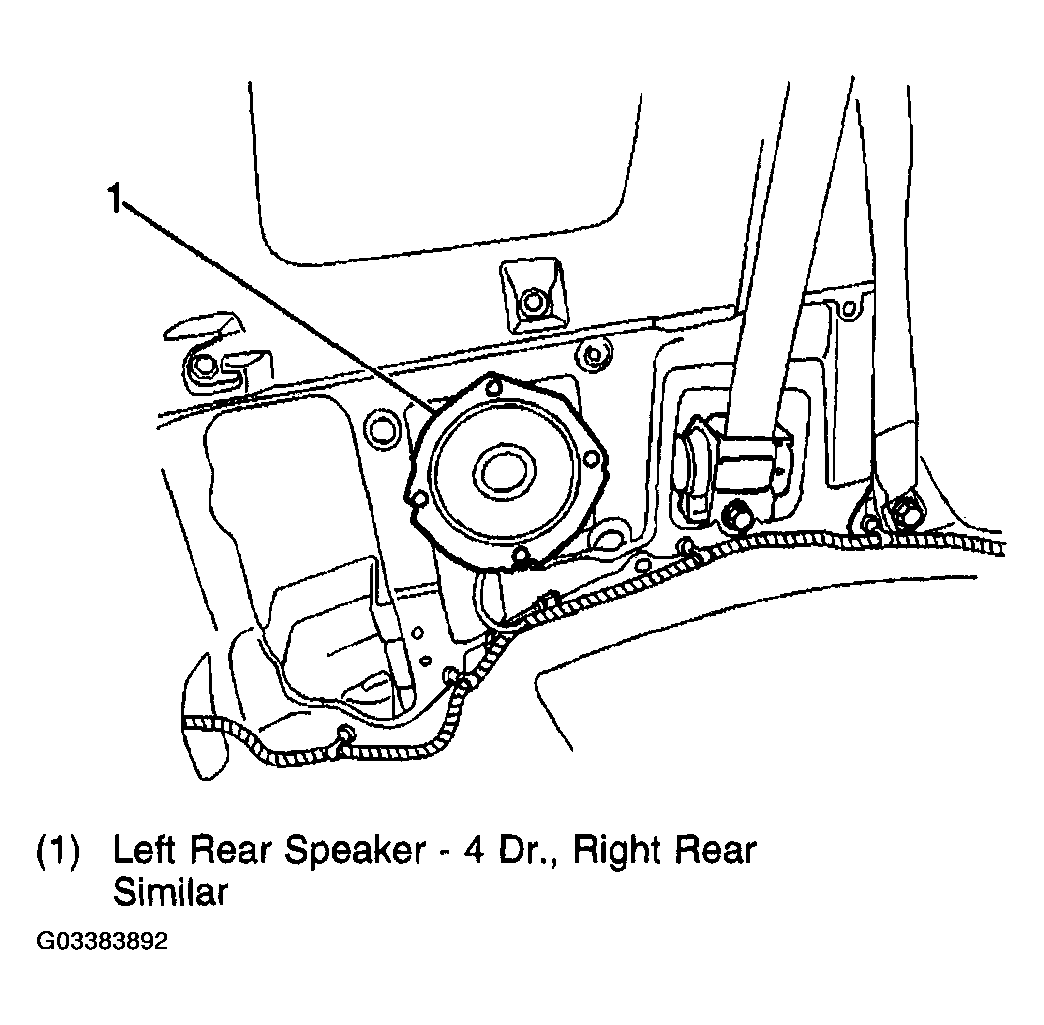

Fig 2: Identifying Left Rear Speaker

Courtesy of GENERAL MOTORS CORP.

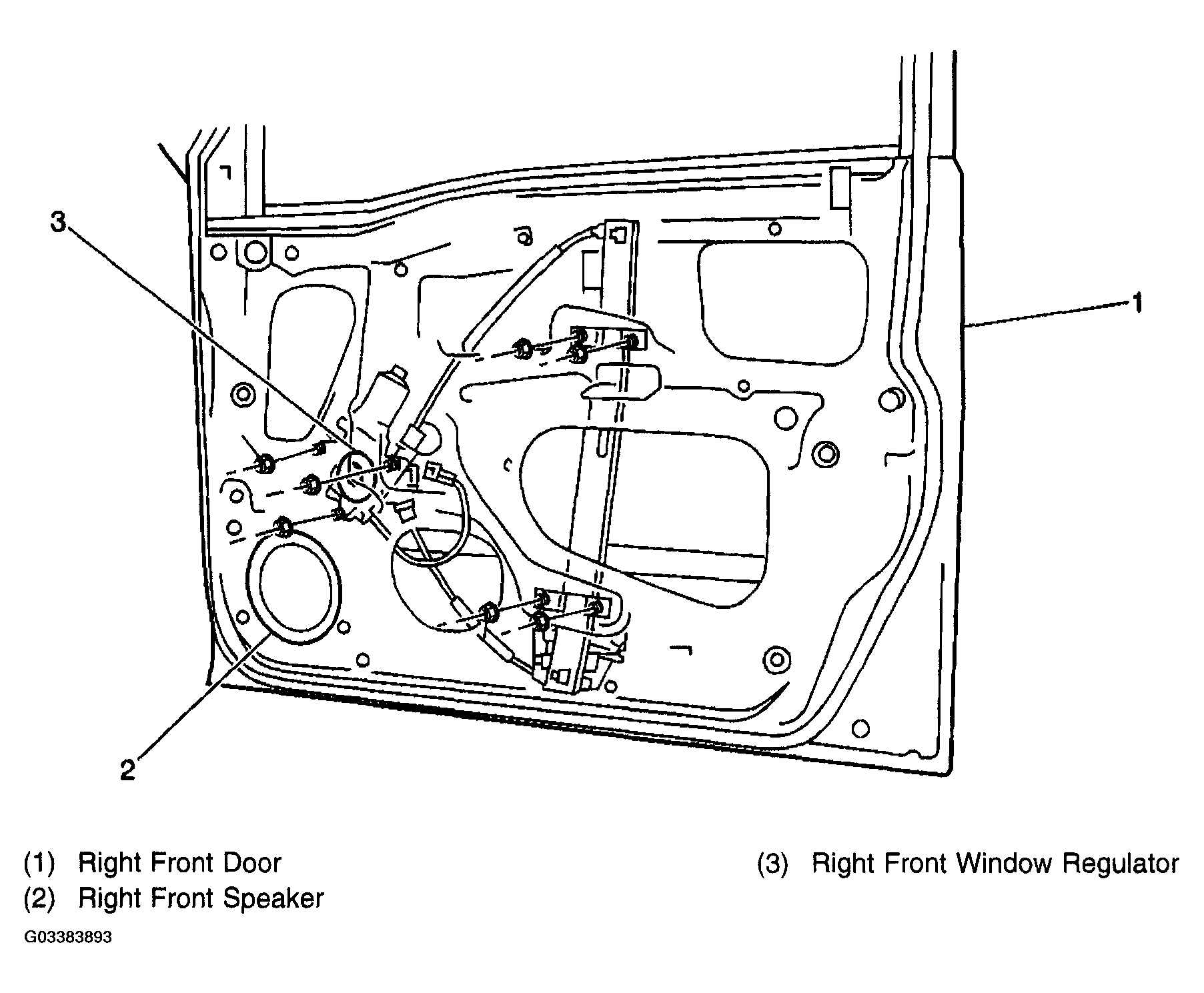

Fig 3: Identifying Component Of Right Front Door

Courtesy of GENERAL MOTORS CORP.

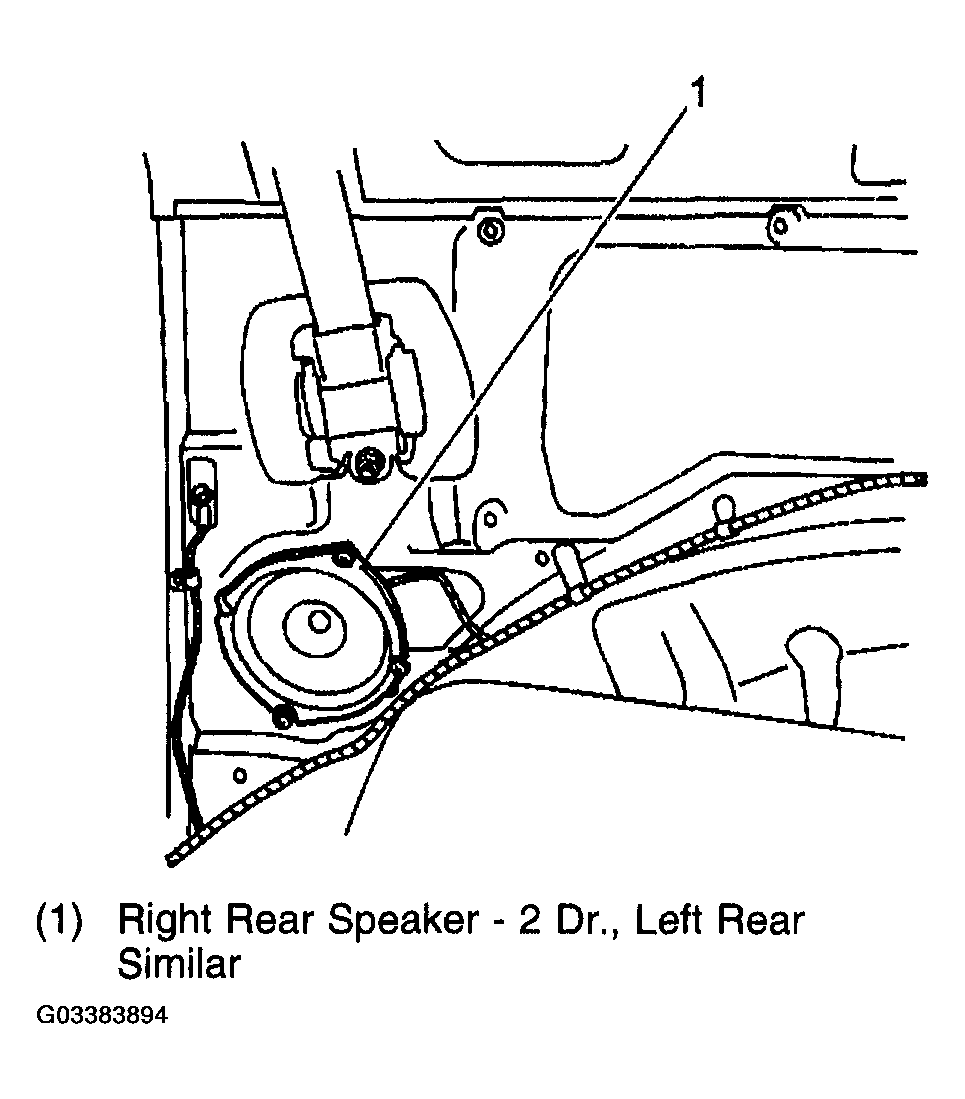

Fig 4: Identifying Right Rear Speaker

Courtesy of GENERAL MOTORS CORP.
