Home › Chevrolet › 2003 › Tracker 2D Utility, RWD, Standard › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › CPP Switch Connector End View

CPP Switch Connector End View

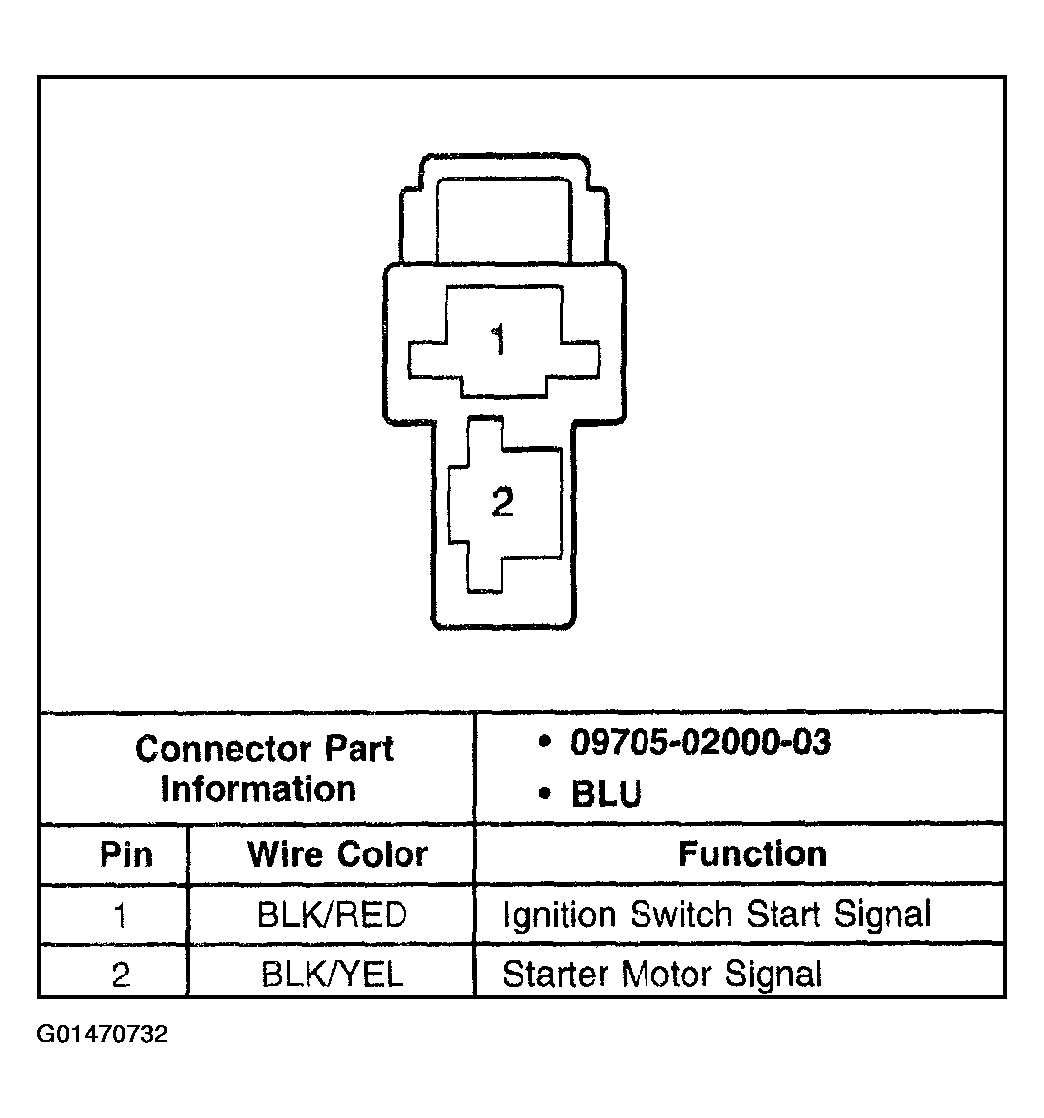

Fig 1: CPP Switch
G01470732Courtesy of GENERAL MOTORS CORP.
