Door Lock Switch Connector End View
Door Lock Switch Connector End View

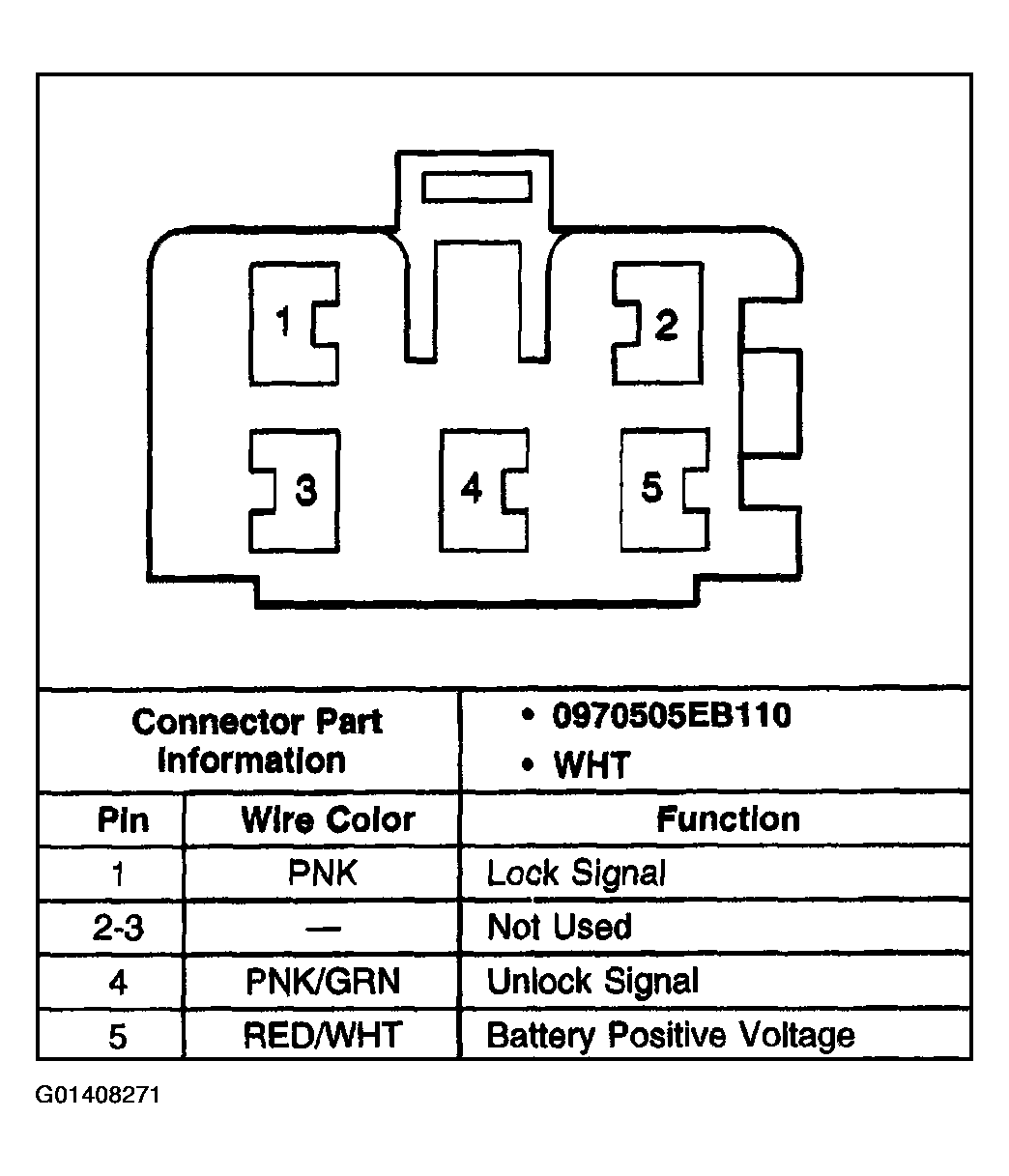

Fig 1: Door Lock Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
