IP Lamp Dimmer Control Connector End View

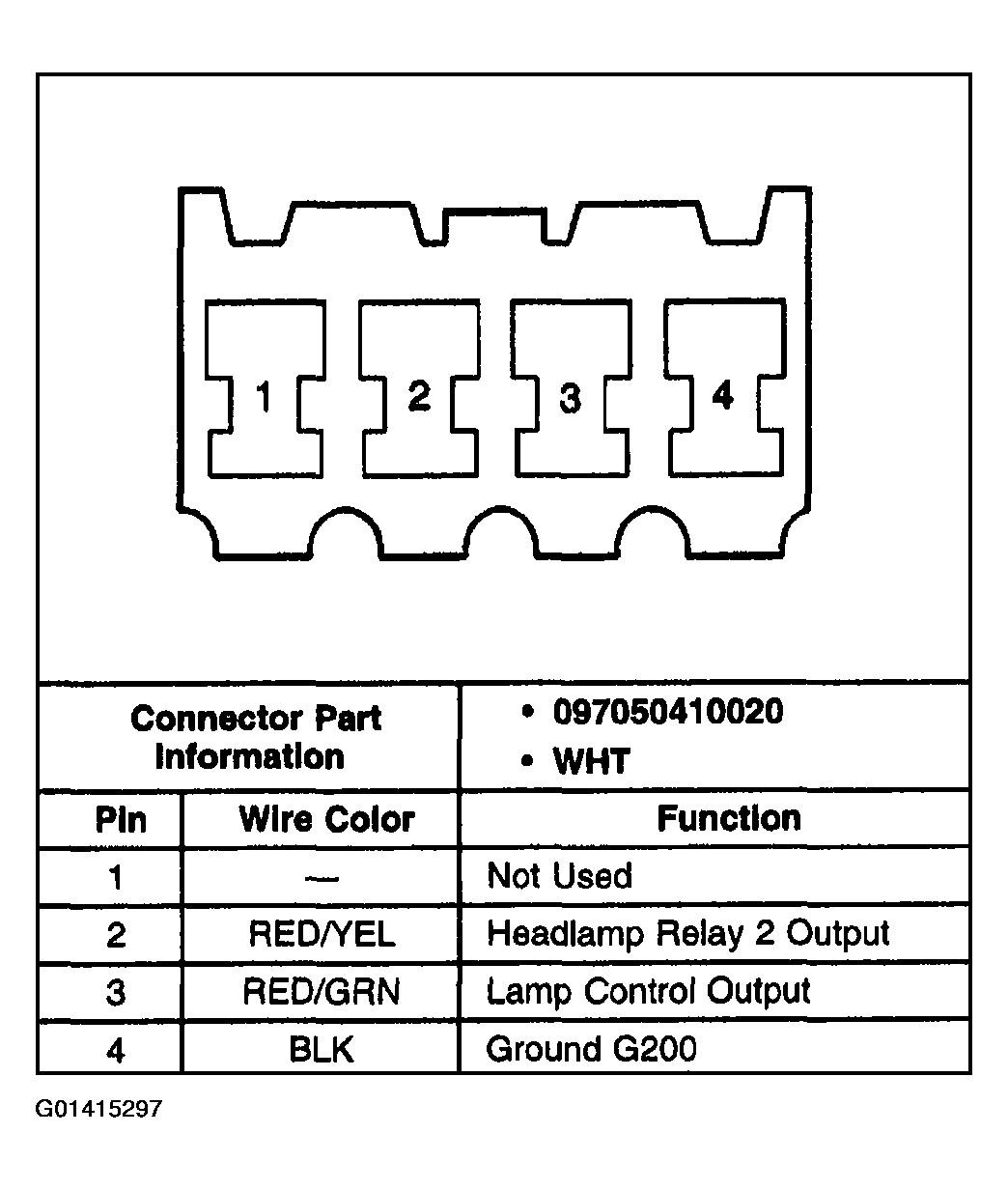

Fig 1: IP Lamp Dimmer Control
G01415297Courtesy of GENERAL MOTORS CORP.
