Ignition Switch C218 Connector End View
Ignition Switch C218 Connector End View

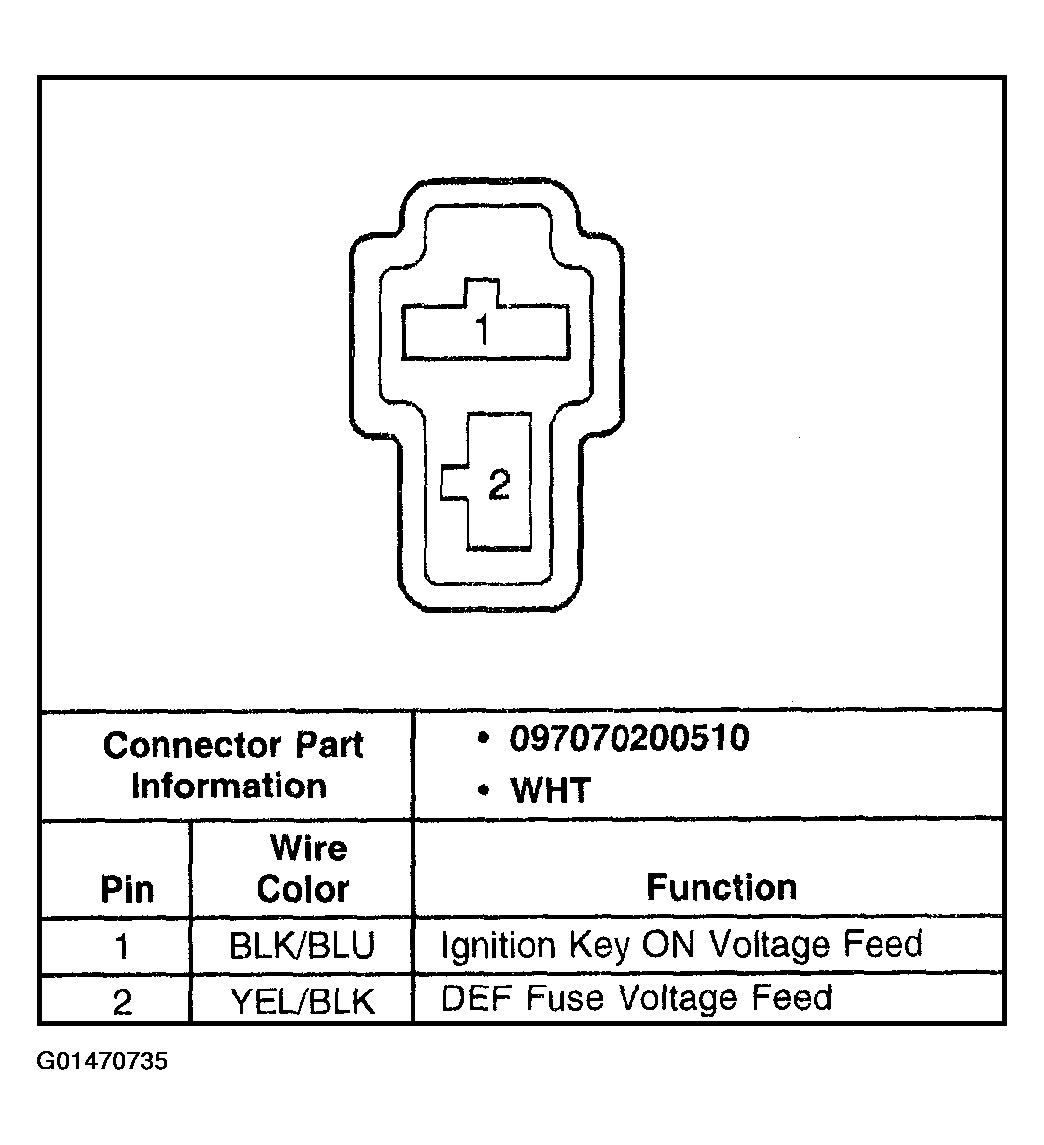

Fig 1: Ignition Switch C218
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
