Input Shaft Speed Sensor Connector End View

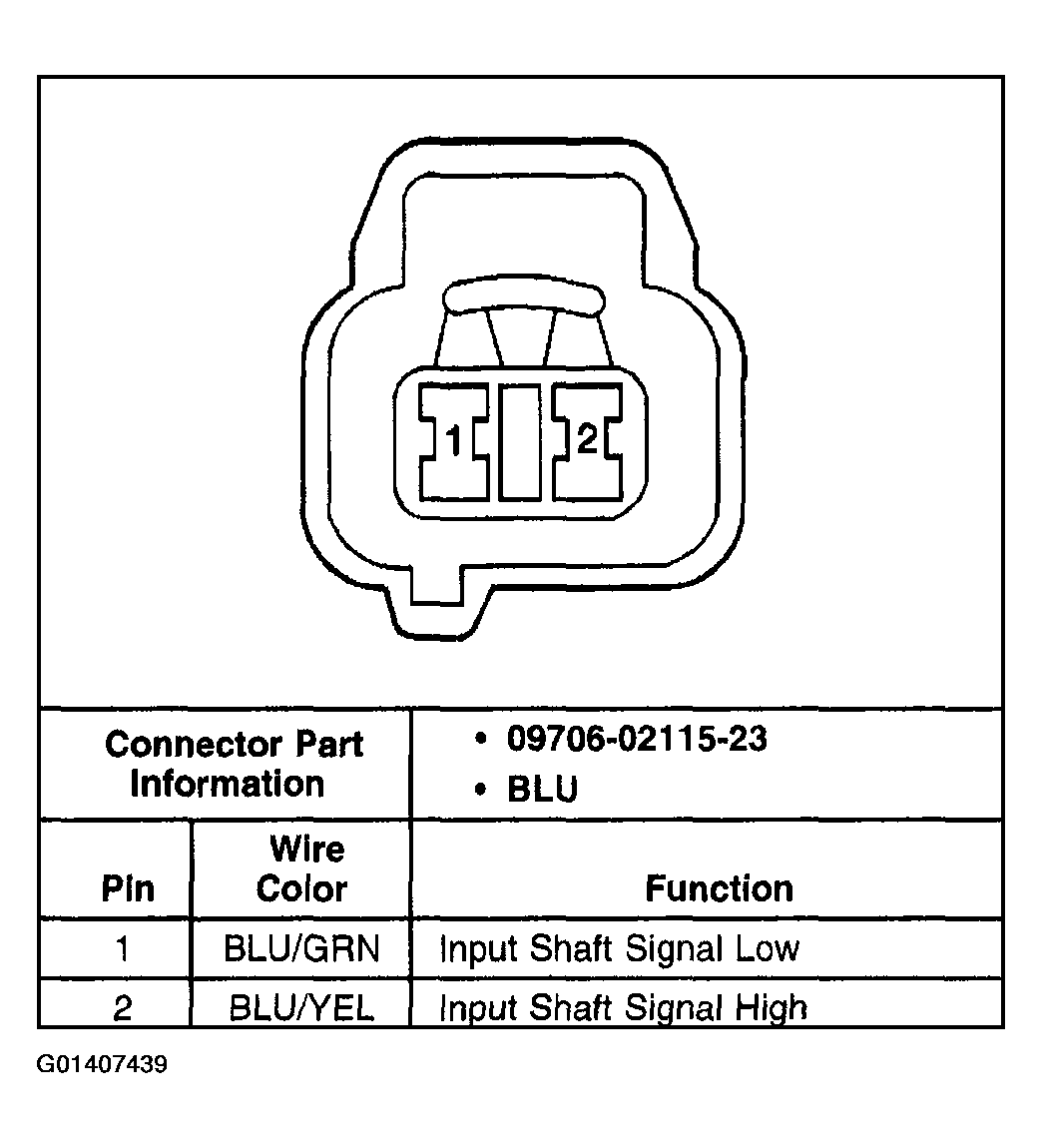

Fig 1: Input Shaft Speed Sensor
G01407439Courtesy of GENERAL MOTORS CORP.
