Output Shaft Speed Sensor Connector End View

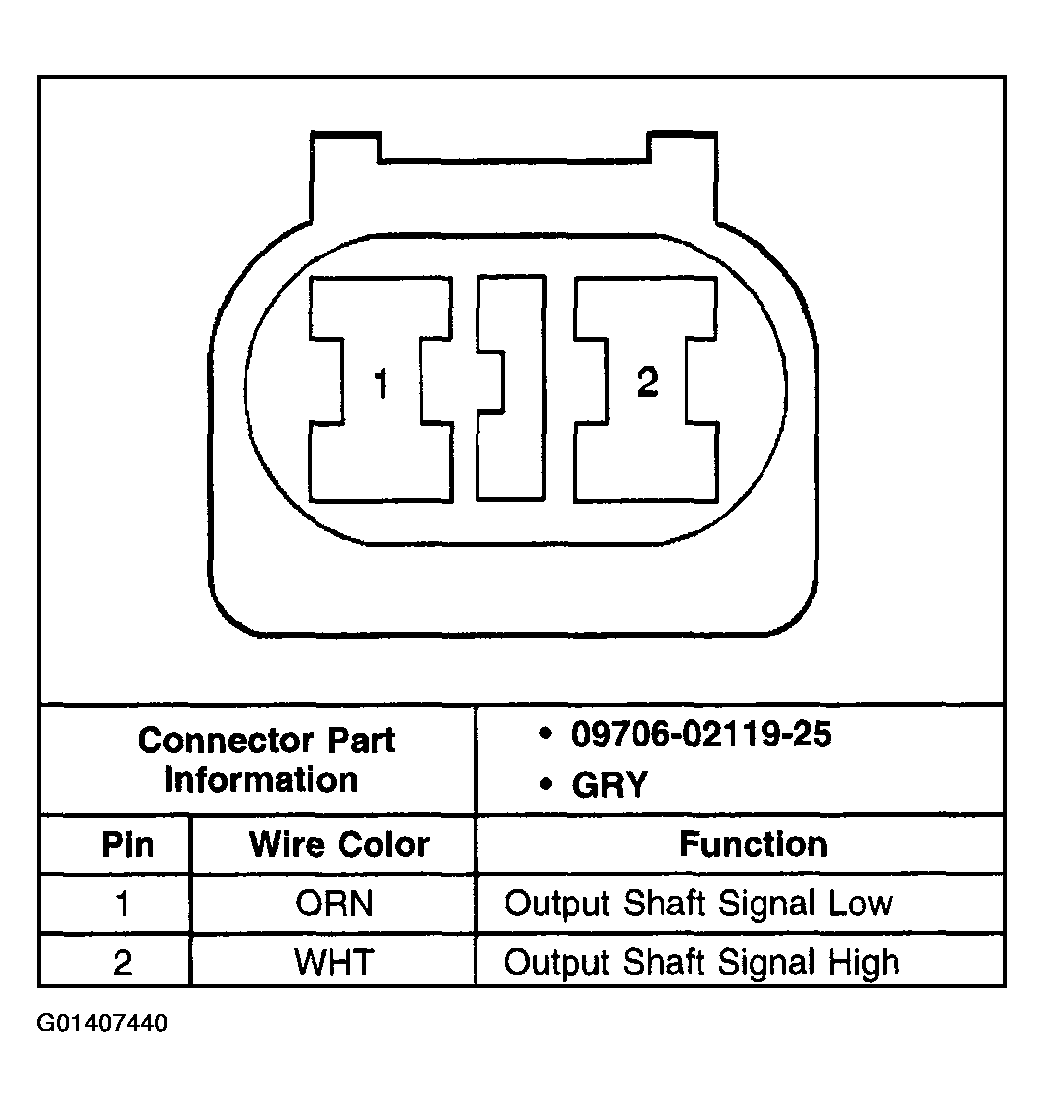

Fig 1: Output Shaft Speed Sensor
G01407440Courtesy of GENERAL MOTORS CORP.
