Transmission Range Switch Connector End View

Fig 1: Transmission Range Switch
G01407409Courtesy of GENERAL MOTORS CORP.

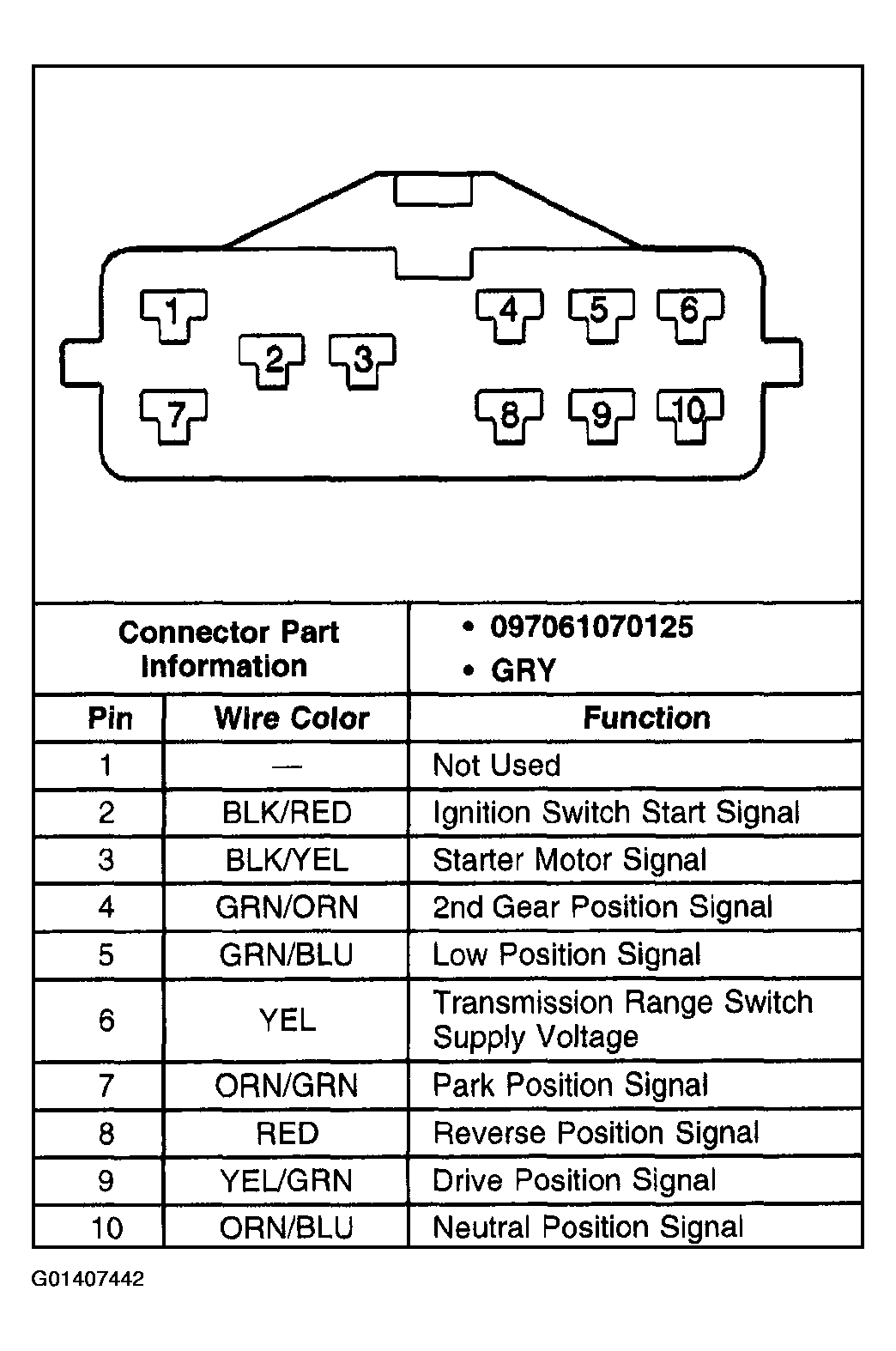

Fig 1: Transmission Range Switch
G01407442Courtesy of GENERAL MOTORS CORP.
