Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

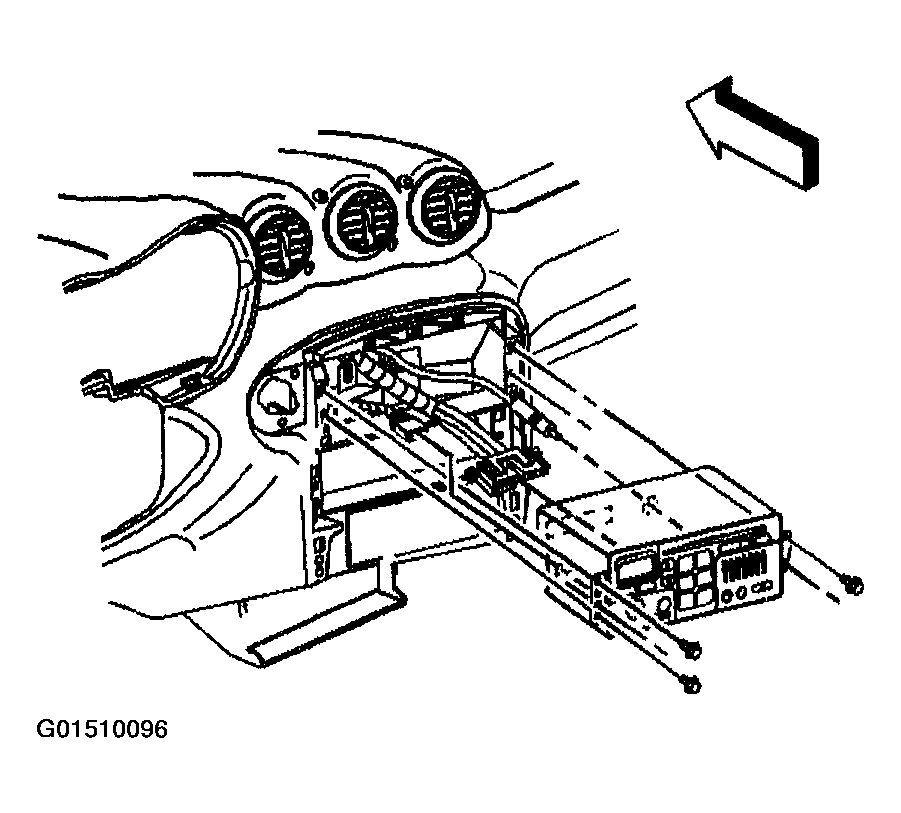

- Position the radio to the I/P.
- Connect the I/P wiring harness connectors and the antenna cable connector to the radio.
Important: If the radio locator tab is difficult to align to the I/P locator opening, pull the radio toward you and reposition the antenna cable.
- Align the radio locator tab to the I/P locator opening. Install the radio.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the radio screws.
Tighten
Tighten the radio screws to 2 N.m (18 lb in).
- Install the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (PONTIAC) or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (OLDSMOBILE) in Instrument Panel, Gages and Console.
- Perform the radio set up procedure for new and reinstalled radios. Refer to RADIO SETUP .
