A/C Compressor Relay Connector End View
A/C Compressor Relay Connector End View

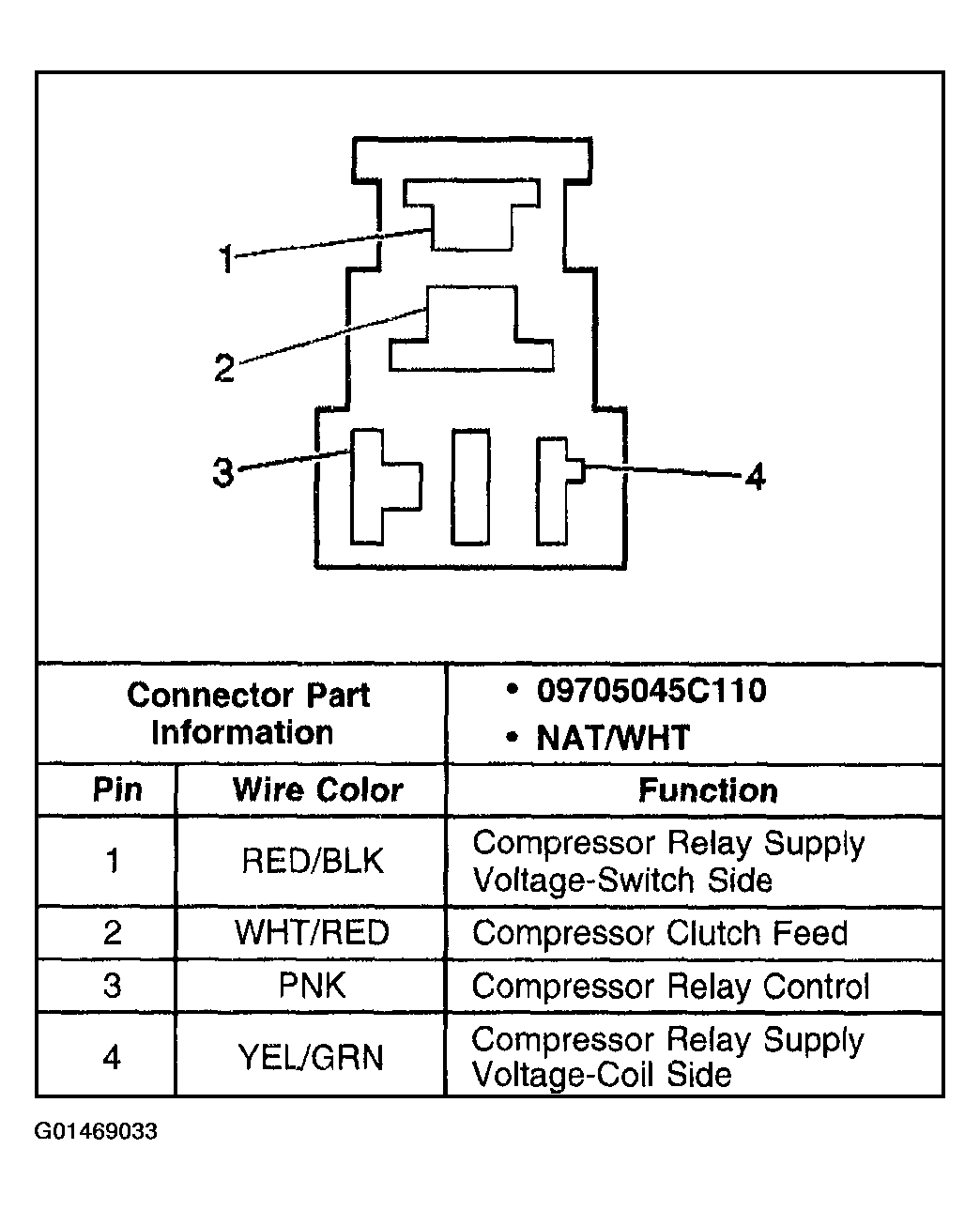

Fig 1: A/C Compressor Relay
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
