Removal Procedure

  1. Open rear door.
  2. Pull back rear carpet (2).
  3. Remove the rear tether anchor cover (1).

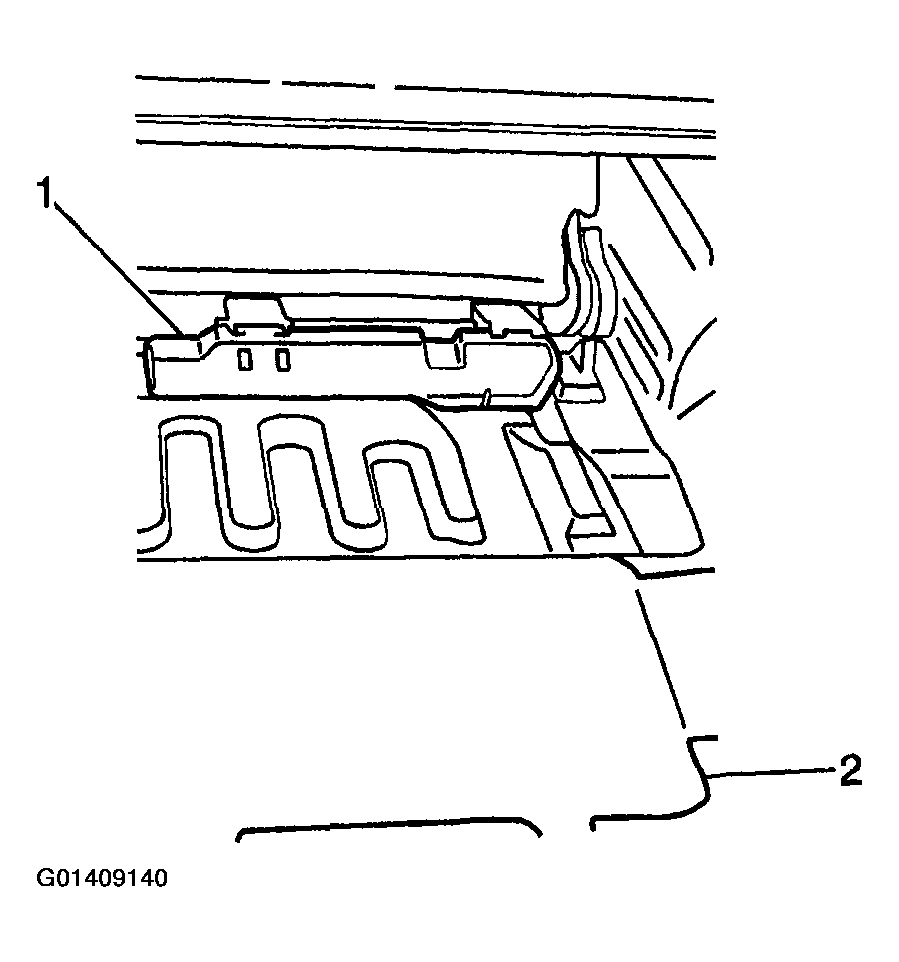

    Fig 1: Rear Tether Anchor Cover
    G01409140Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear tether anchor bolts (1).
  5. Remove the rear tether anchor (2) from vehicle.

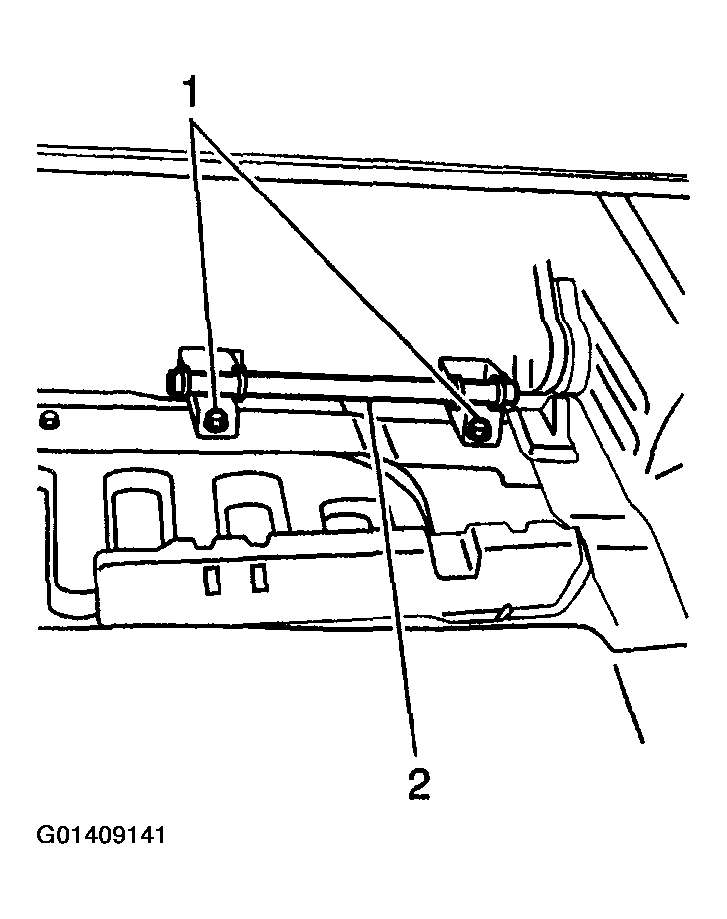

    Fig 2: Rear Tether Anchor Bolts
    G01409141Courtesy of GENERAL MOTORS CORP.
