Steering Gear Disassembled View

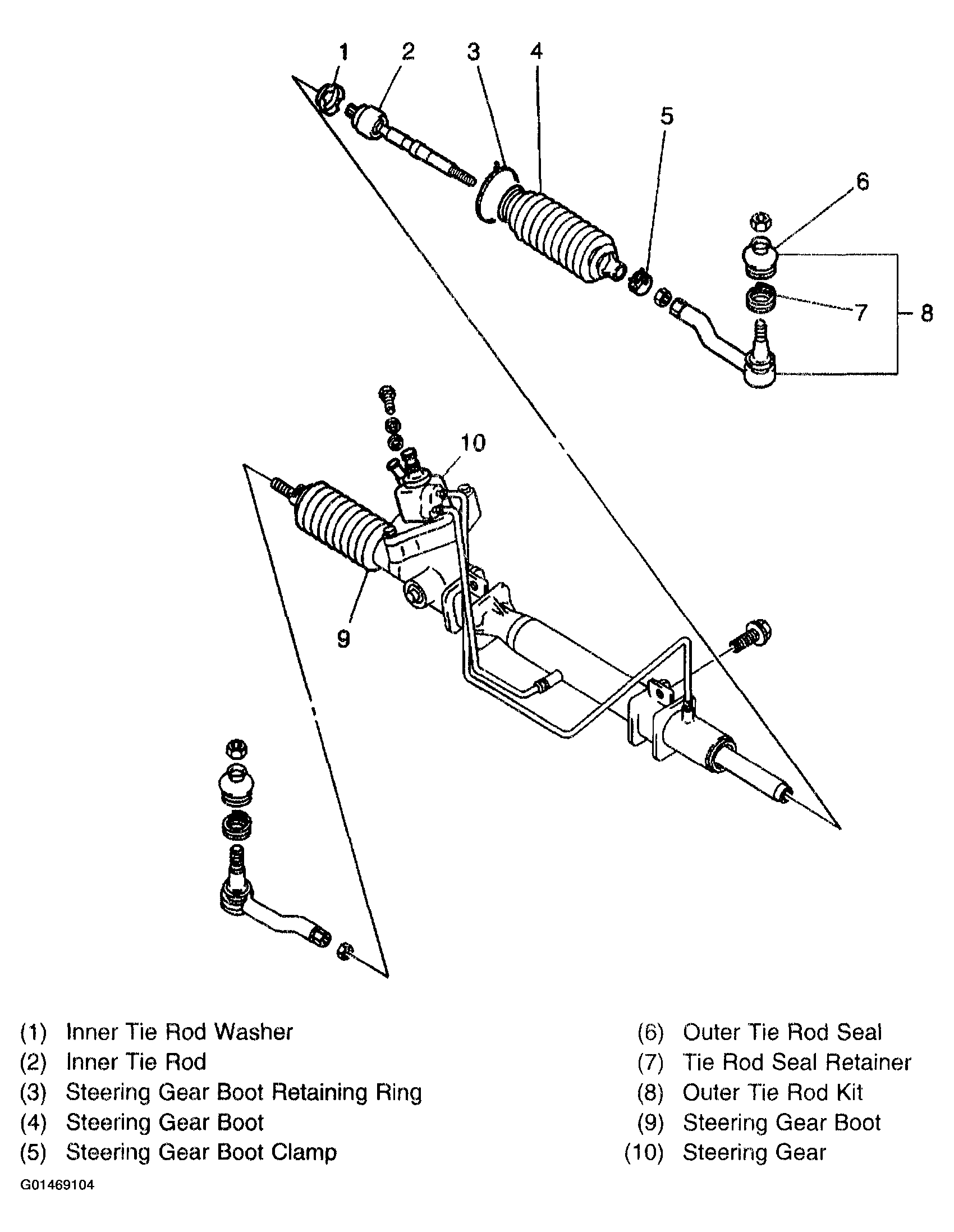

Fig 1: Disassembling View Of Steering Gear
G01469104Courtesy of GENERAL MOTORS CORP.
