TrailBlazer 4.2 S, RWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Shift Interlock System
›
Schematic and Routing Diagrams
›
Automatic Transmission Shift Lock Control Schematics
Automatic Transmission Shift Lock Control Schematics

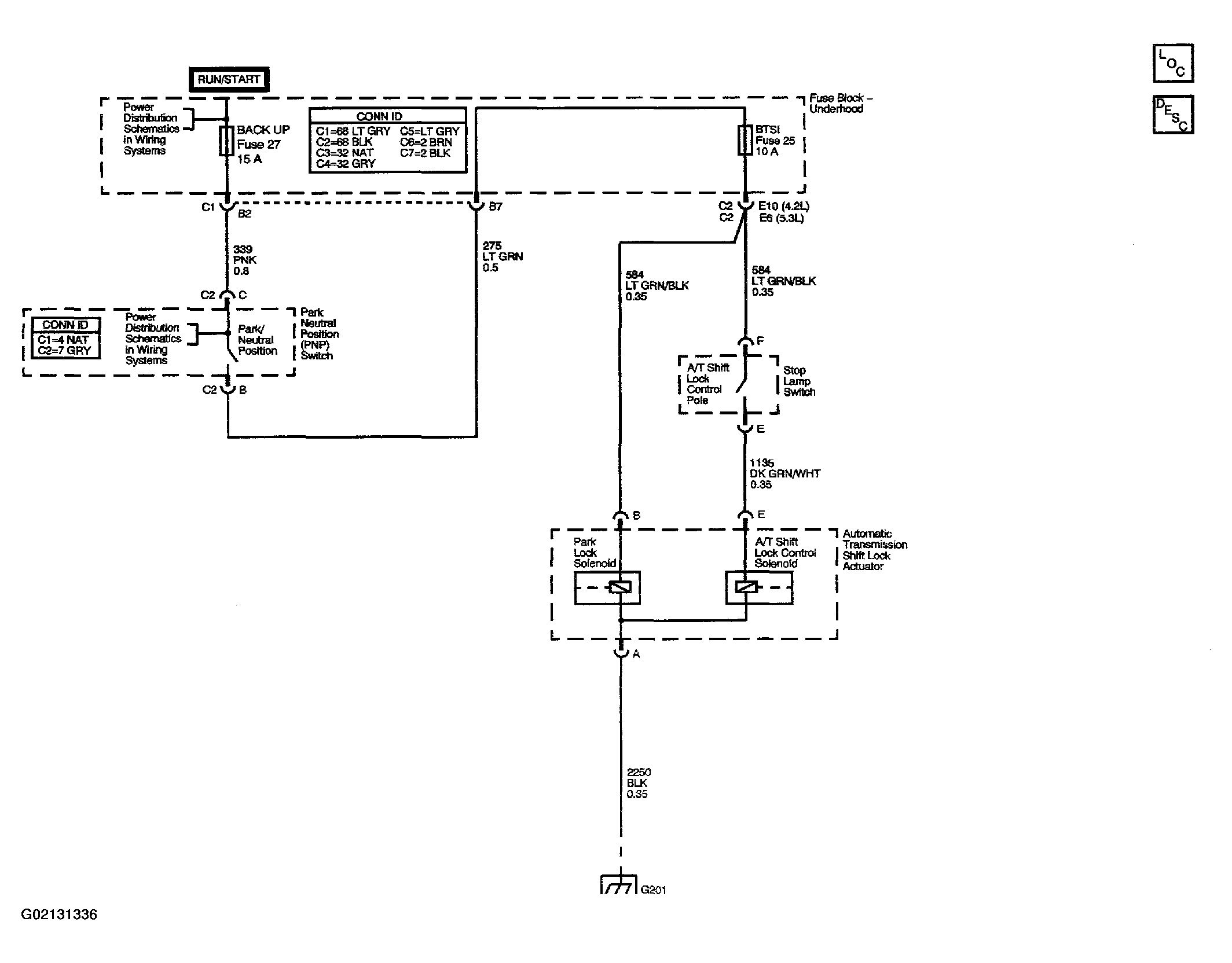

Fig 1: Automatic Transmission Shift Lock Control Schematic Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
