Diagnostic Procedure

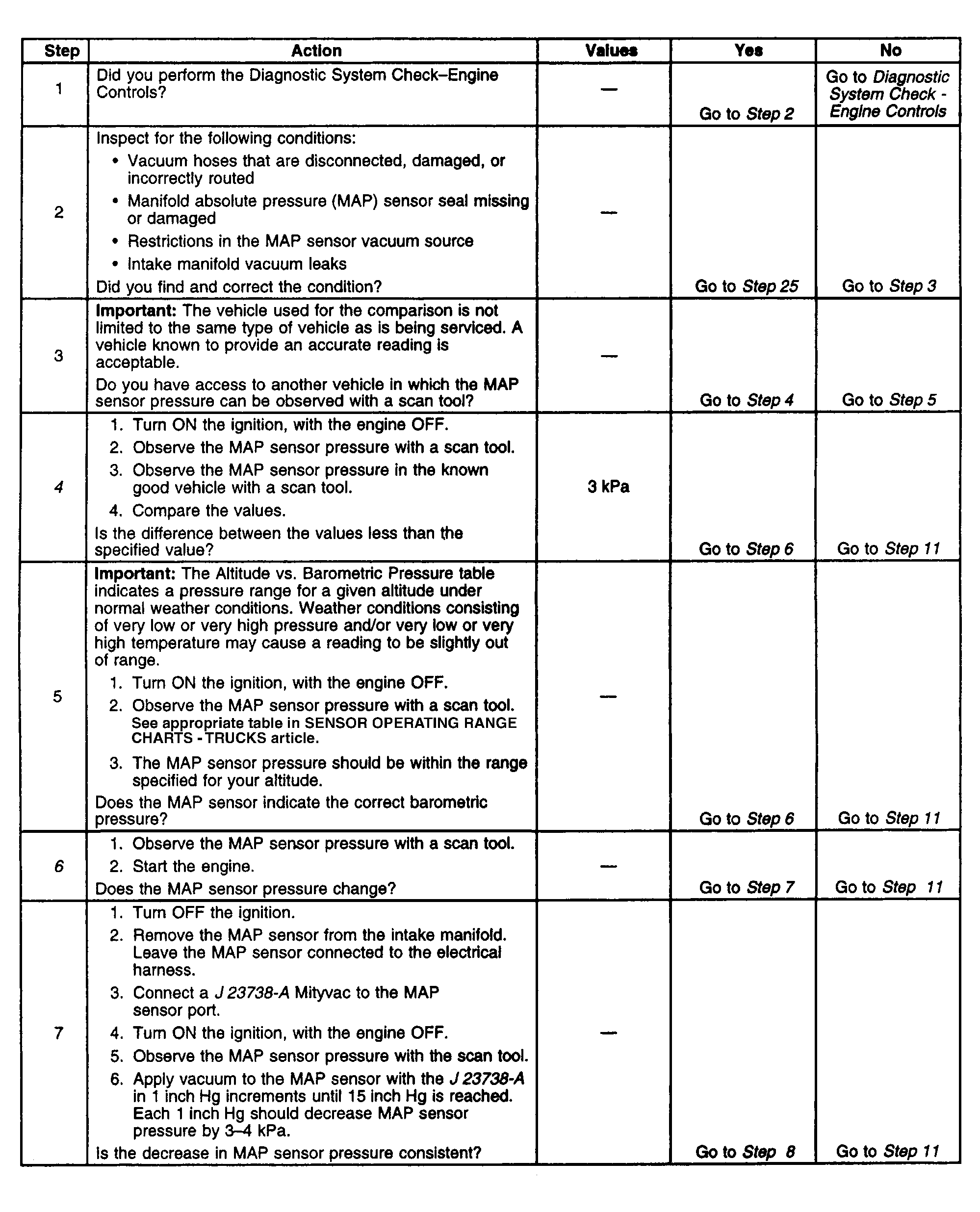

Fig 1: DTC P0106: MAP System Performance (Steps 1-7)
G00252650Courtesy of GENERAL MOTORS CORP.

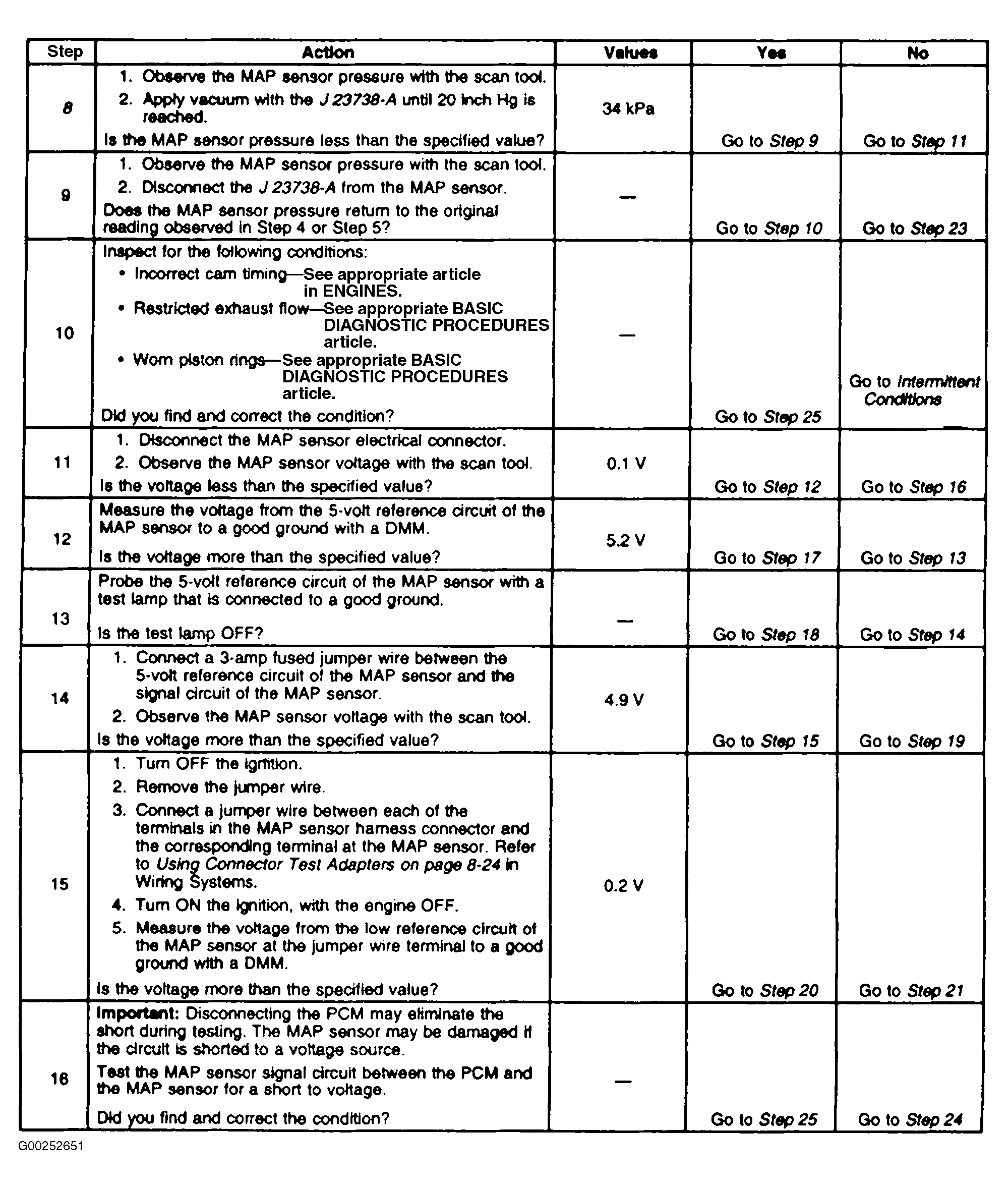

Fig 2: DTC P0106: MAP System Performance (Steps 8-16)
G00252651Courtesy of GENERAL MOTORS CORP.

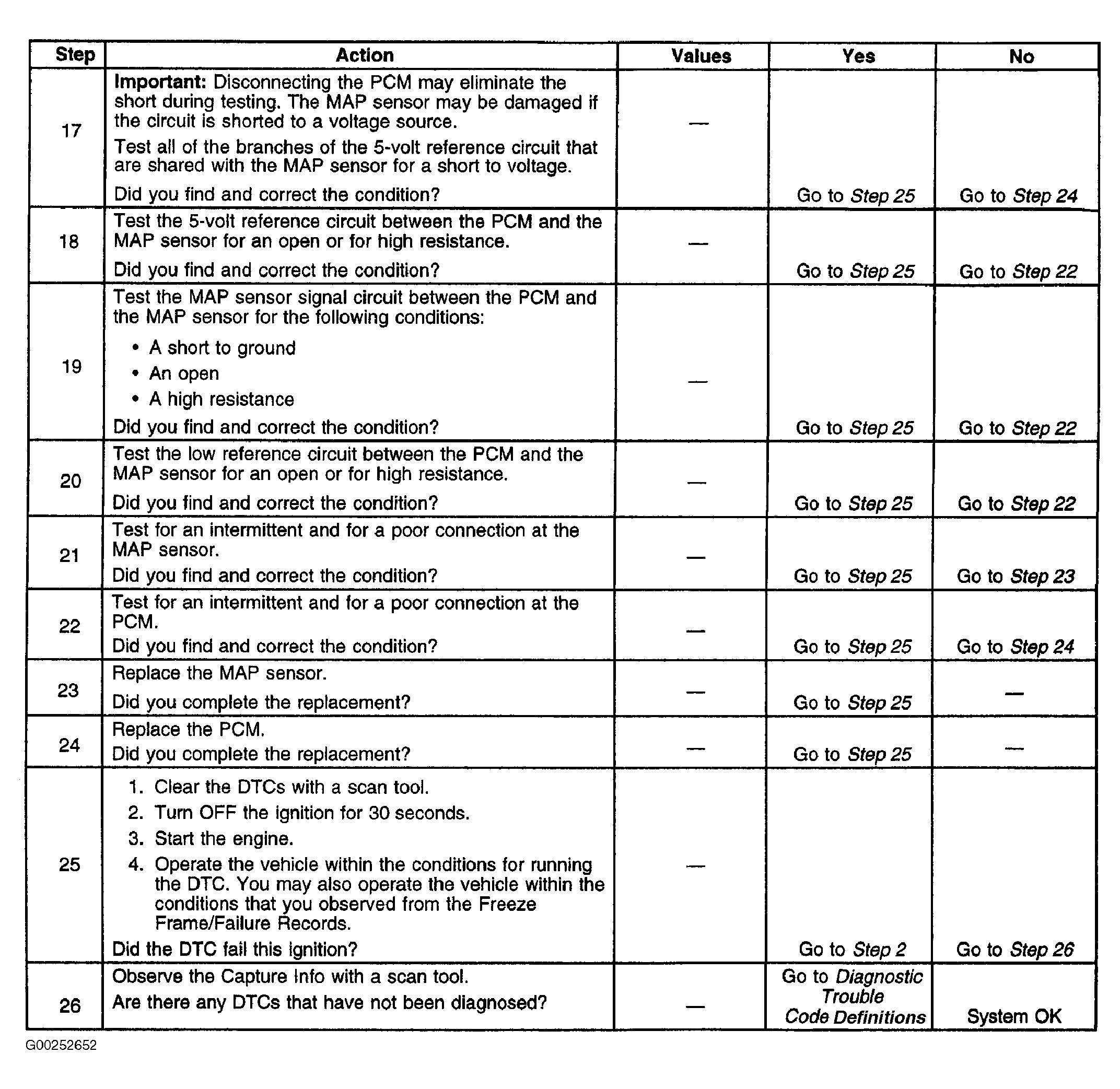

Fig 3: DTC P0106: MAP System Performance (Steps 17-26)
G00252652Courtesy of GENERAL MOTORS CORP.
