Cellular Communication Connector End Views

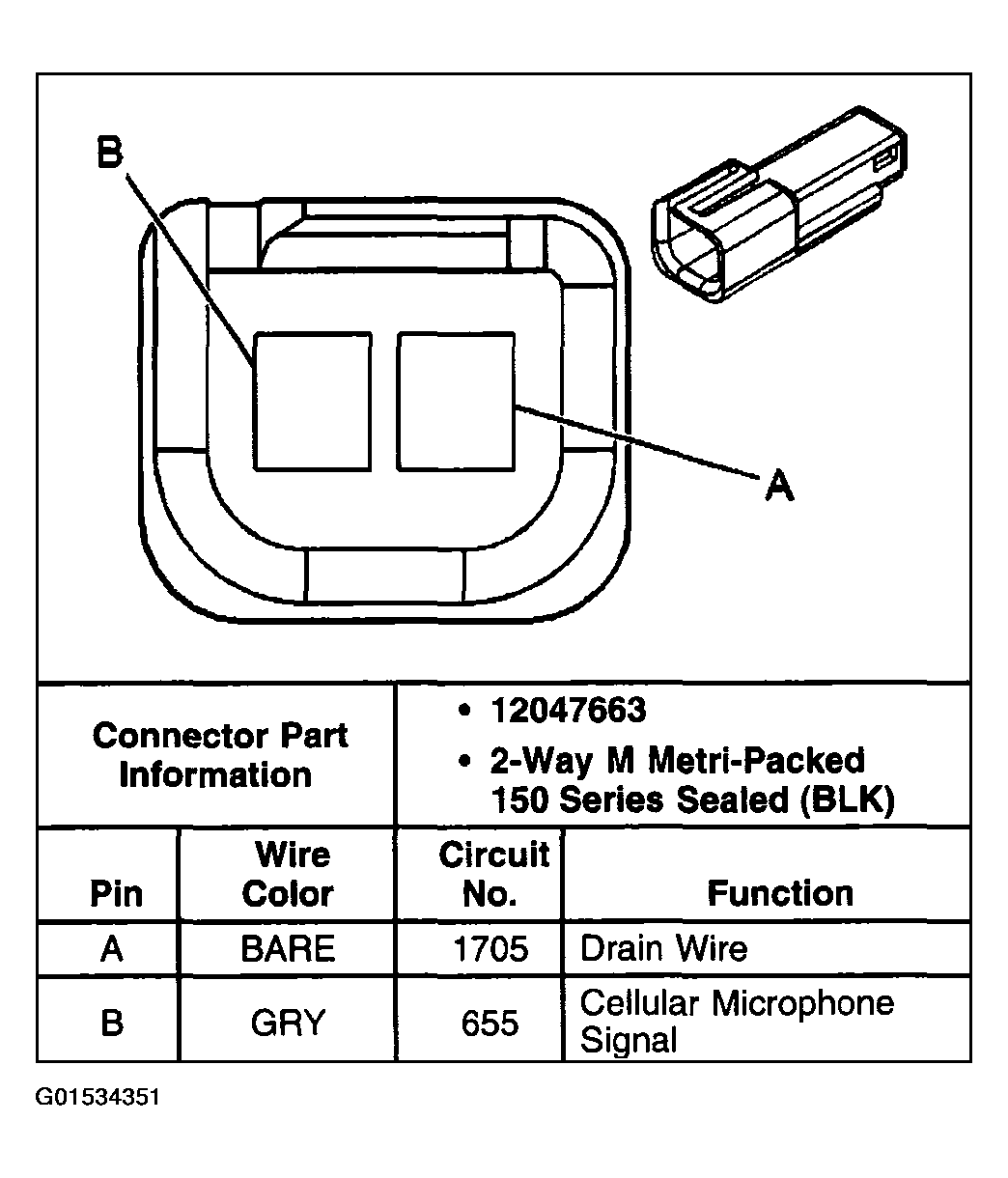

Fig 1: Cellular Microphone Connector End View
G01534351Courtesy of GENERAL MOTORS CORP.

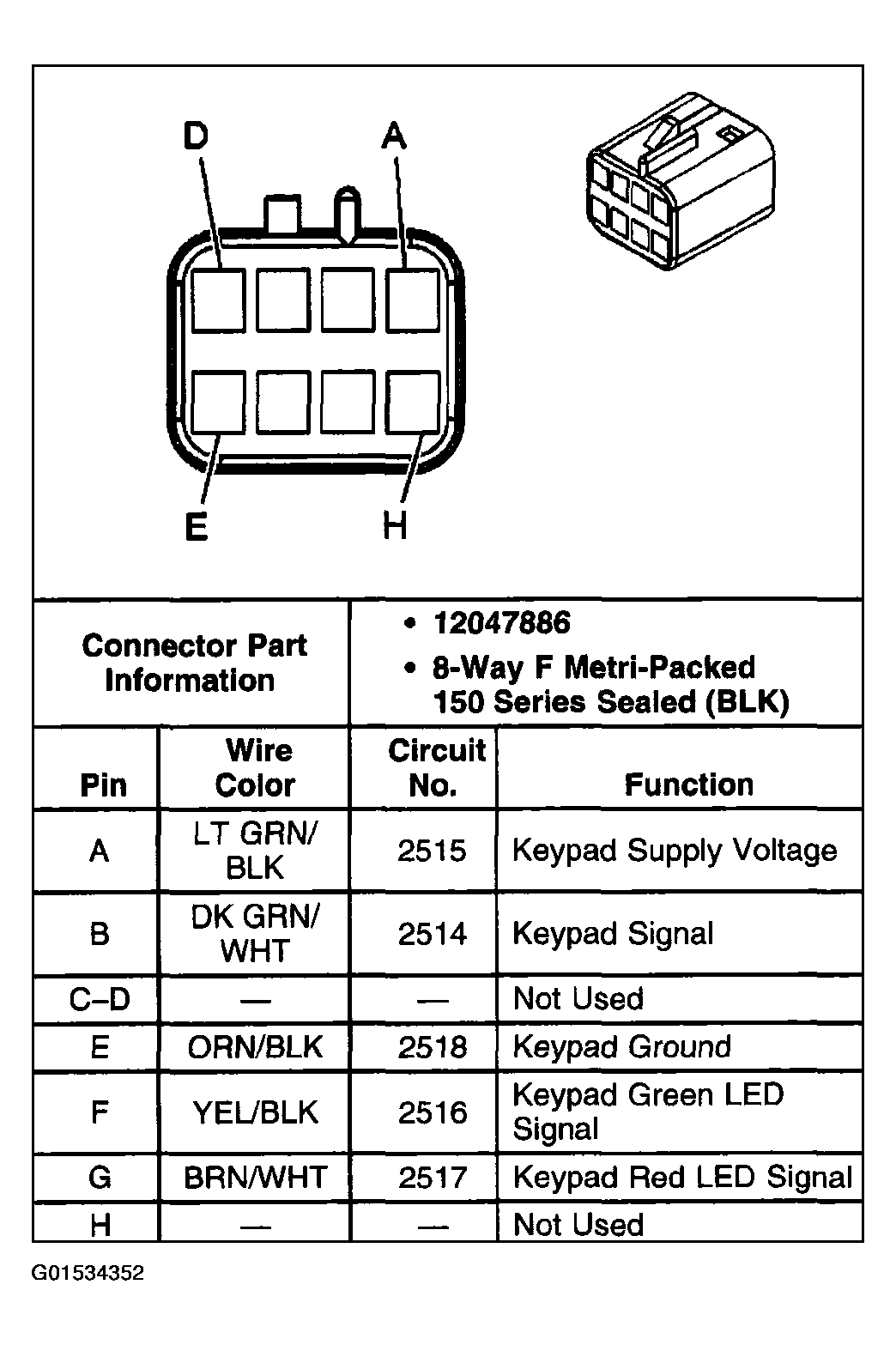

Fig 2: OnStar® Button Assembly Connector End View
G01534352Courtesy of GENERAL MOTORS CORP.
Fig 3: Vehicle Communication Interface Module (VCIM) C1 Connector End View
G01534353Courtesy of GENERAL MOTORS CORP.
Fig 4: Vehicle Communication Interface Module (VCIM) C2 Connector End View
G01534354Courtesy of GENERAL MOTORS CORP.
