Installation Procedure

  1. Install the OnStar® button assembly to the overhead console.
  2. Install the 2 screws that retain the OnStar® bezel to the overhead console.
  3. Reconnect the OnStar® electrical connectors.
  4. Install the overhead console. Refer to CONSOLE REPLACEMENT -- OVERHEAD (SINGLE) or CONSOLE REPLACEMENT -- OVERHEAD (DUAL) or CONSOLE REPLACEMENT -- OVERHEAD (CF5) in Interior Trim.
  5. Snap the OnStar® button assembly back into place in the overhead console.

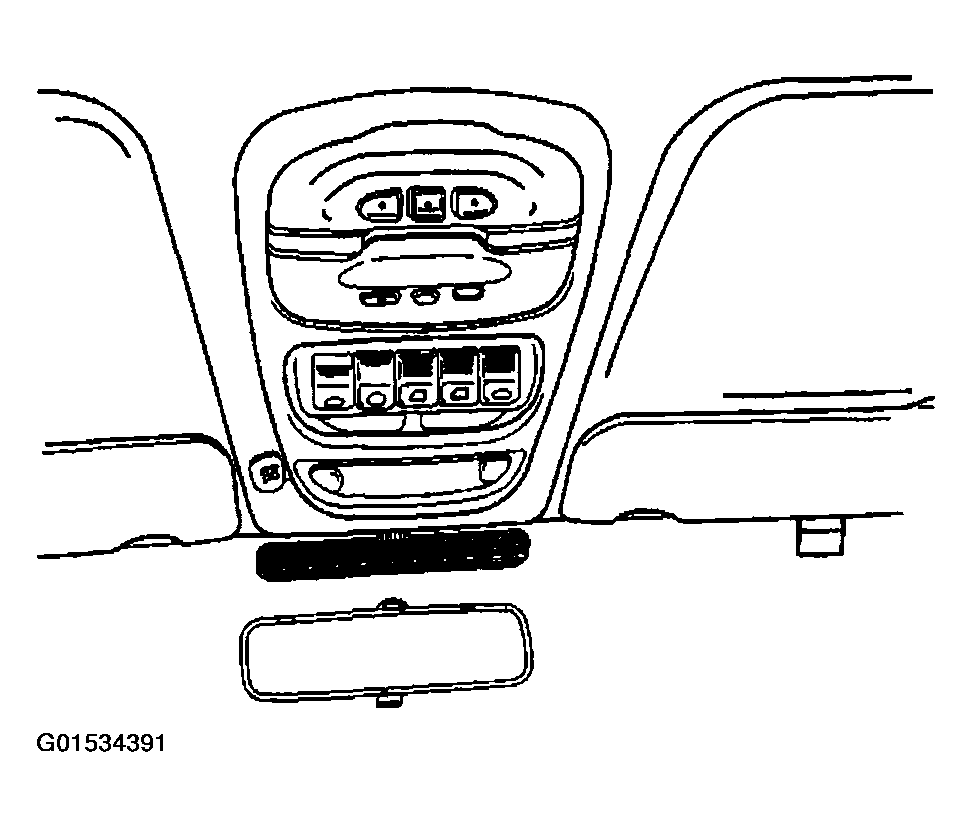

    Fig 1: Installing Onstar® Button Assembly To Overhead Console
    G01534391Courtesy of GENERAL MOTORS CORP.
