Home › Chevrolet › 2003 › Venture Base, Van Cargo Extended › Repair and Diagnosis › Body & Frame › Windows › Stationary Window System › Component Locator › Stationary Windows Connector End Views

Stationary Windows Connector End Views

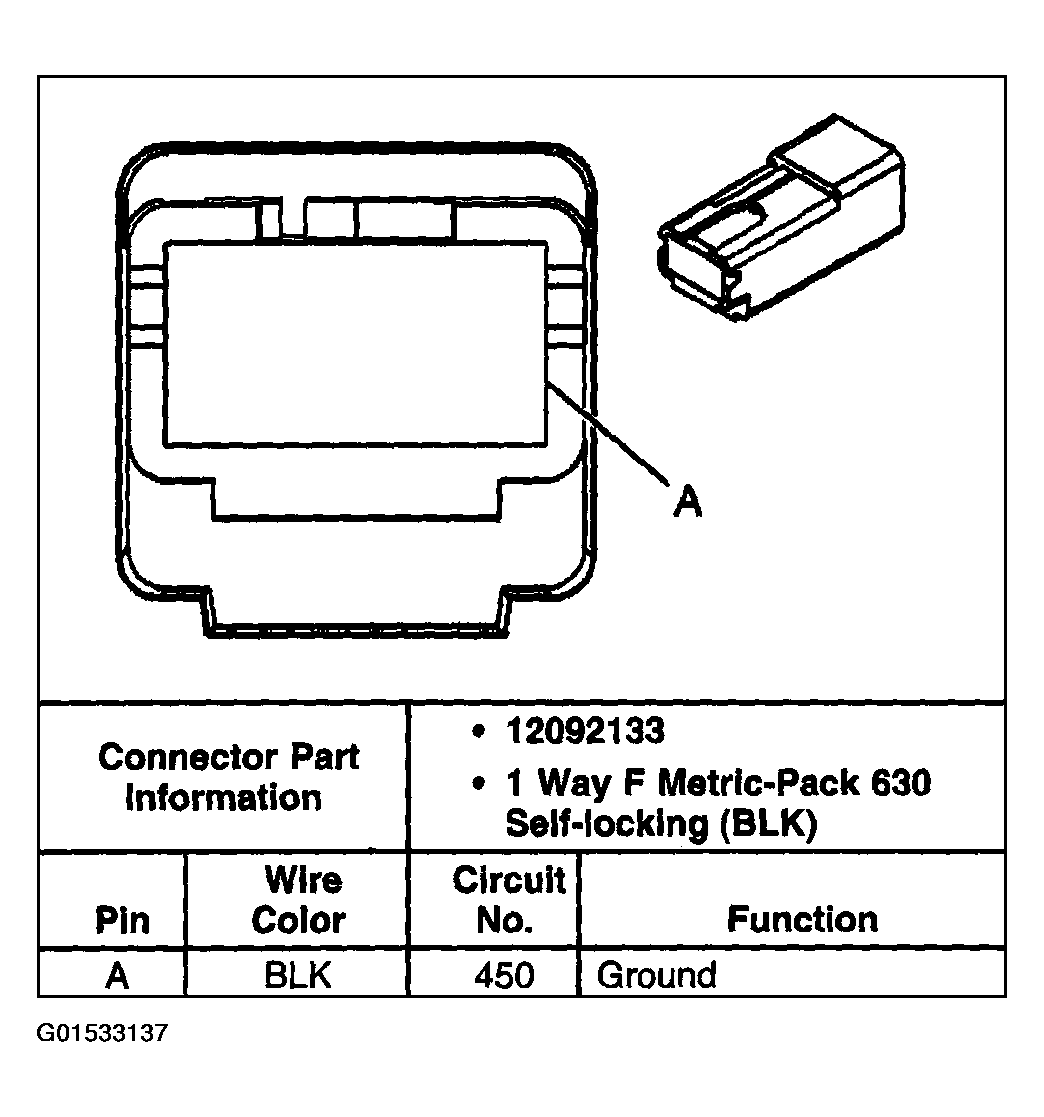

Fig 1: Rear Window Defogger Grid (C1) Connector End View
G01533137Courtesy of GENERAL MOTORS CORP.

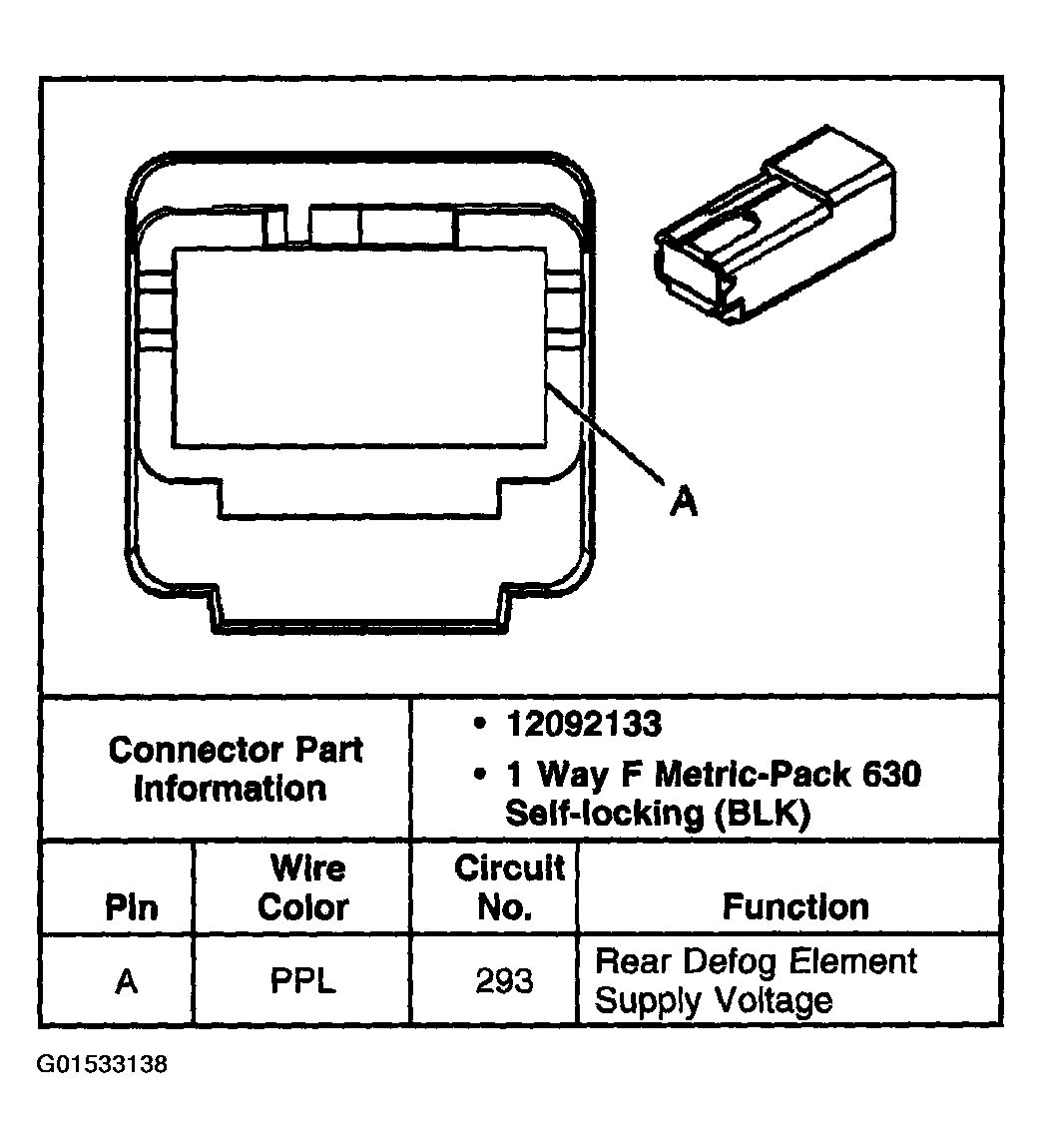

Fig 2: Rear Window Defogger Grid (C2) Connector End View
G01533138Courtesy of GENERAL MOTORS CORP.
