Schematic and Routing Diagrams

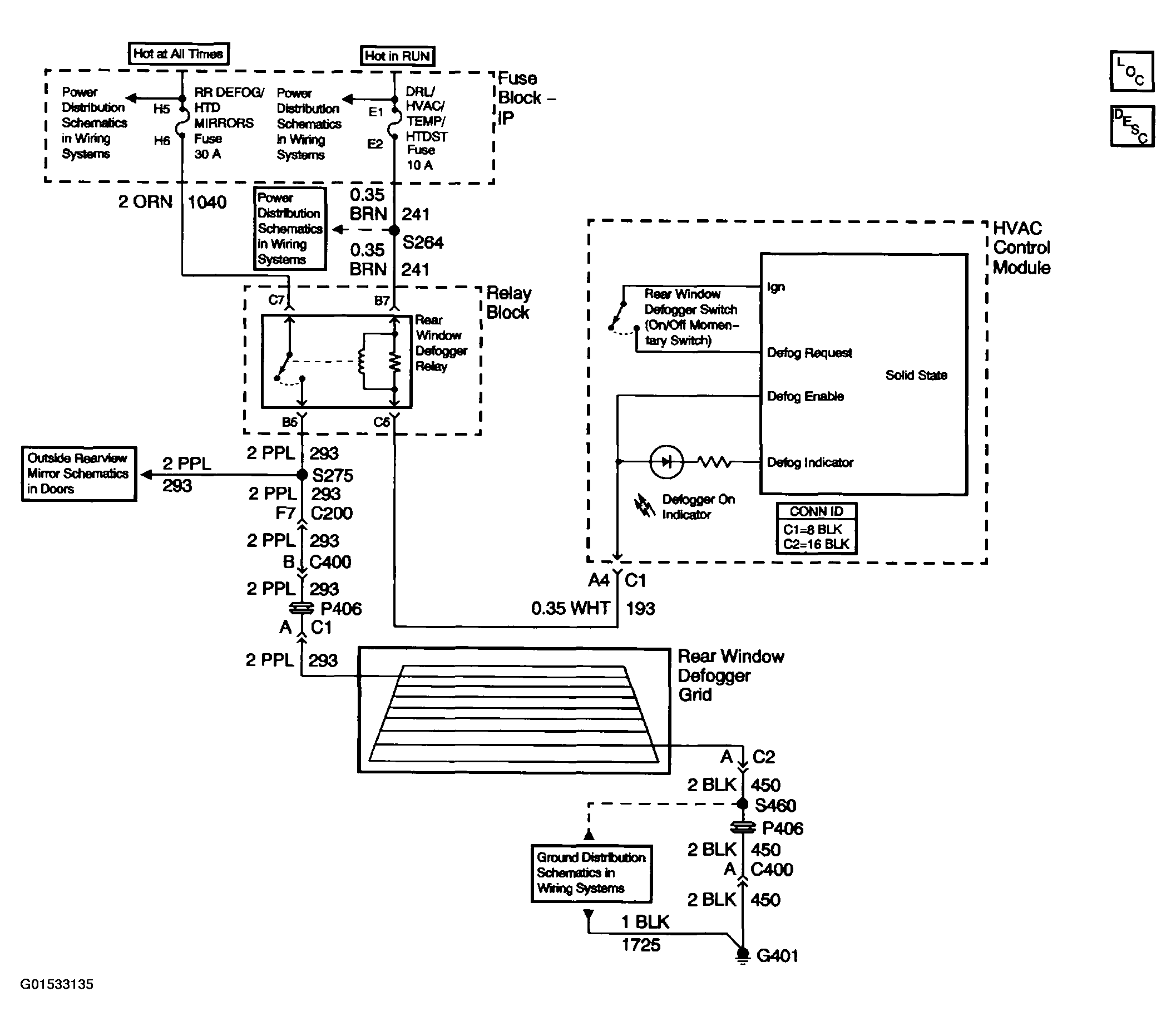

Fig 1: Defogger Schematic Diagram
G01533135Courtesy of GENERAL MOTORS CORP.
