Repair and Diagnosis
›
Brakes
›
Traction Control
›
Antilock Brake System
›
Component Locator
›
ABS Connector End Views
ABS Connector End Views

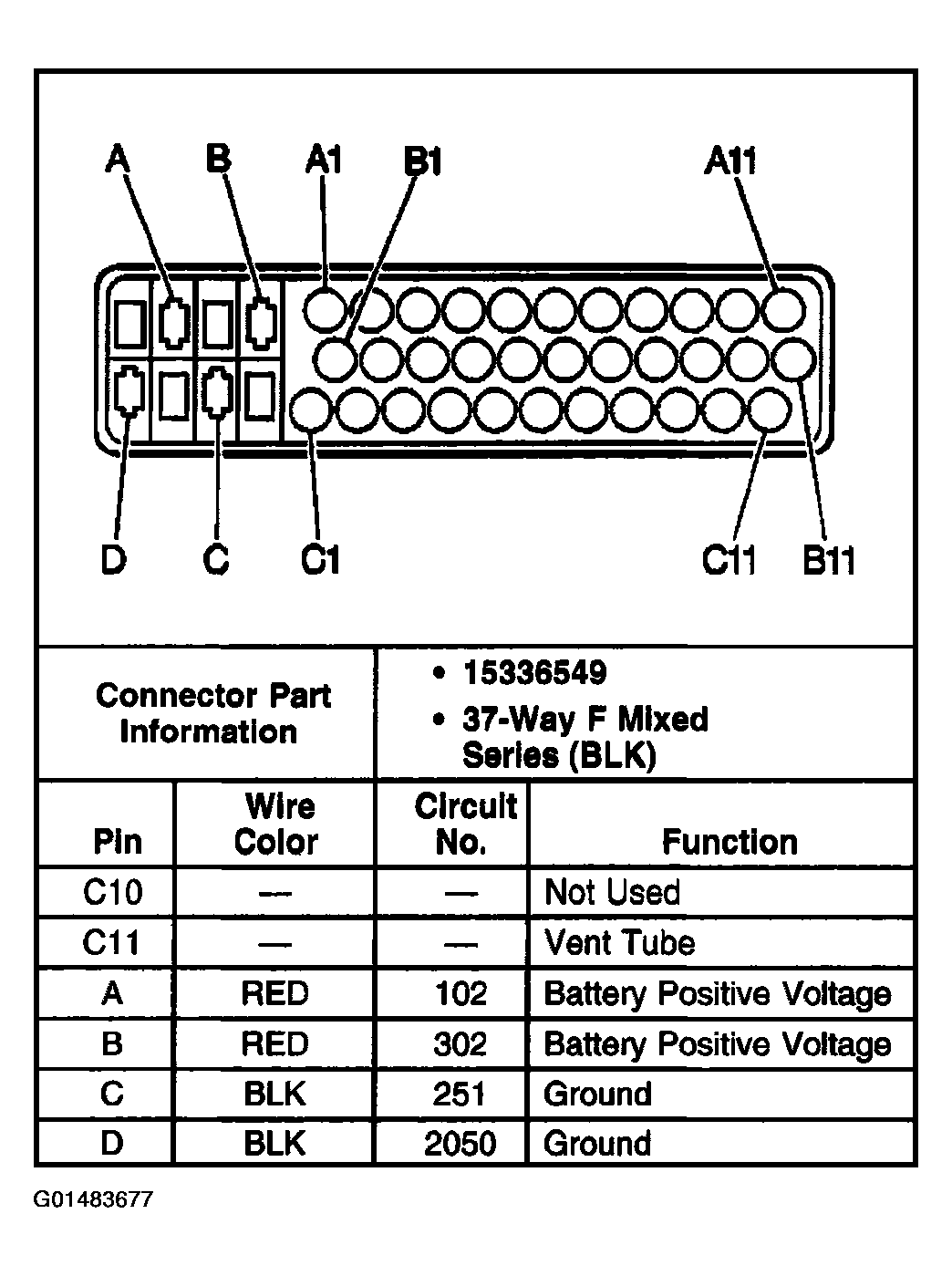

Fig 1: Electronic Brake Control Module (EBCM) Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

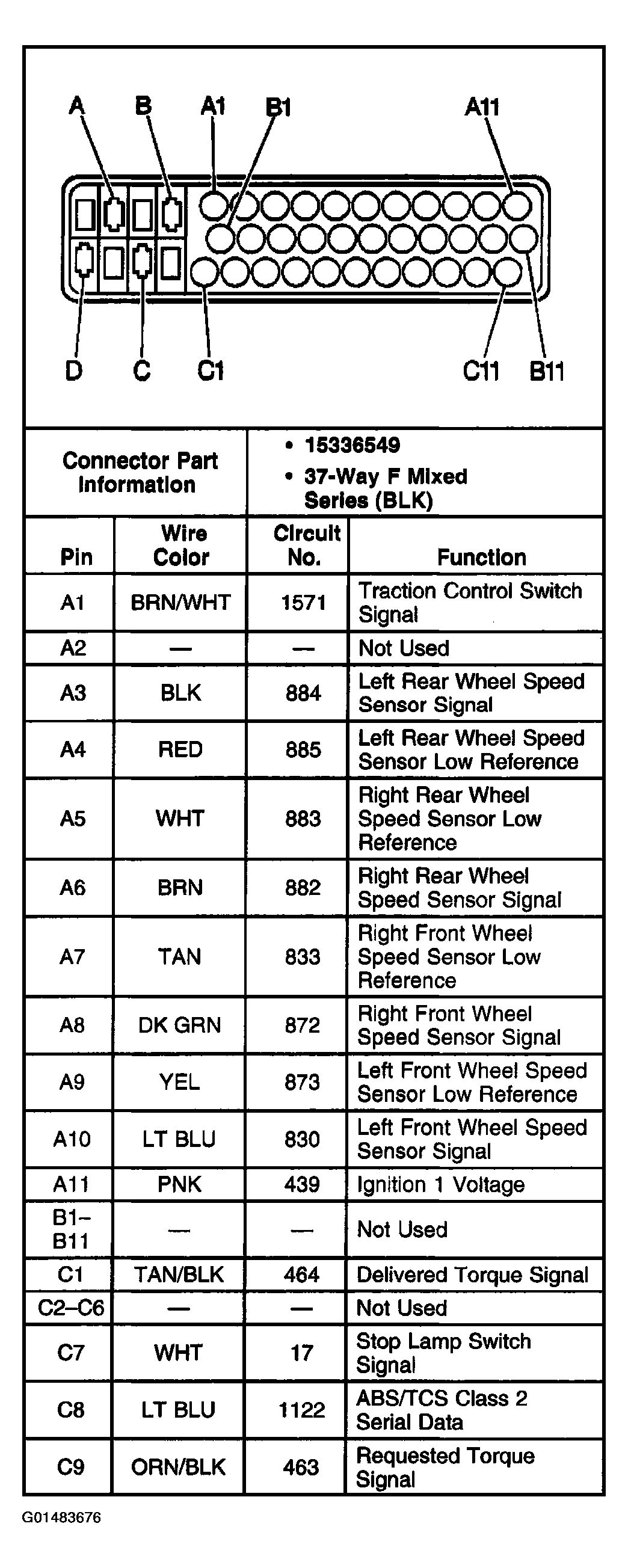

Fig 2: Electronic Brake Control Module (EBCM) Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

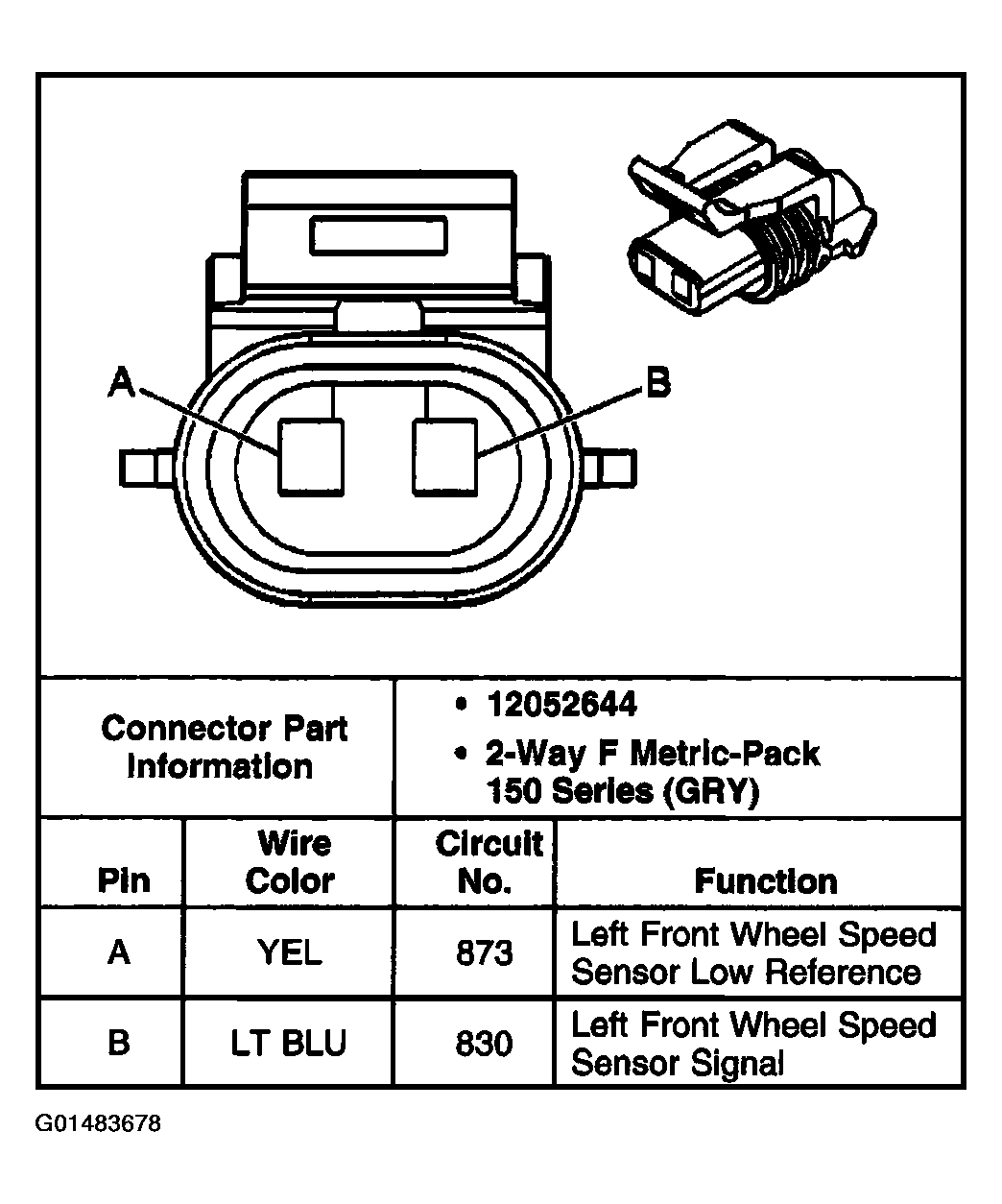

Fig 3: Wheel Speed Sensor (WSS)-LF Connector End View
Courtesy of GENERAL MOTORS CORP.

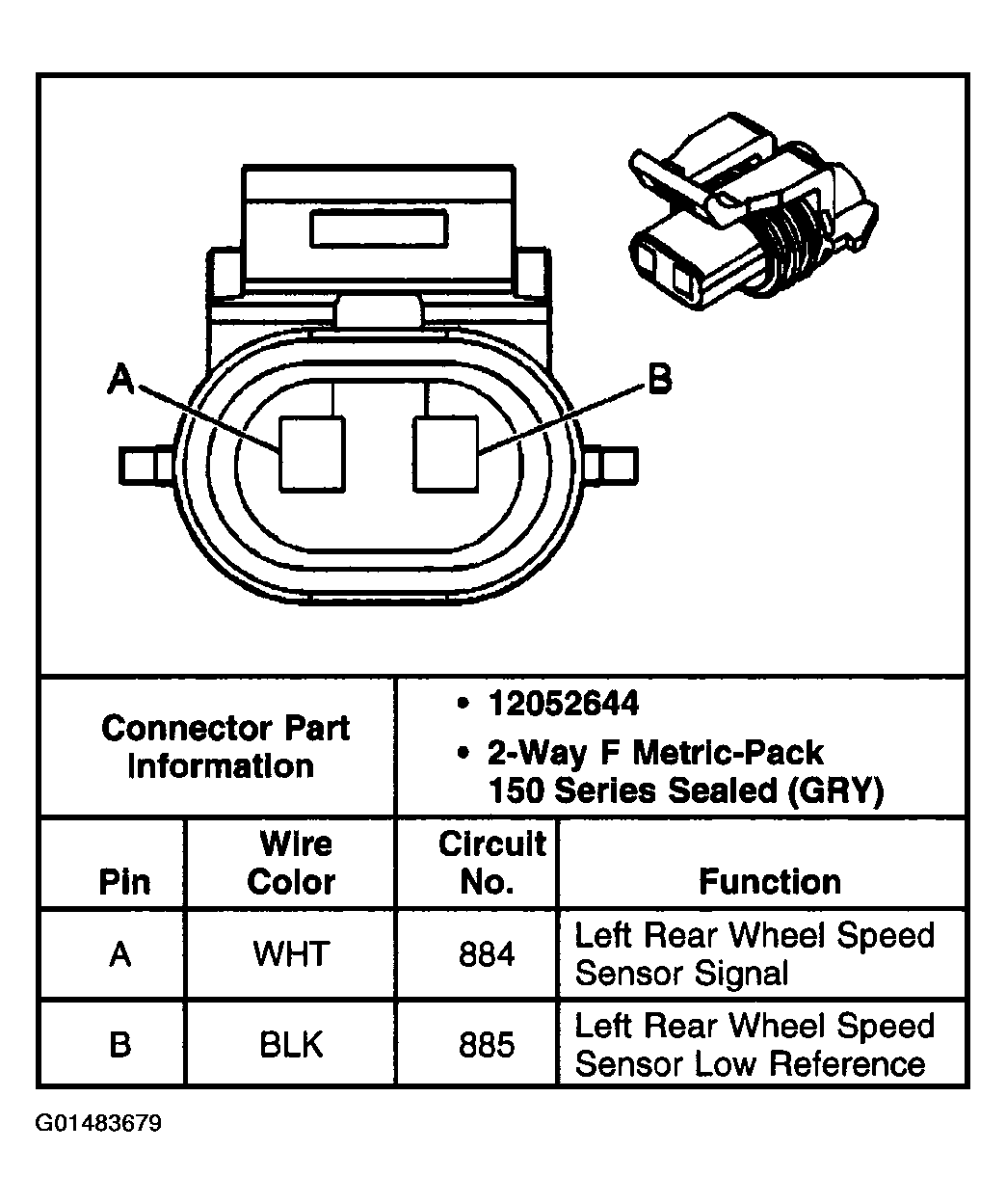

Fig 4: Wheel Speed Sensor (WSS)-LR Connector End View
Courtesy of GENERAL MOTORS CORP.

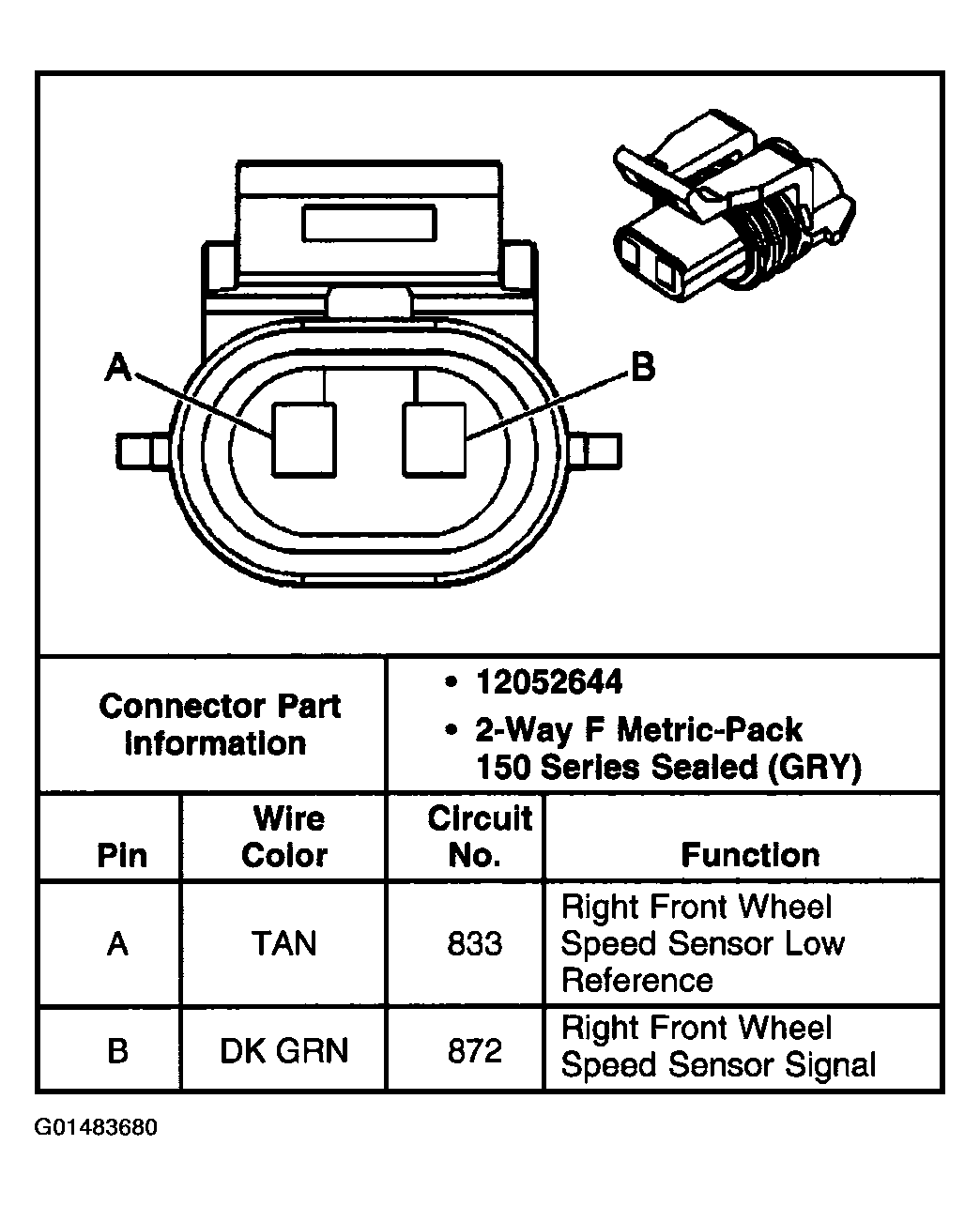

Fig 5: Wheel Speed Sensor (WSS)-RF Connector End View
Courtesy of GENERAL MOTORS CORP.

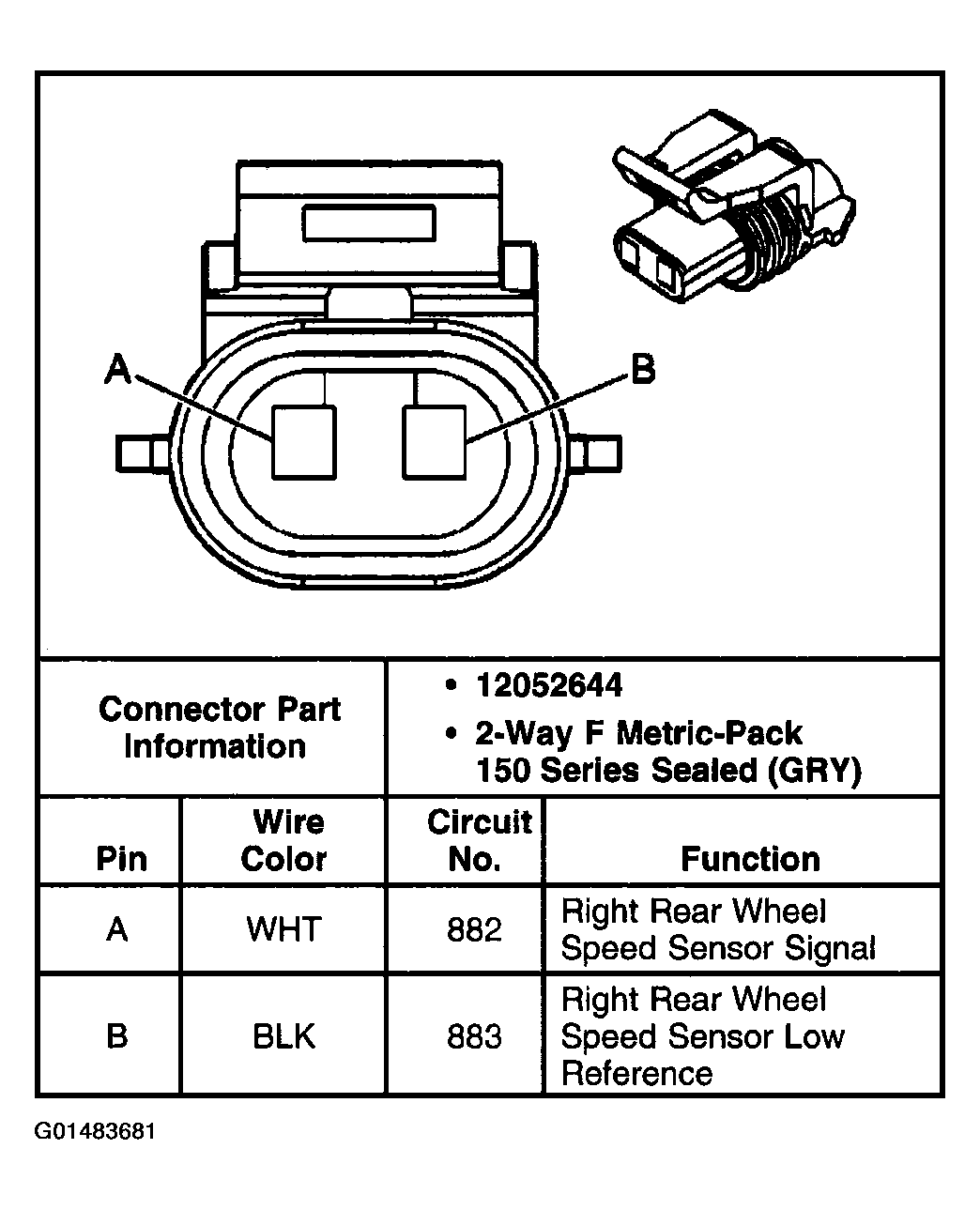

Fig 6: Wheel Speed Sensor (WSS)-RR Connector End View
Courtesy of GENERAL MOTORS CORP.
