Installation Procedure

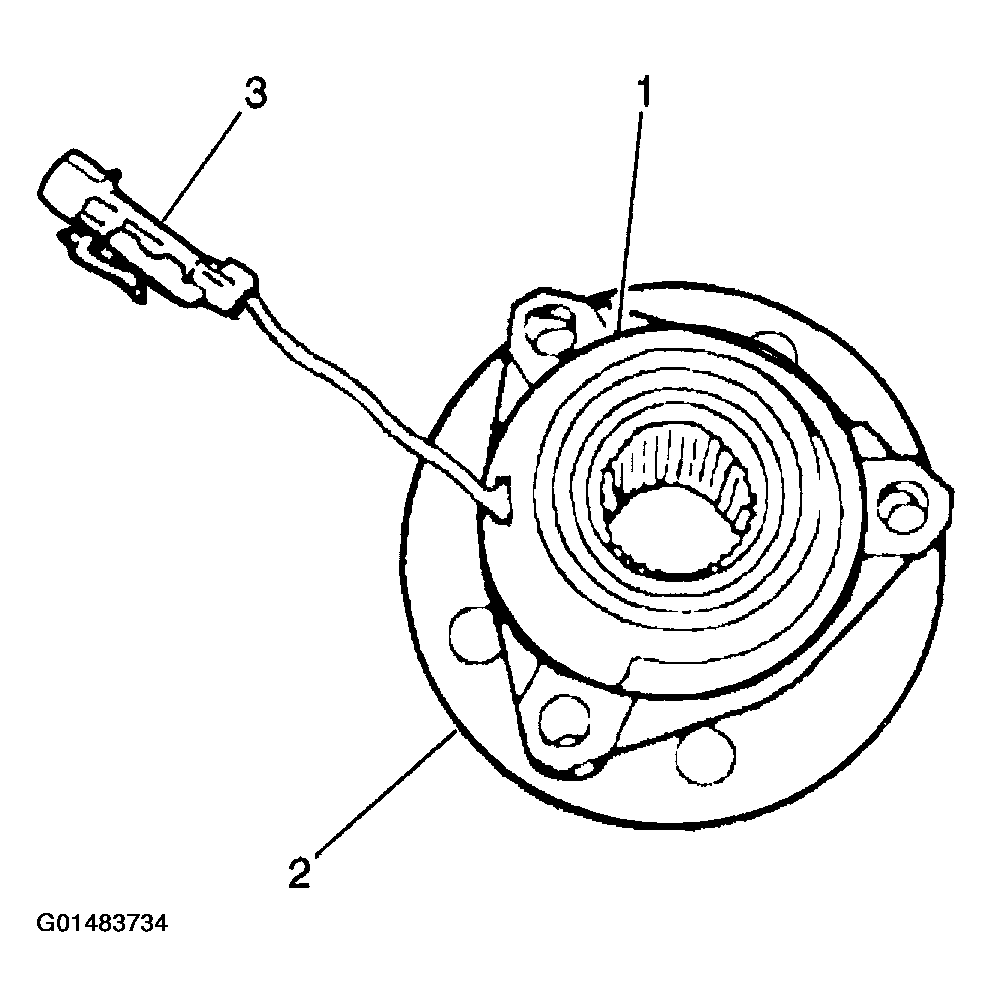

- Install the hub and bearing assembly (2) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT
in Front Suspension.
Courtesy of GENERAL MOTORS CORP.

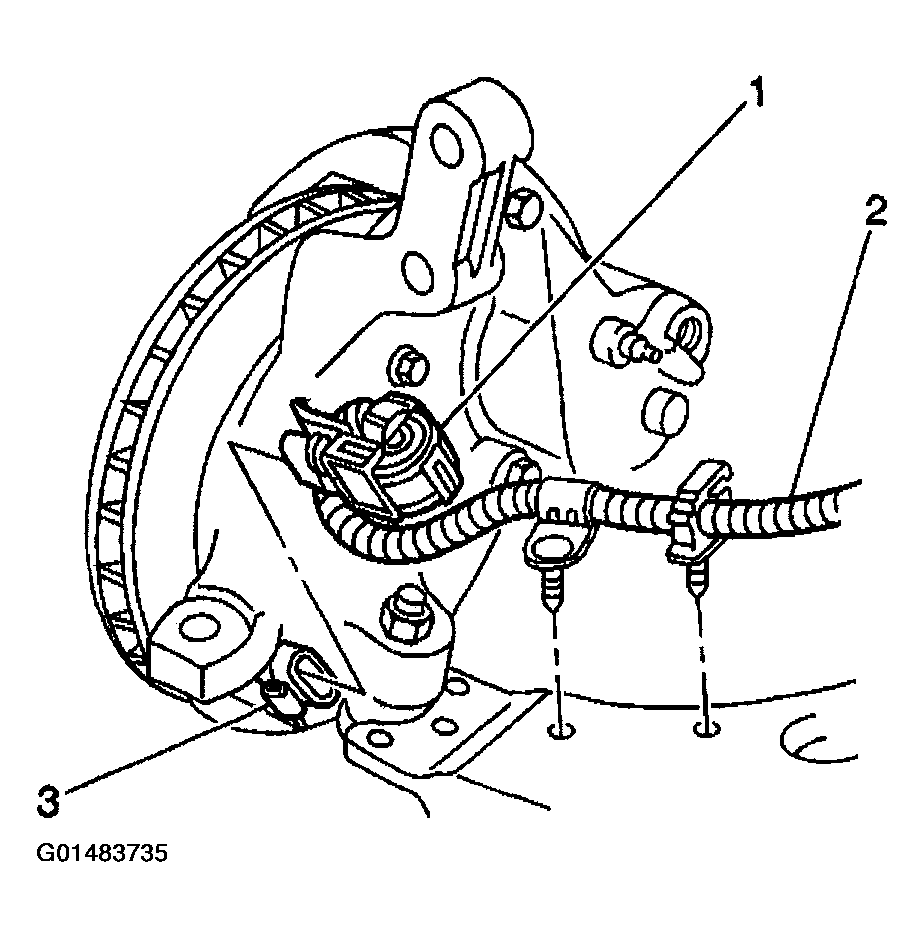

- Install the front wheel speed sensor jumper harness electrical connector (1) to front wheel speed sensor connector (3).
- Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
in Tires and Wheels.
- Lower the vehicle.
- Turn the ignition switch to the RUN position with the engine off.
- Perform Diagnostic system check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS
.
Courtesy of GENERAL MOTORS CORP.
