Auto Level Control (ALC) Air Compressor-Without Inflator Connector End View
Auto Level Control (ALC) Air Compressor-Without Inflator Connector End View

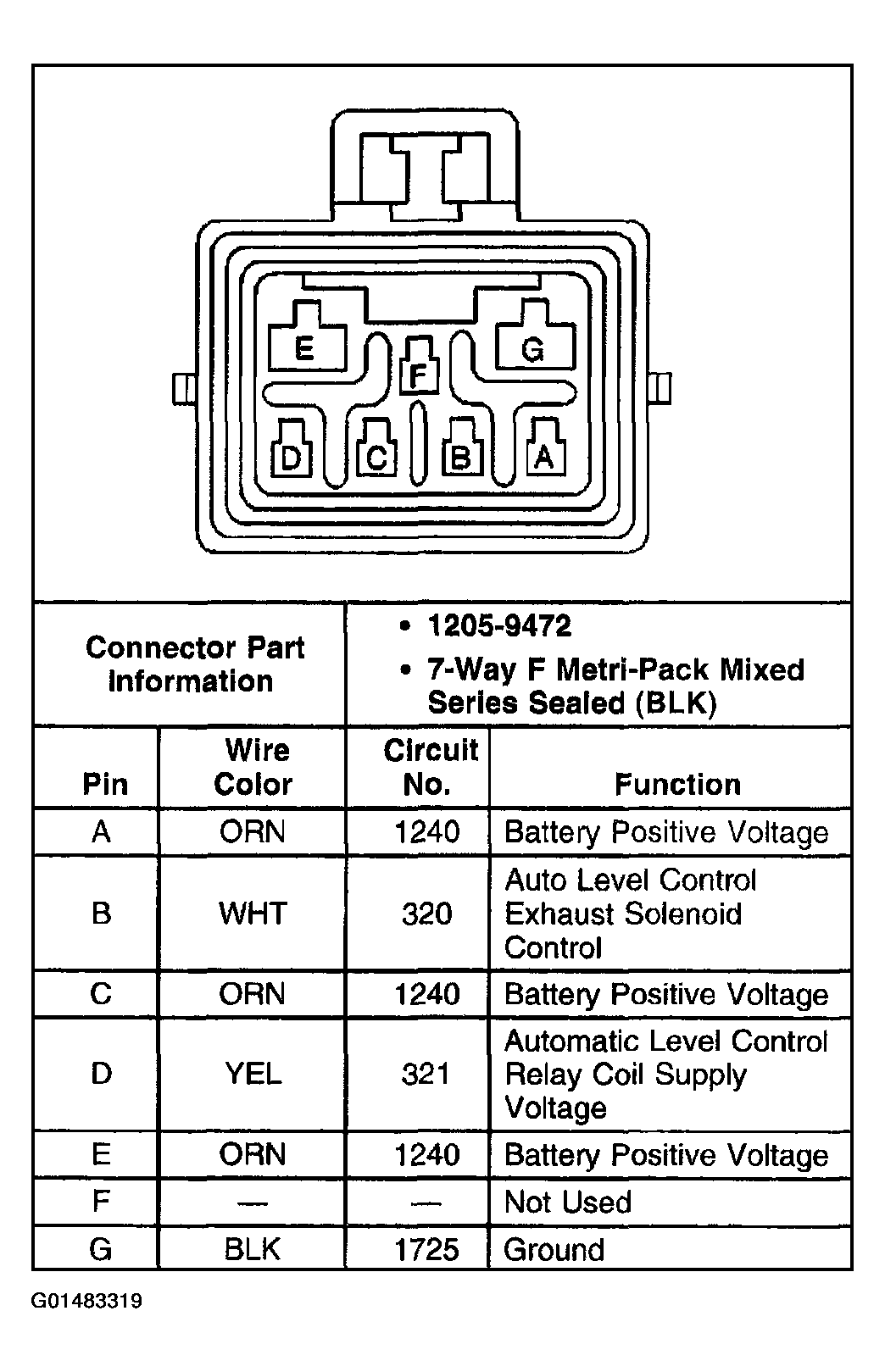

Fig 1: Auto Level Control (ALC) Air Compressor-Without Inflator Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
