Fuse Block Underhood Connector End View

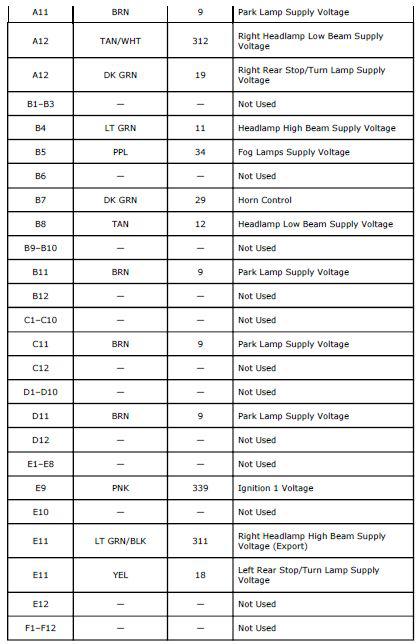

Fig 1: Fuse Block Underhood Connector End View 1 of 9

Courtesy of GENERAL MOTORS CORP.

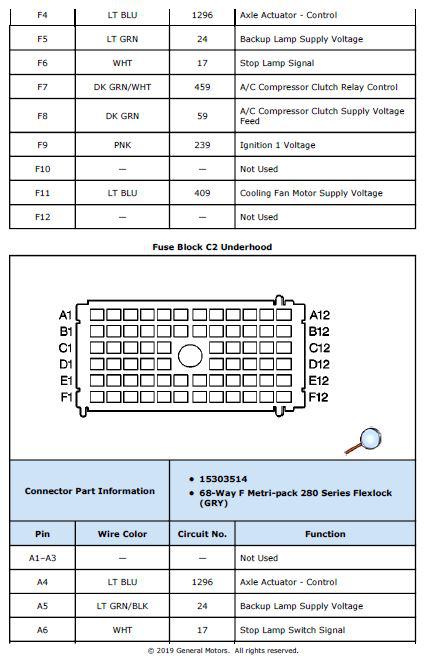

Fig 2: Fuse Block Underhood Connector End View 2 of 9

Courtesy of GENERAL MOTORS CORP.

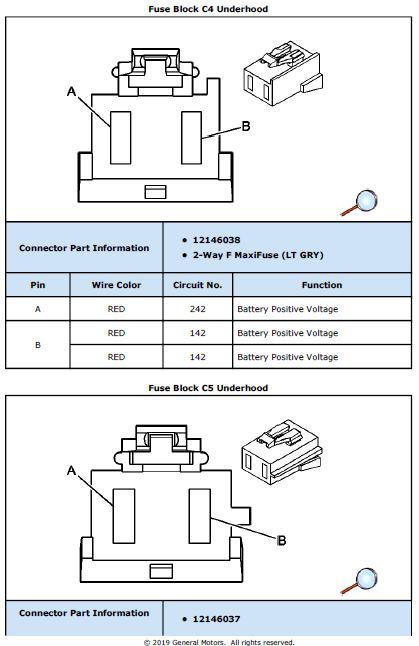

Fig 3: Fuse Block Underhood Connector End View 3 of 9

Courtesy of GENERAL MOTORS CORP.

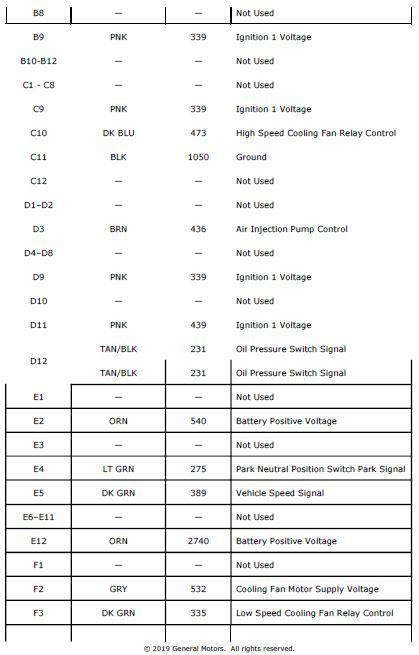

Fig 4: Fuse Block Underhood Connector End View 4 of 9

Courtesy of GENERAL MOTORS CORP.

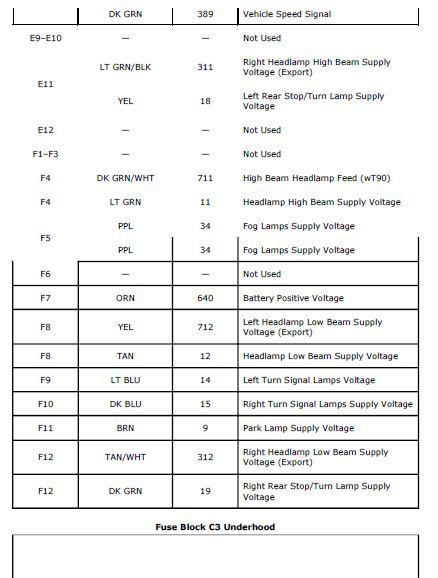

Fig 5: Fuse Block Underhood Connector End View 5 of 9

Courtesy of GENERAL MOTORS CORP.

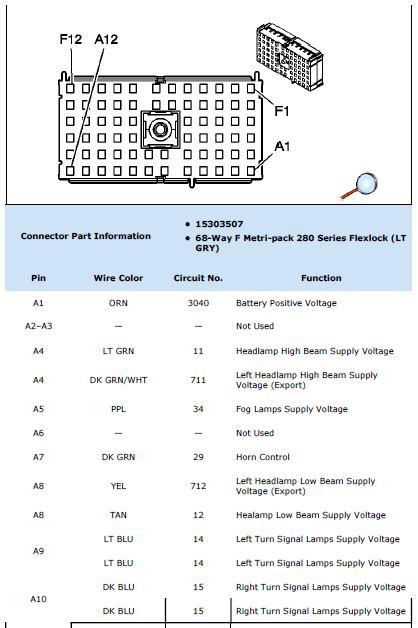

Fig 6: Fuse Block Underhood Connector End View 6 of 9

Courtesy of GENERAL MOTORS CORP.

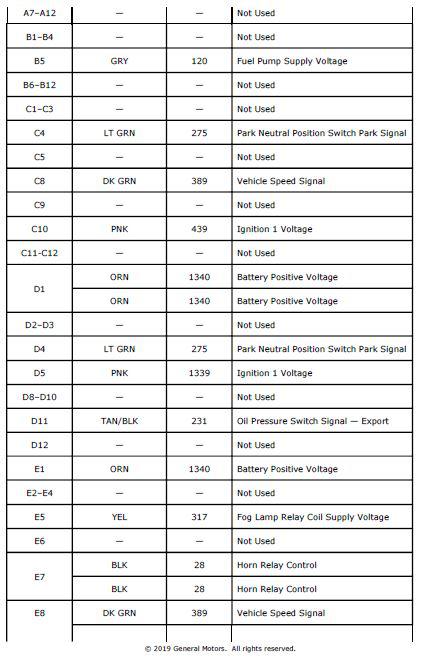

Fig 7: Fuse Block Underhood Connector End View 7 of 9

Courtesy of GENERAL MOTORS CORP.

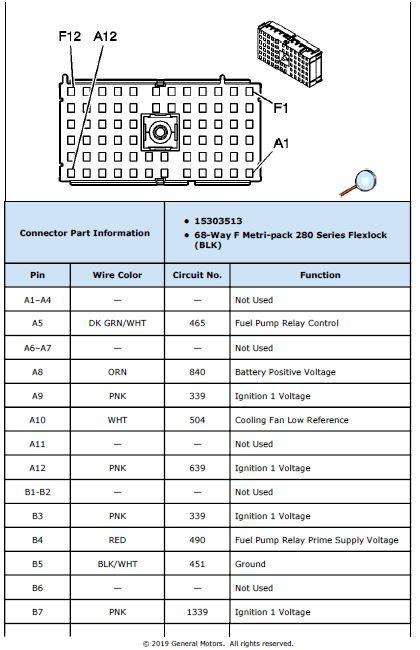

Fig 8: Fuse Block Underhood Connector End View 8 of 9

Courtesy of GENERAL MOTORS CORP.

Fig 9: Fuse Block Underhood Connector End View 9 of 9

Courtesy of GENERAL MOTORS CORP.
