Venture Base, Van Cargo Extended
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End View
›
HVAC Control Module - Auxiliary Connector End View C1
HVAC Control Module - Auxiliary Connector End View C1

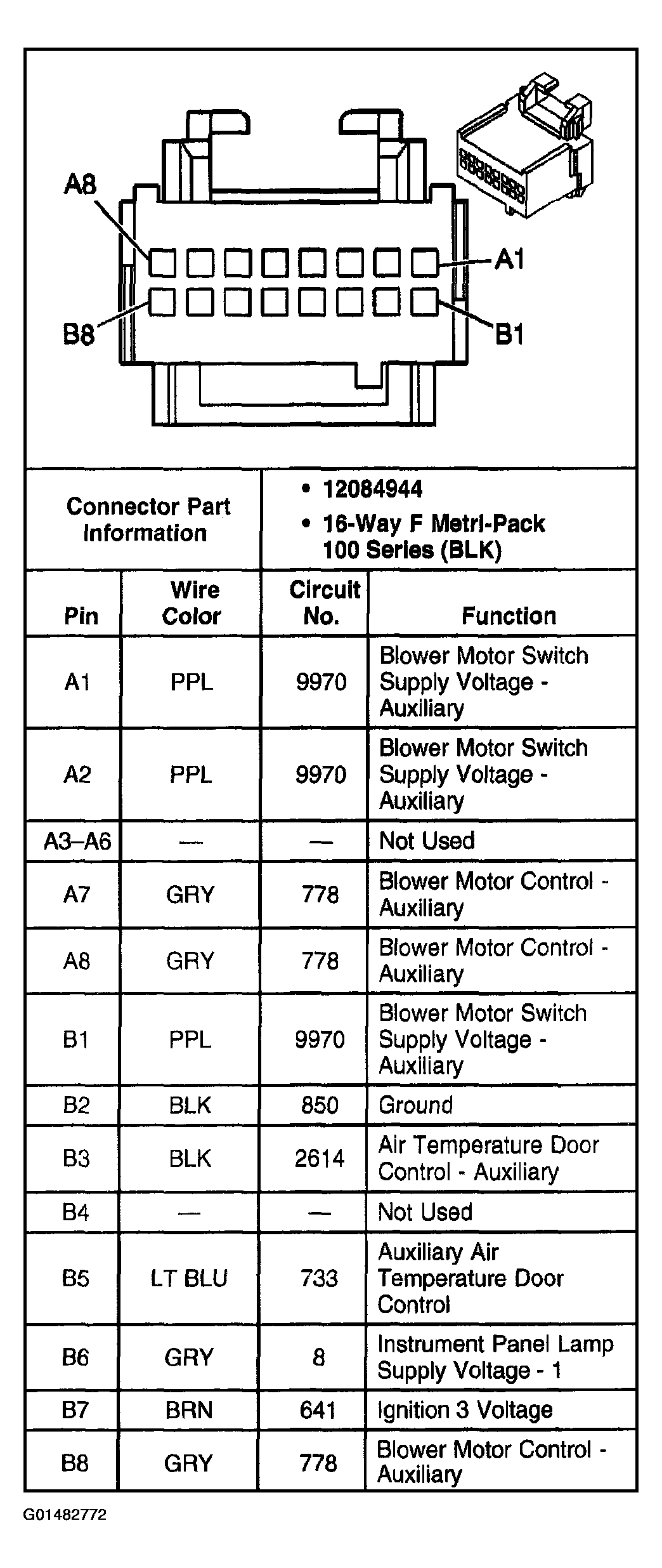

Fig 1: HVAC Control Module - Auxiliary Connector End View C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
