HVAC Control Module Connector End View C1

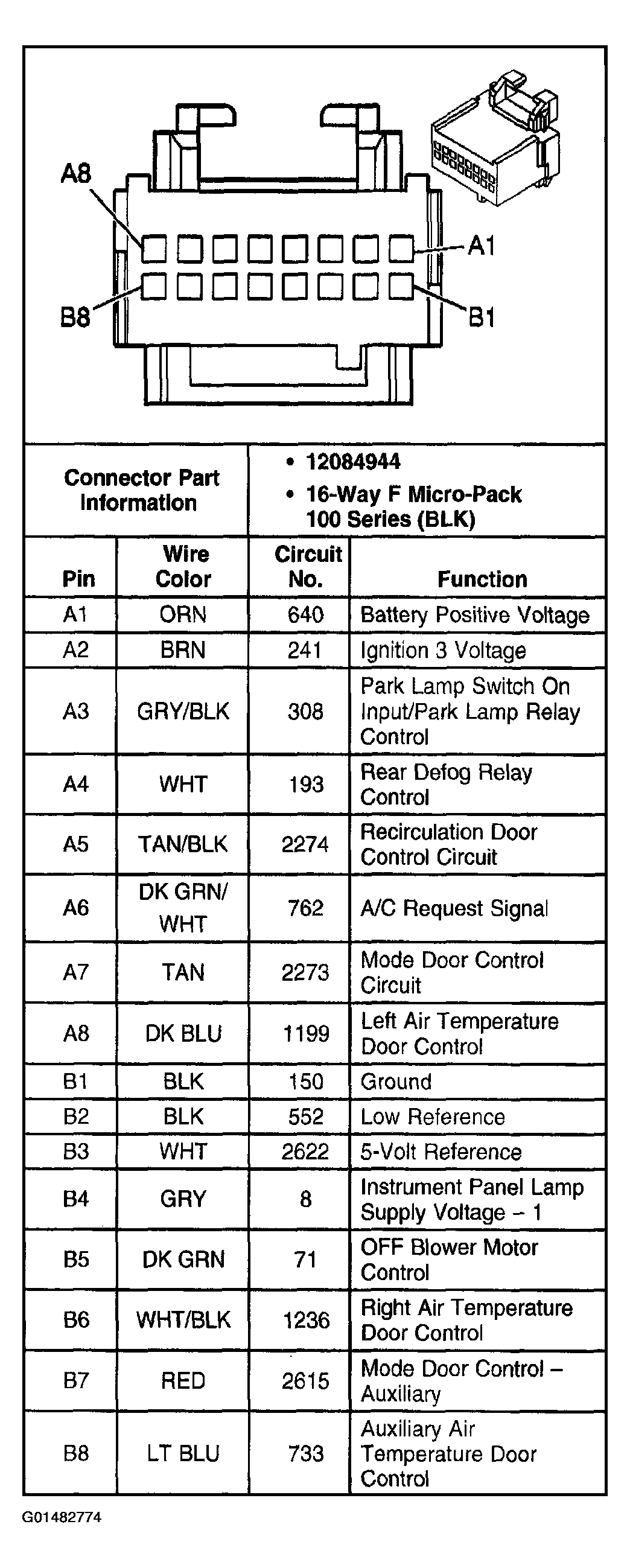

Fig 1: HVAC Control Module Connector End View C1
G01482774Courtesy of GENERAL MOTORS CORP.
