HVAC Control Module Connector End View C2

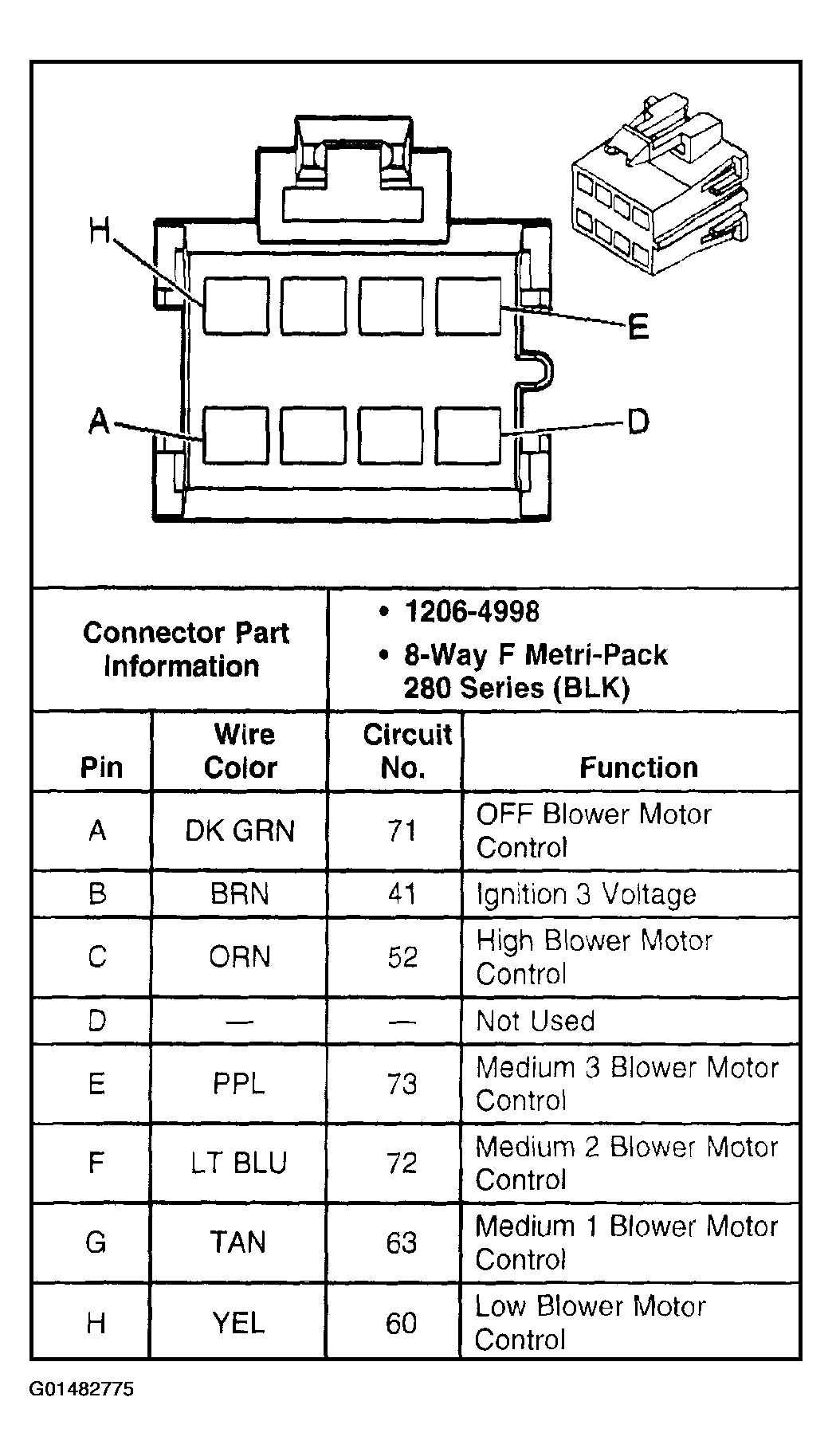

Fig 1: HVAC Control Module Connector End View C2
G01482775Courtesy of GENERAL MOTORS CORP.
