Home › Chevrolet › 2003 › Venture Base, Van Cargo Extended › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End View › Input Speed Sensor Connector, Wiring Harness Side Connector End View

Input Speed Sensor Connector, Wiring Harness Side Connector End View

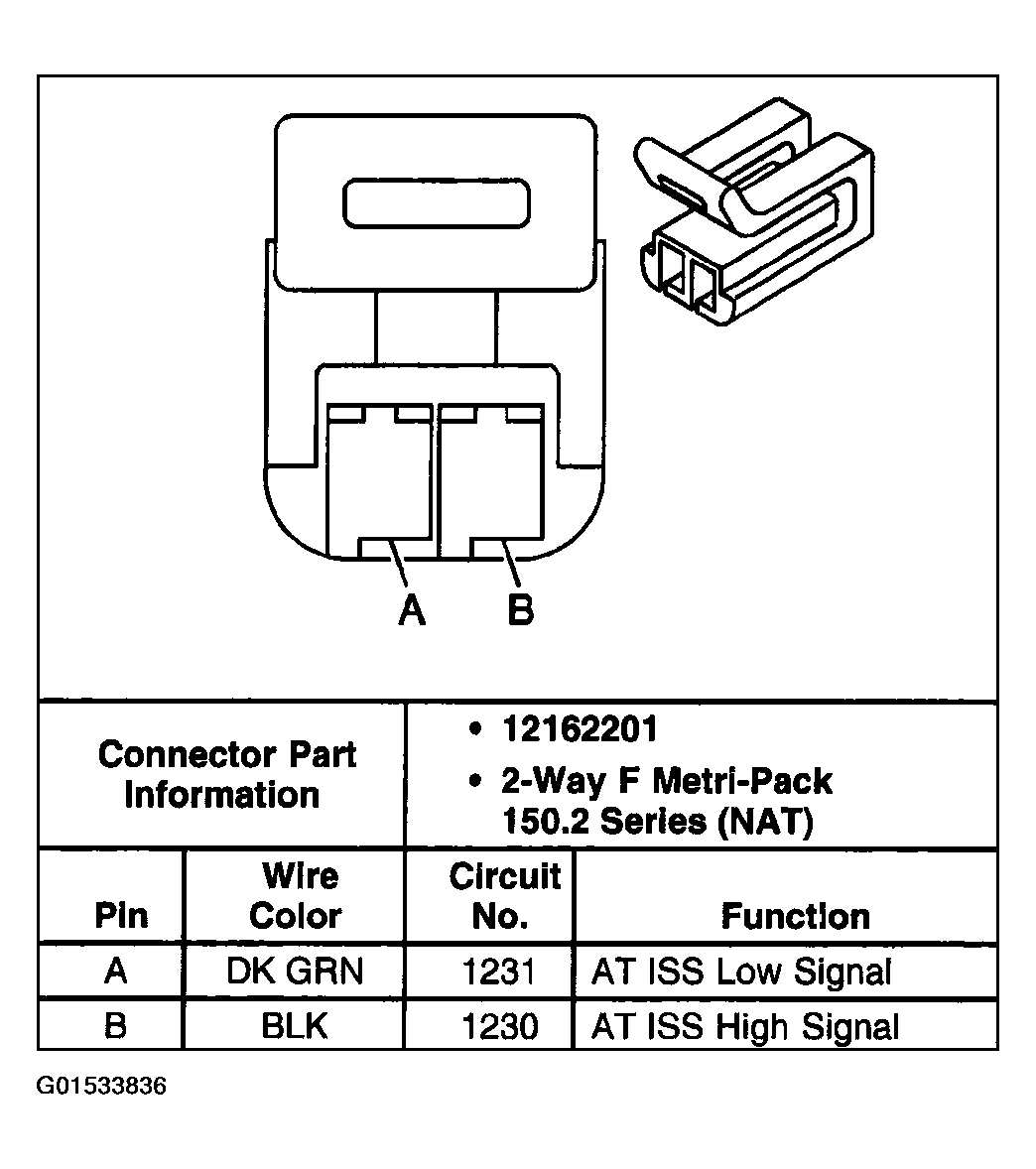

Fig 1: Input Speed Sensor Connector, Wiring Harness Side Connector End View
G01533836Courtesy of GENERAL MOTORS CORP.
