Left Rear Side Door Actuator Control Module Connector End View C2

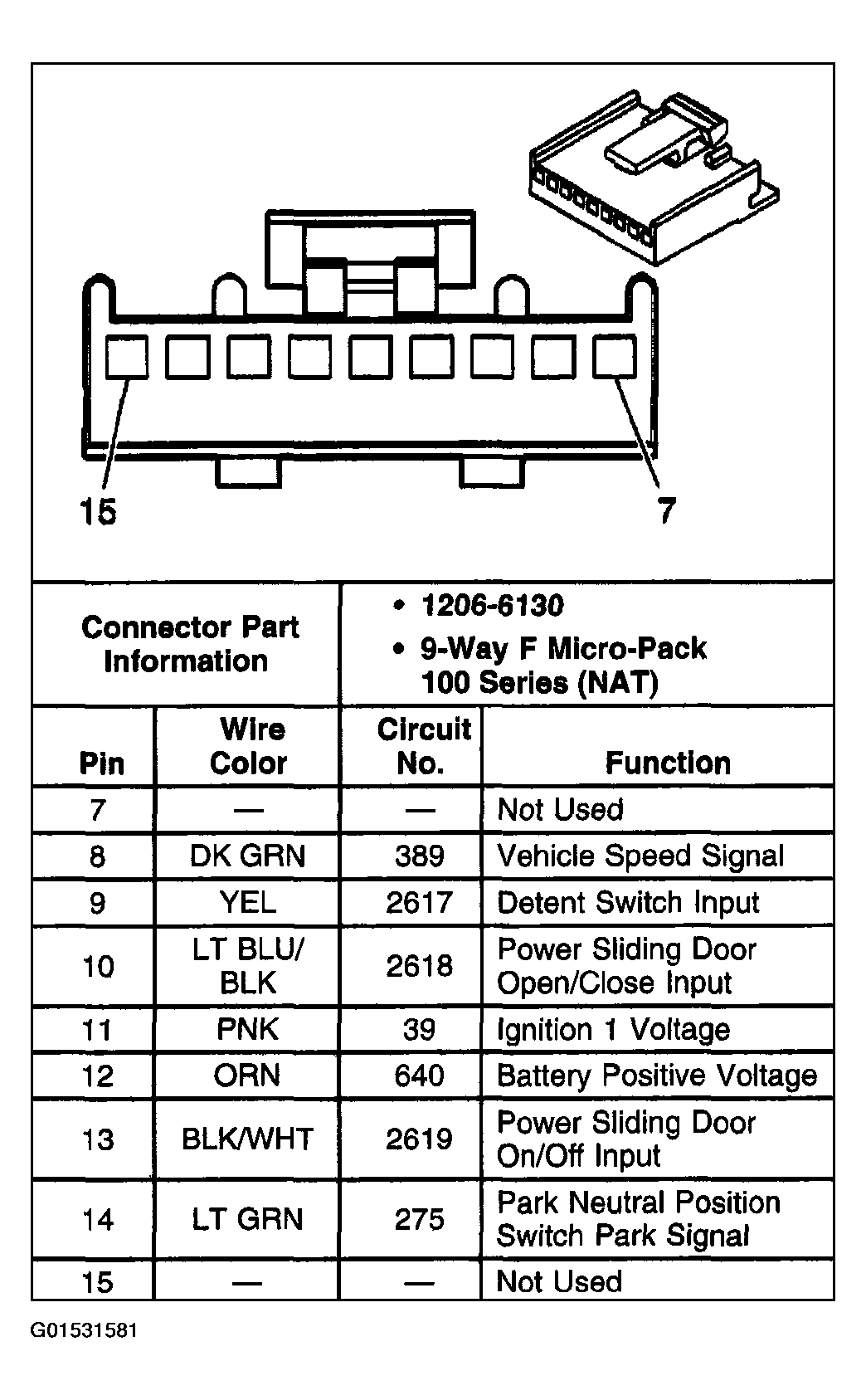

Fig 1: Left Rear Side Door Actuator Control Module Connector End View C2
G01531581Courtesy of GENERAL MOTORS CORP.
