Liftgate Door Lock Cylinder Switch Connector End View
Liftgate Door Lock Cylinder Switch Connector End View

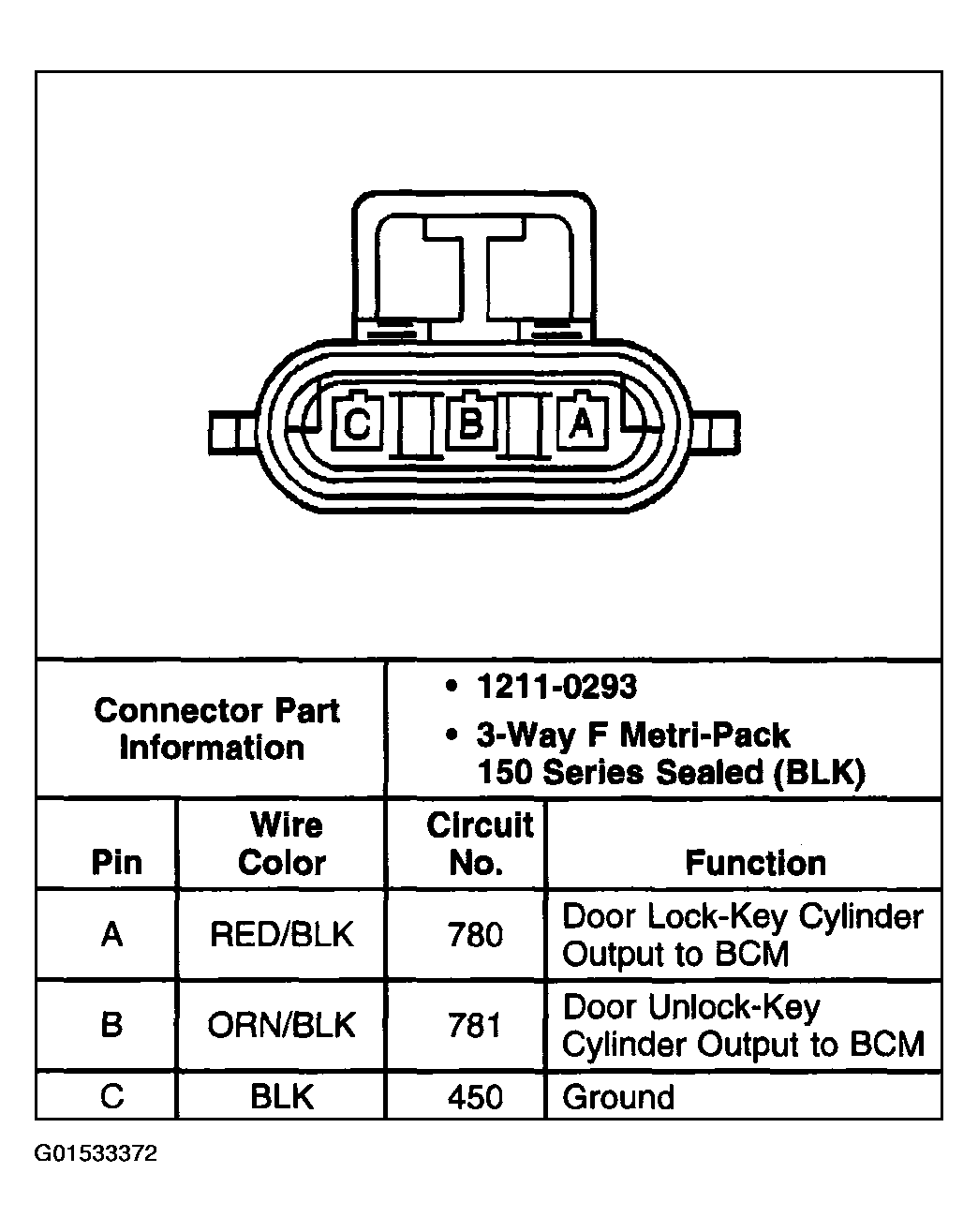

Fig 1: Liftgate Door Lock Cylinder Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
