Memory Seat Module Connector End View C1

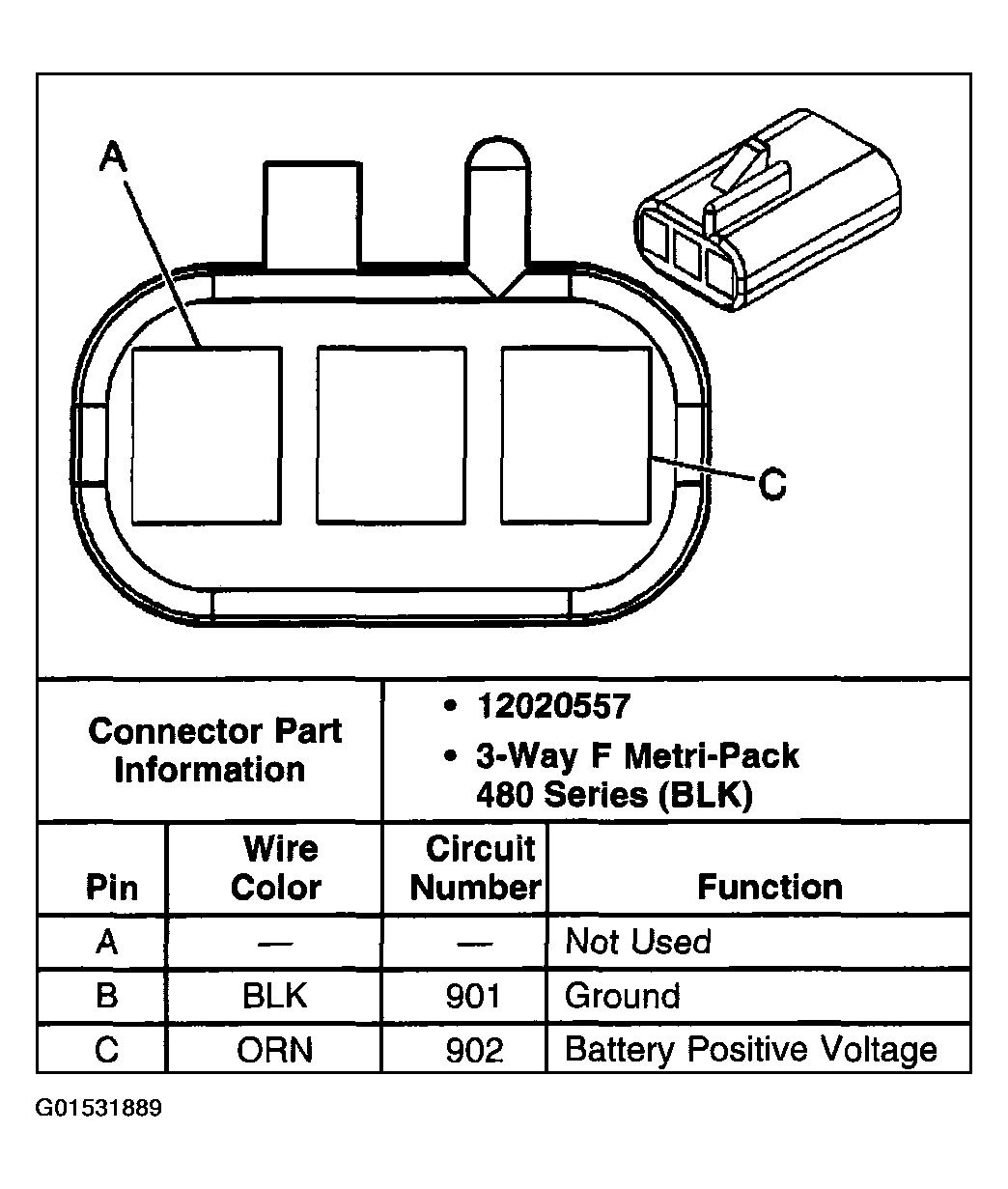

Fig 1: Memory Seat Module Connector End View C1
G01531889Courtesy of GENERAL MOTORS CORP.
