Memory Seat Module Connector End View C2

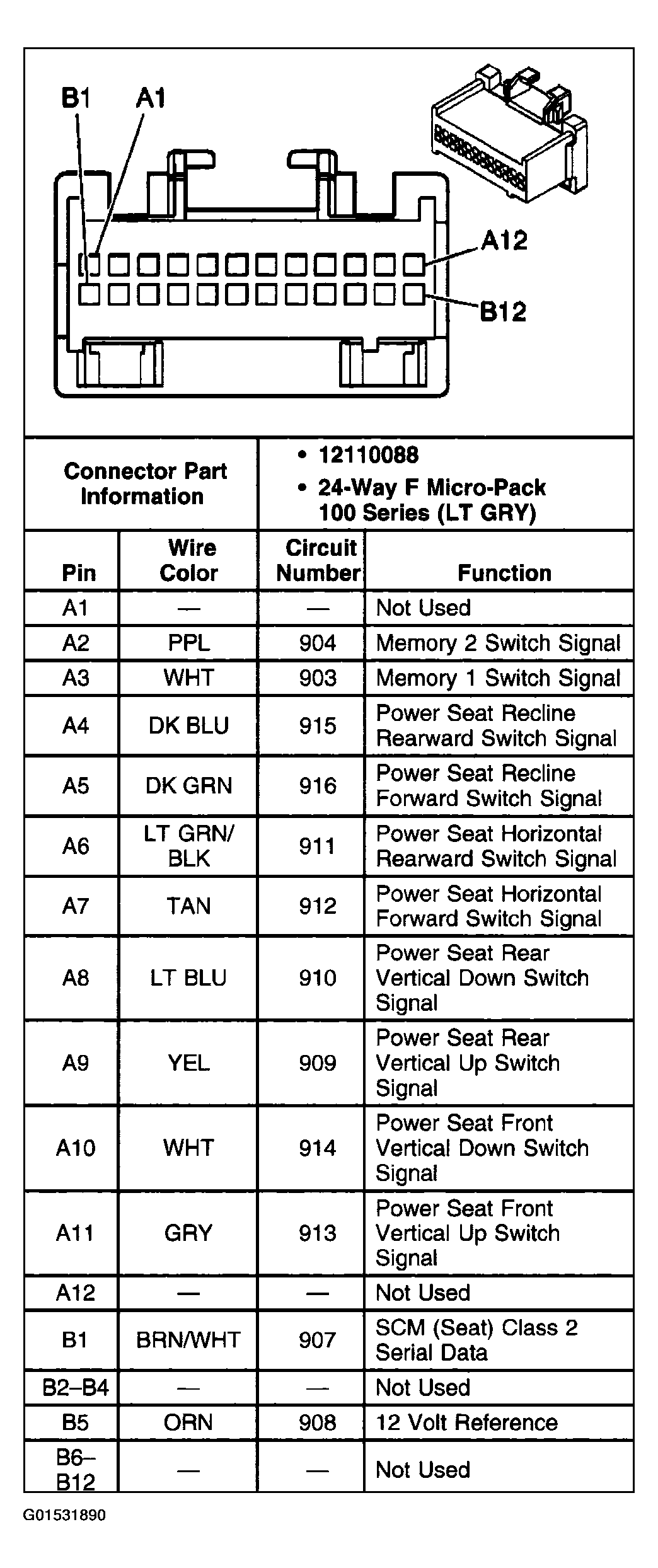

Fig 1: Memory Seat Module Connector End View C2
G01531890Courtesy of GENERAL MOTORS CORP.
