Memory Seat Module Connector End View C3

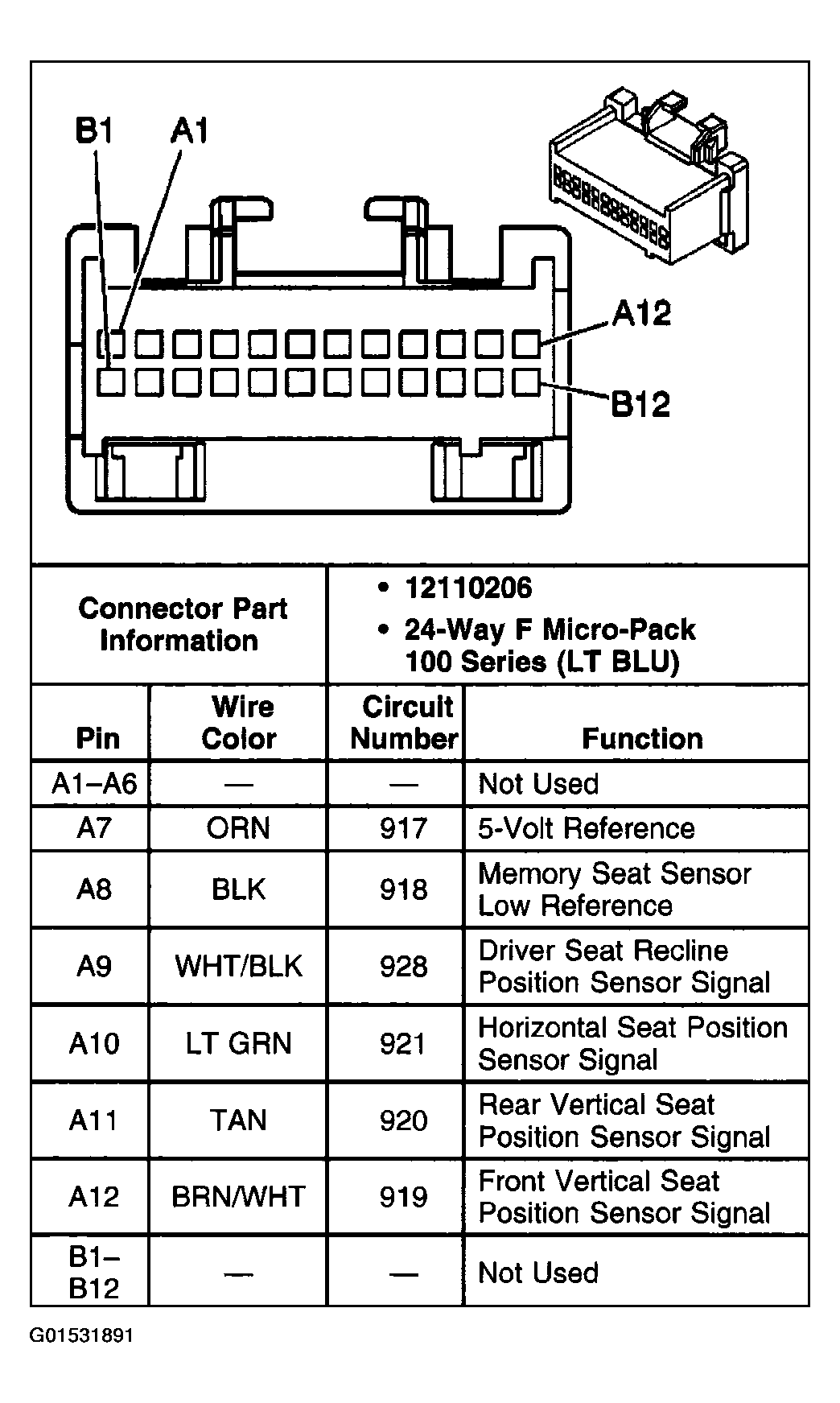

Fig 1: Memory Seat Module Connector End View C3
G01531891Courtesy of GENERAL MOTORS CORP.
