Memory Seat Module Connector End View C4

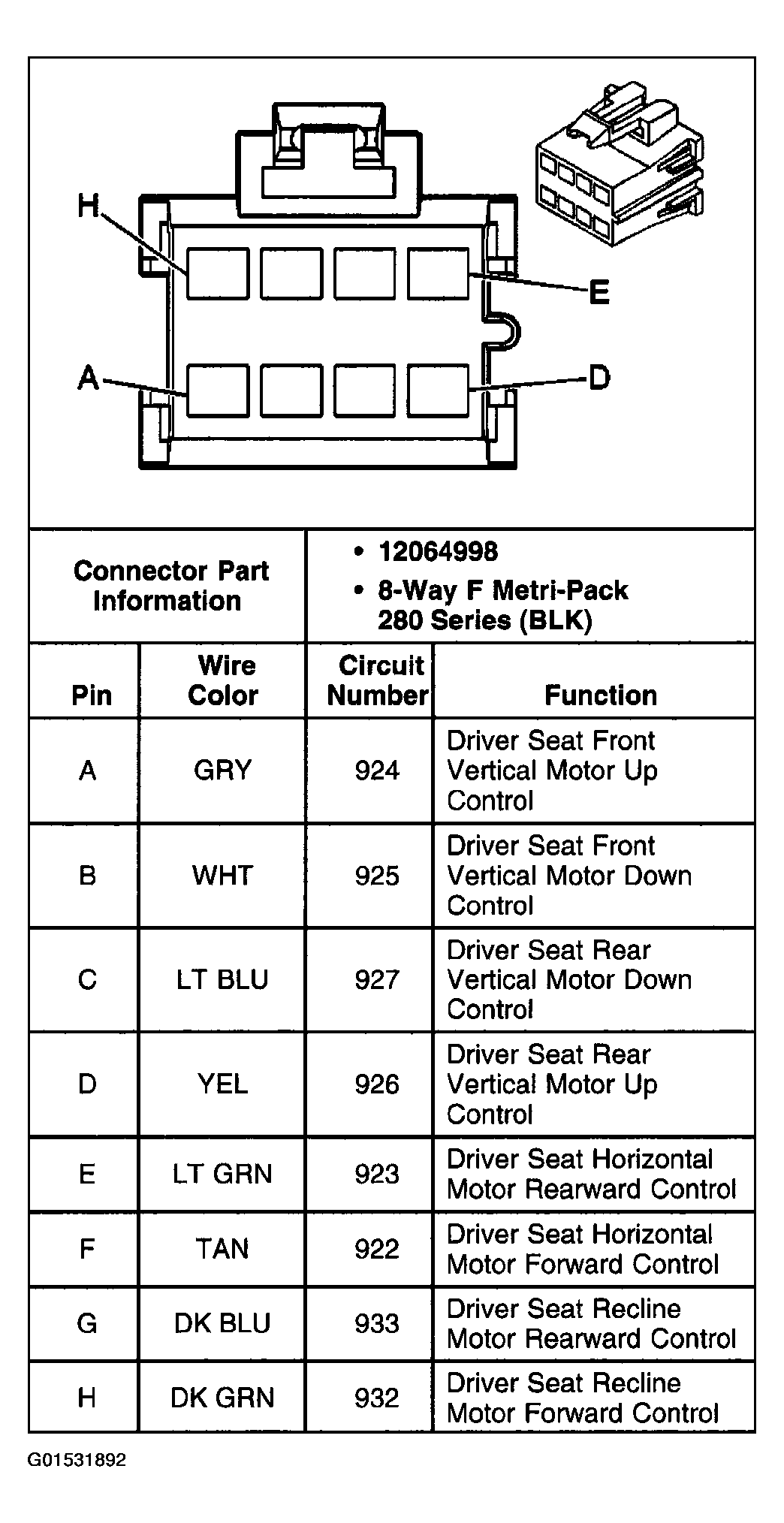

Fig 1: Memory Seat Module Connector End View C4
G01531892Courtesy of GENERAL MOTORS CORP.
