Object Sensor-RR Middle Connector End View

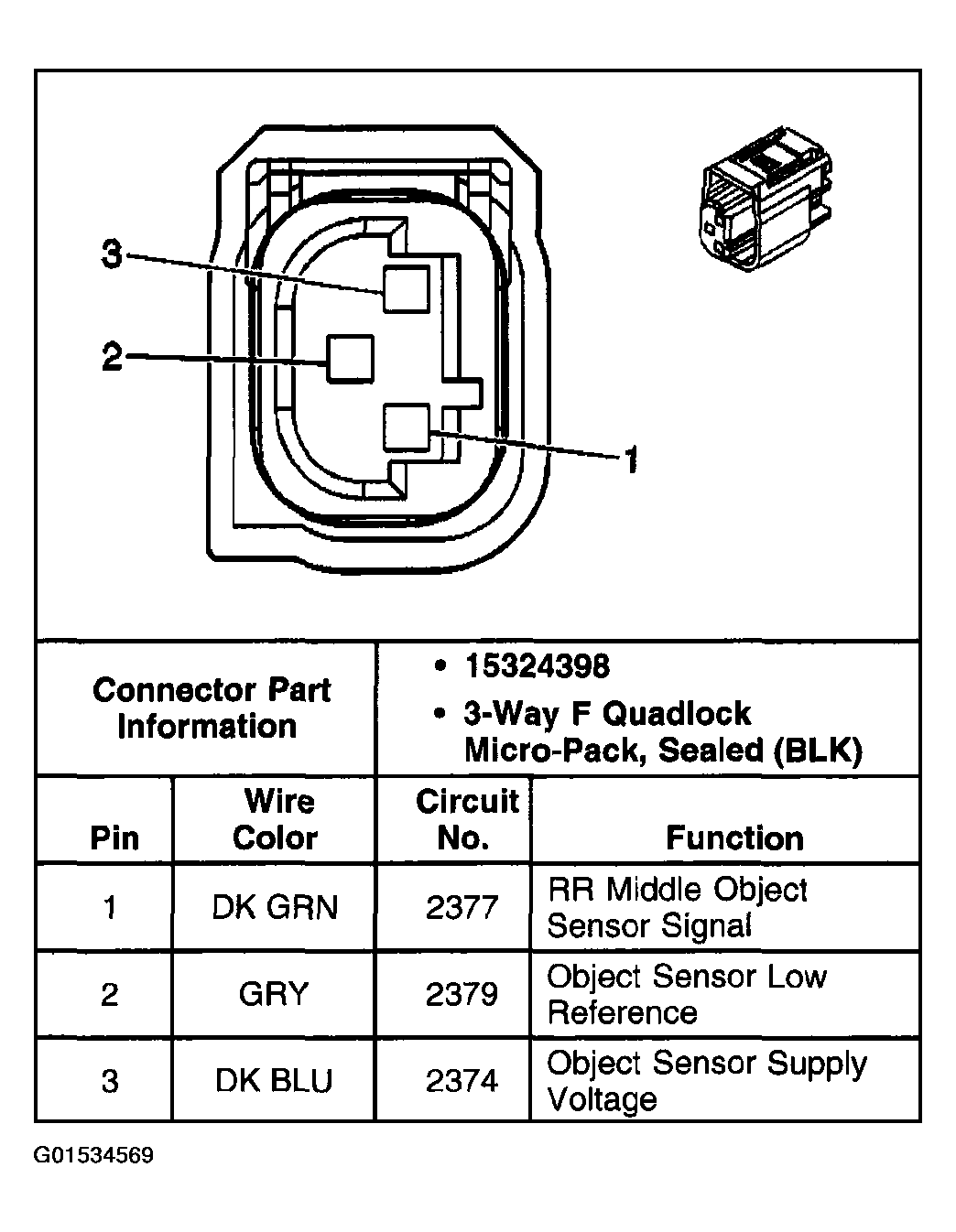

Fig 1: Object Sensor-RR Middle Connector End View
G01534569Courtesy of GENERAL MOTORS CORP.
