Vehicle Communication Interface Module (VCIM) Connector End View C2

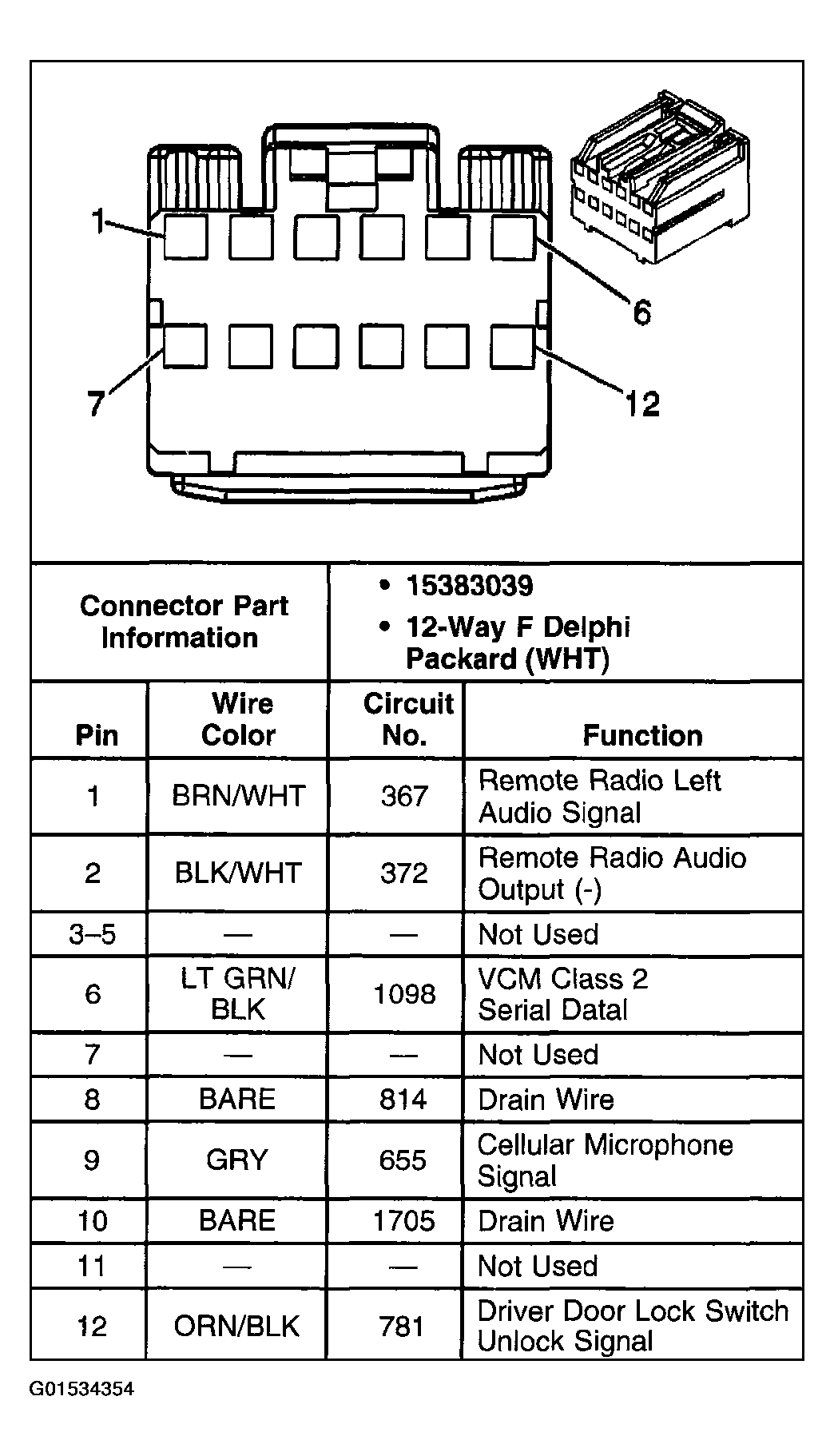

Fig 1: Vehicle Communication Interface Module (VCIM) Connector End View C2
G01534354Courtesy of GENERAL MOTORS CORP.
