Connector End View
›
Window Switch Connector End View - Master
Window Switch Connector End View - Master

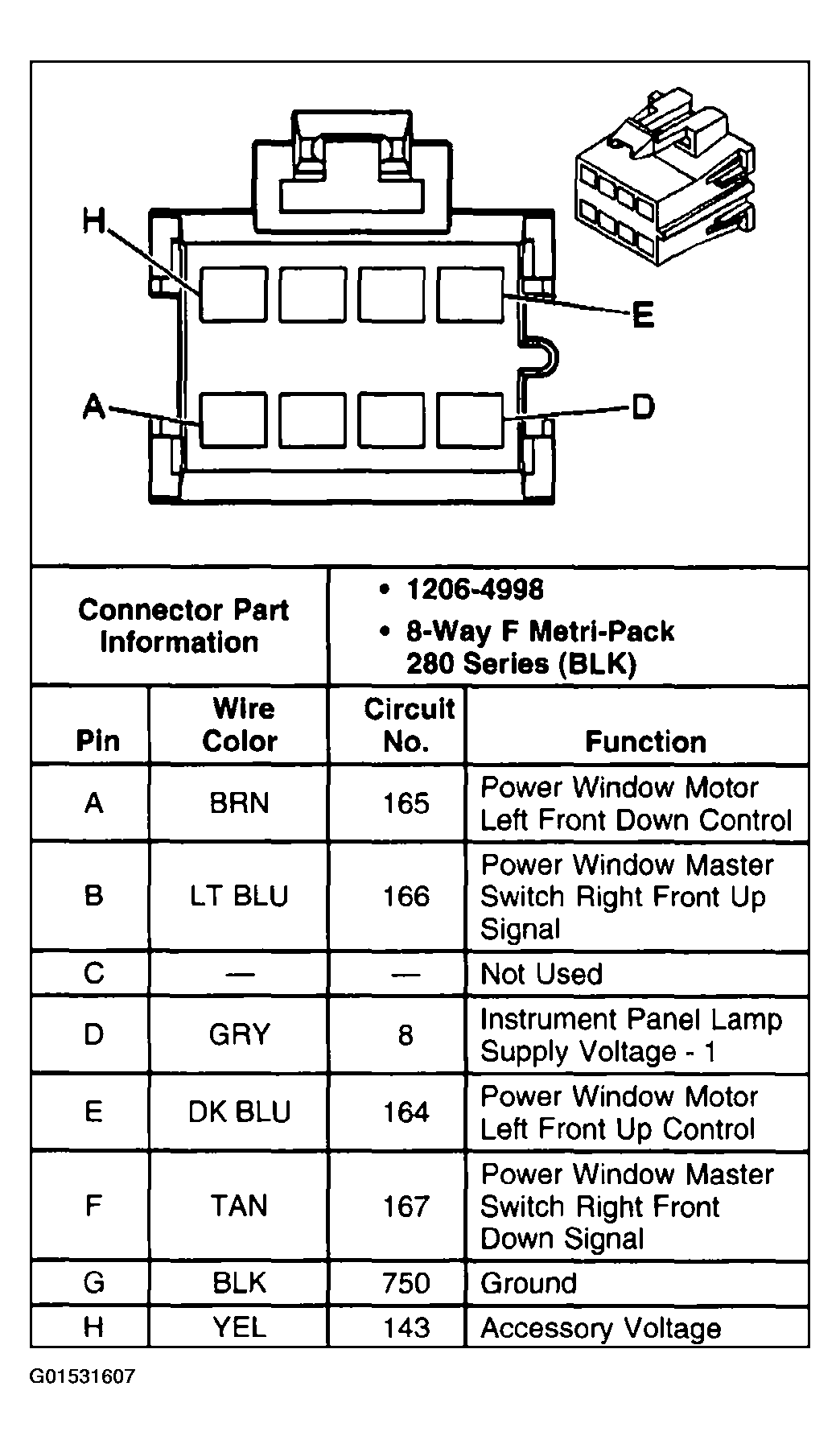

Fig 1: Window Switch Connector End View - Master
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
