Window Washer Fluid Pump-Rear Connector End View
Window Washer Fluid Pump-Rear Connector End View

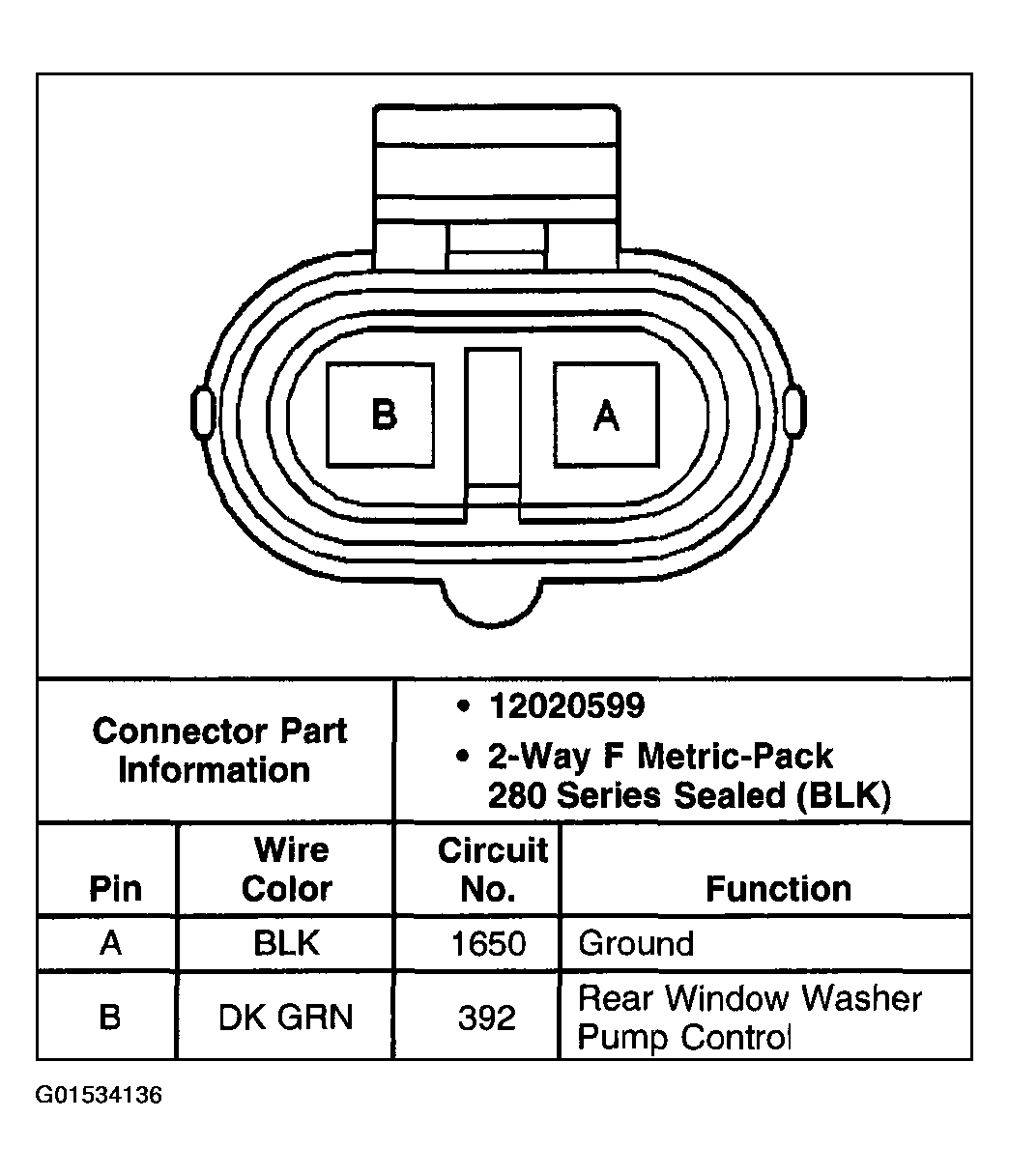

Fig 1: Window Washer Fluid Pump-Rear Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
