Window Wiper Motor-Rear Connector End View
Window Wiper Motor-Rear Connector End View

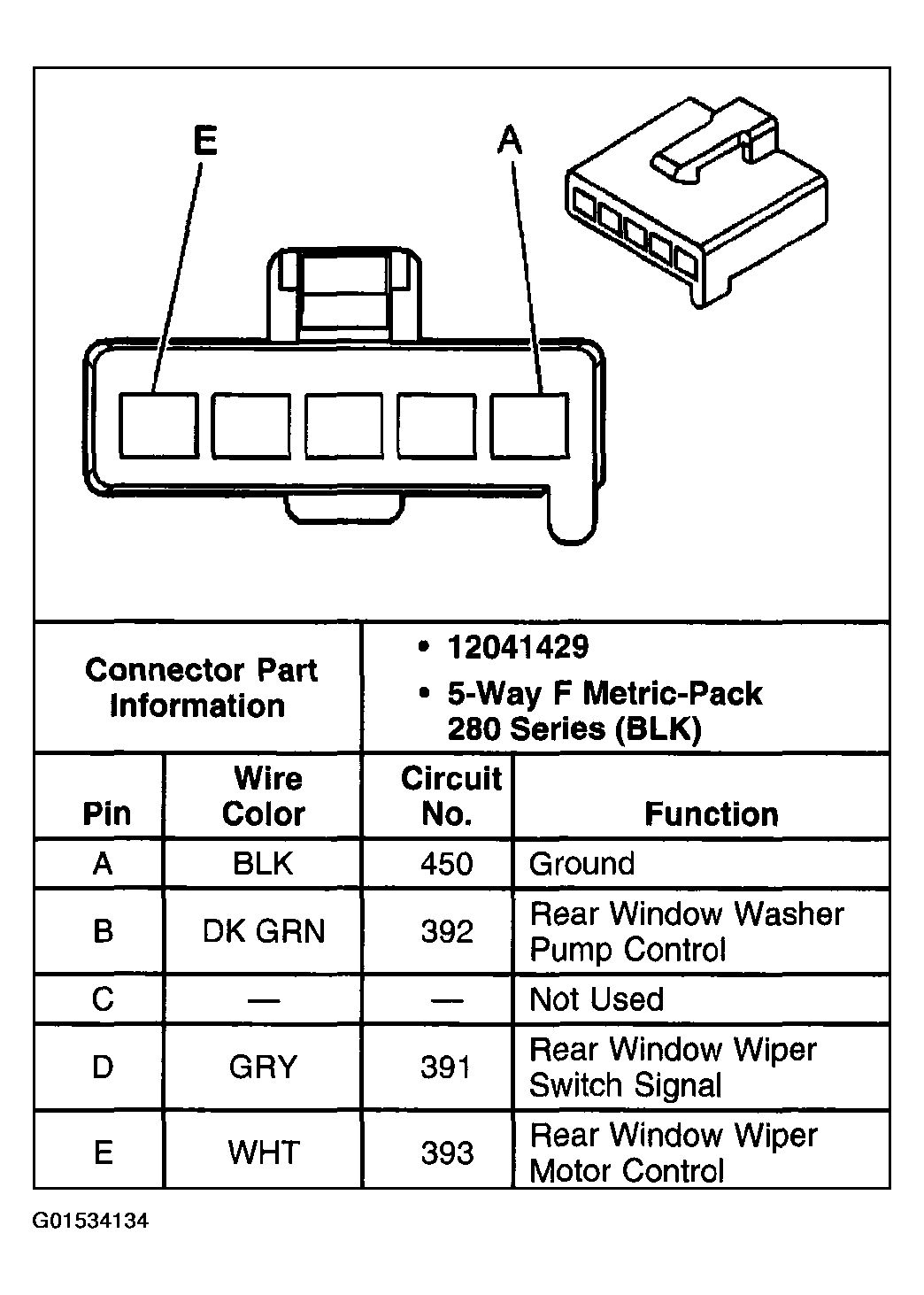

Fig 1: Window Wiper Motor-Rear Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
