Home › Chevrolet › 2003 › Venture Base, Van Cargo Extended › Repair and Diagnosis › Electrical › Charging Systems › Battery › Repair Instructions › Battery Tray Replacement › Removal Procedure

Removal Procedure

  1. Remove the battery. Refer to BATTERY REPLACEMENT   .
  2. Remove the battery tray bolts.
  3. Remove the battery tray.

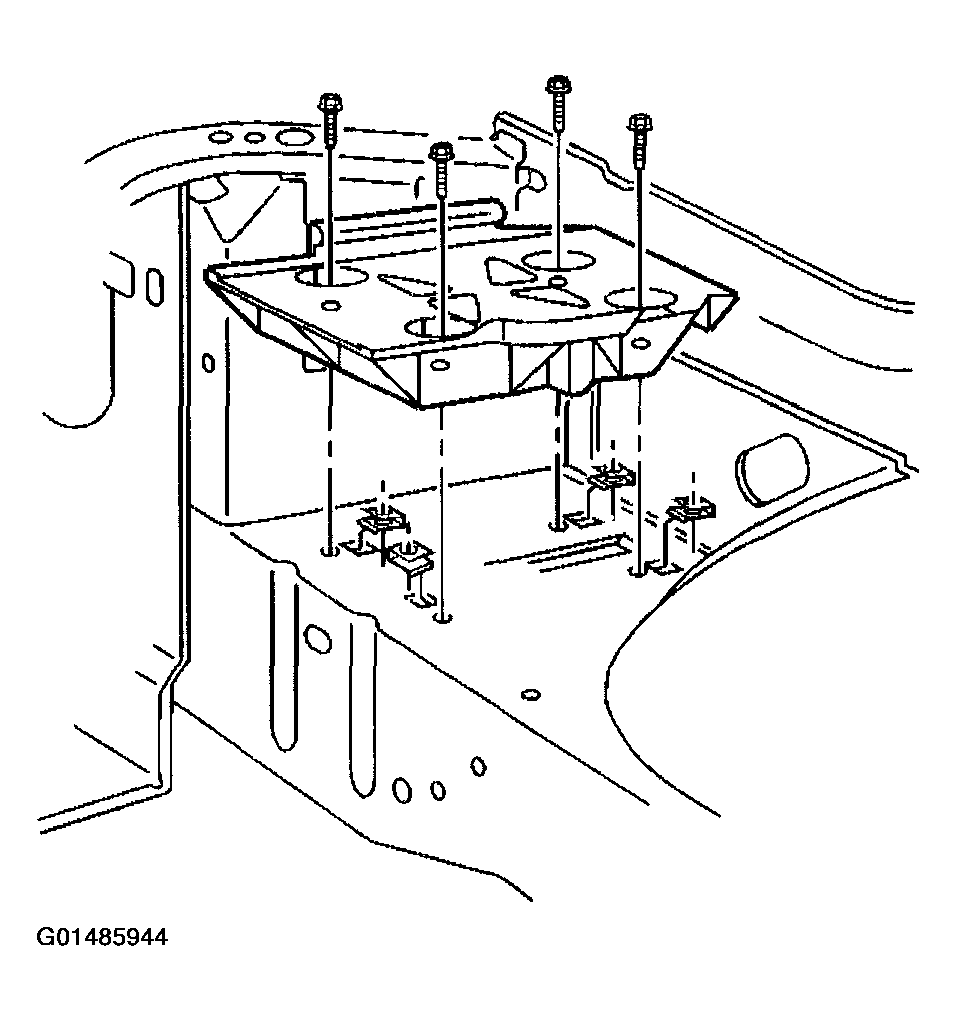

    Fig 1: Removing Battery Tray
    G01485944Courtesy of GENERAL MOTORS CORP.
