Roof Rail Reading Lamp-Front

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

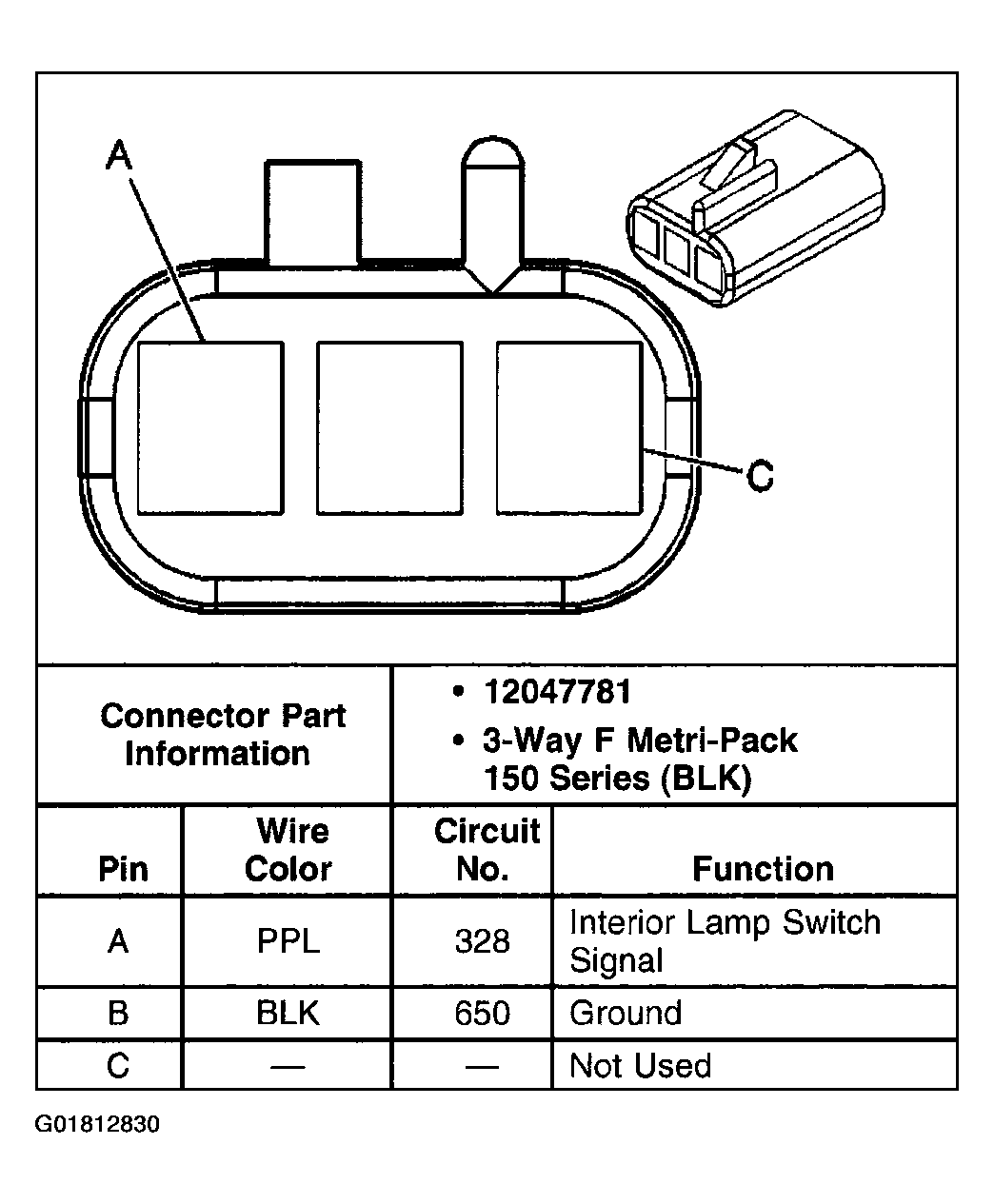

Fig 1: Roof Rail Reading Lamp-Front

G01812830

Courtesy of GENERAL MOTORS CORP.

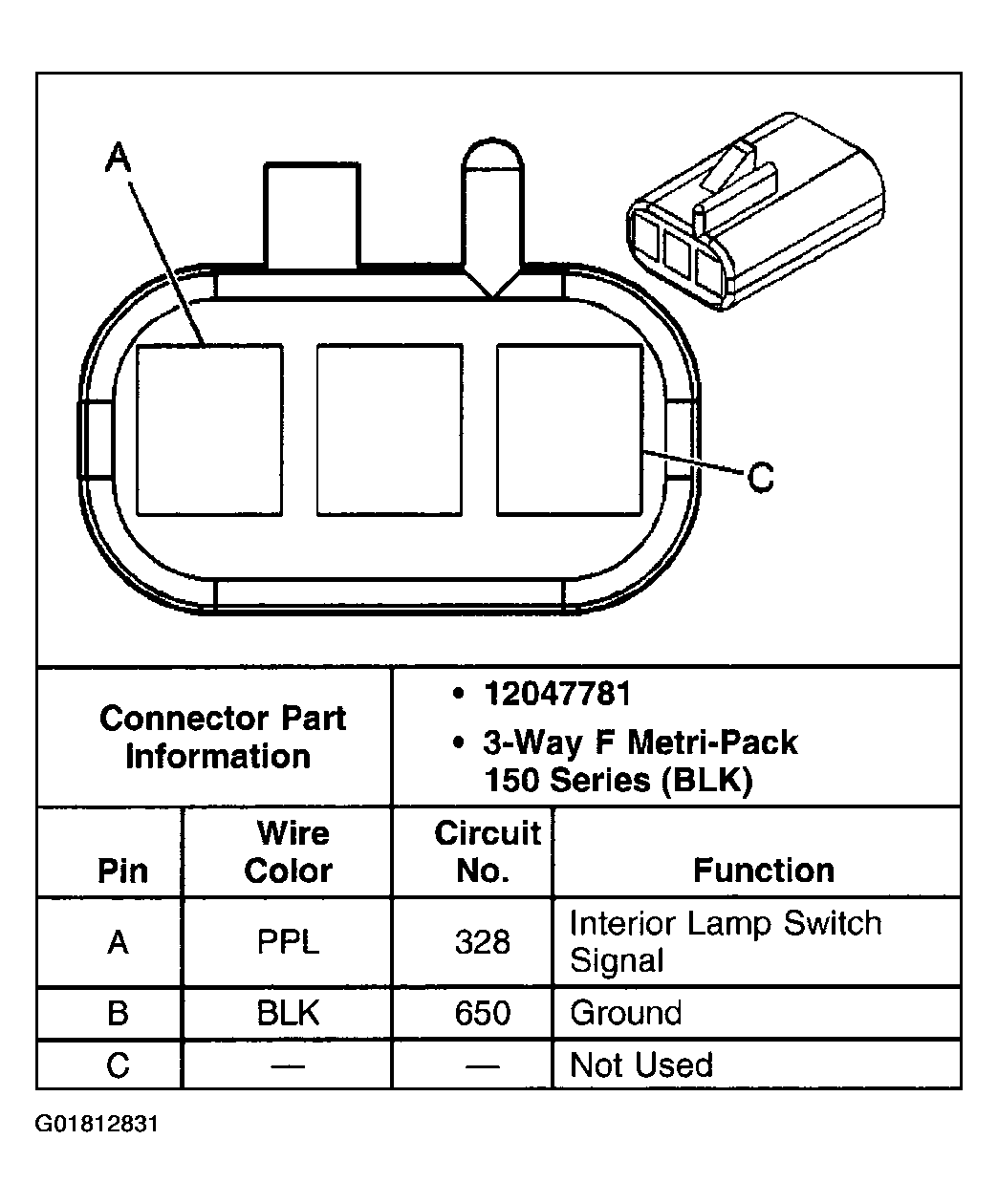

Fig 2: Roof Rail Reading Lamp-Rear

G01812831

Courtesy of GENERAL MOTORS CORP.

Fig 3: Stop Lamp Switch C1

G01812832

Courtesy of GENERAL MOTORS CORP.

Fig 4: Tail Lamp-Left

G01812833

Courtesy of GENERAL MOTORS CORP.

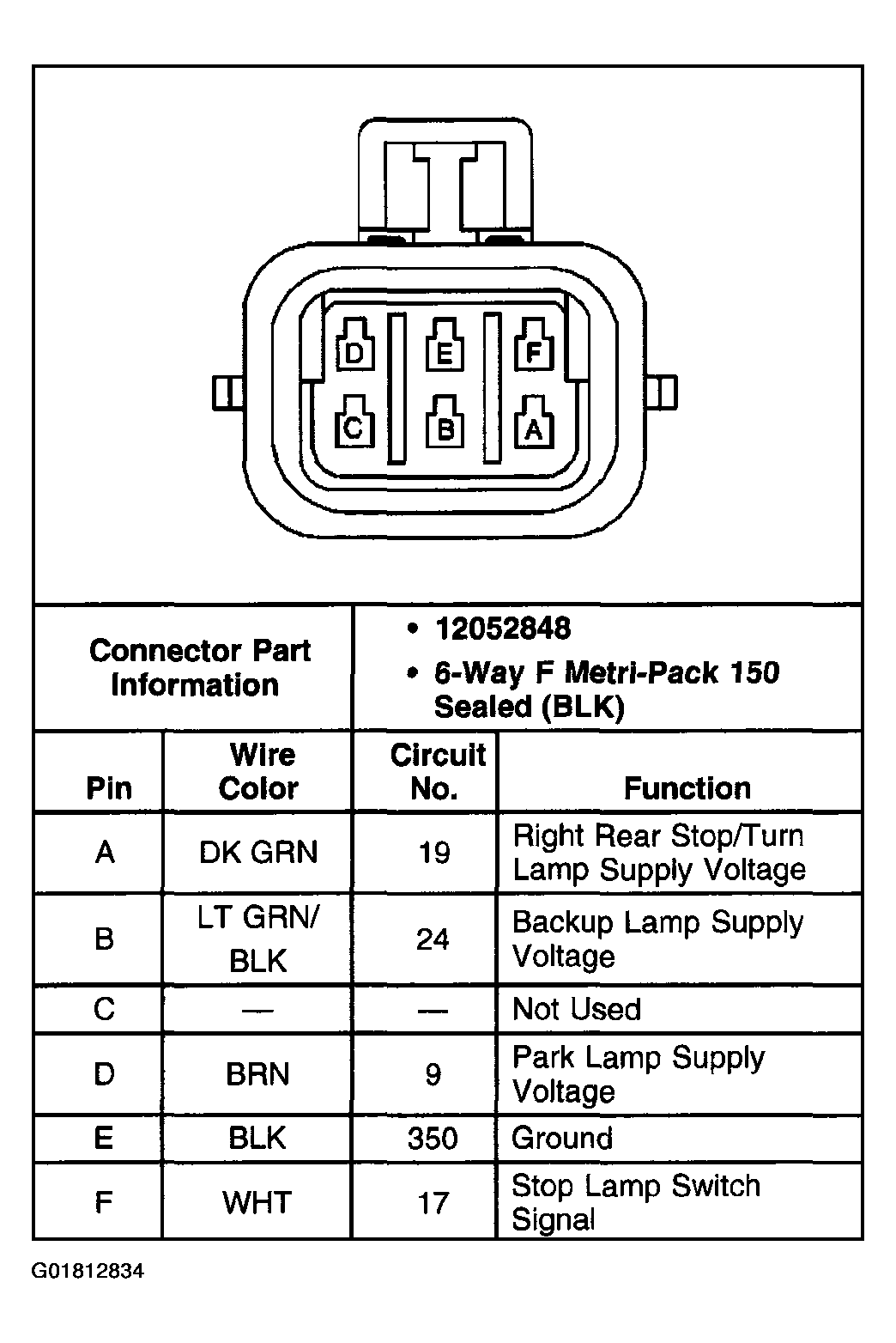

Fig 5: Tail Lamp-Right

G01812834

Courtesy of GENERAL MOTORS CORP.

Fig 6: Turn Signal/Hazard Flasher

G01812835

Courtesy of GENERAL MOTORS CORP.

Fig 7: Vanity Mirror Lamp-Left

G01812836

Courtesy of GENERAL MOTORS CORP.

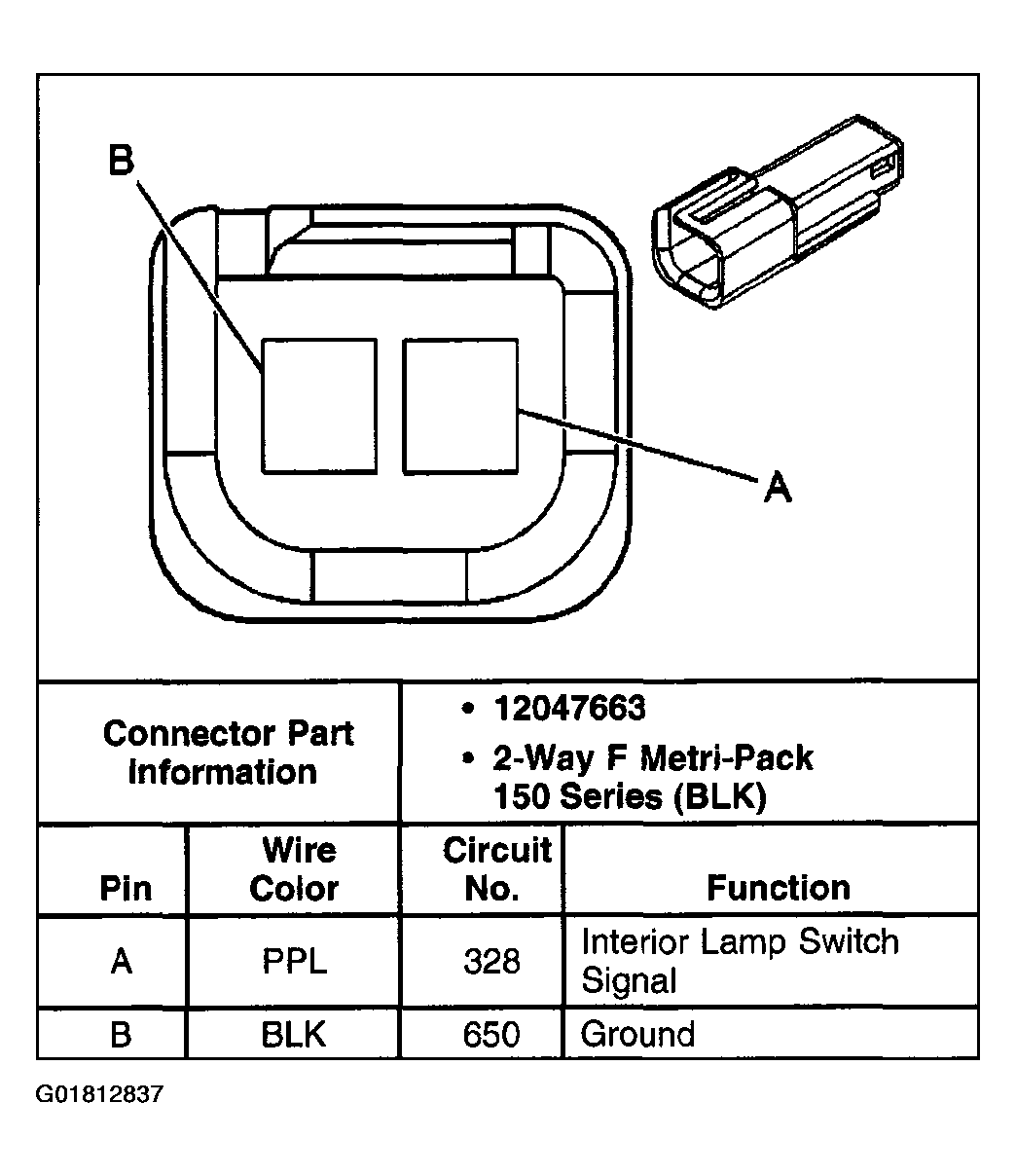

Fig 8: Vanity Mirror Lamp-Right

G01812837

Courtesy of GENERAL MOTORS CORP.

Fig 9: Windshield Header Courtesy/Reading Lamps

G01812838

Courtesy of GENERAL MOTORS CORP.
