Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connector.

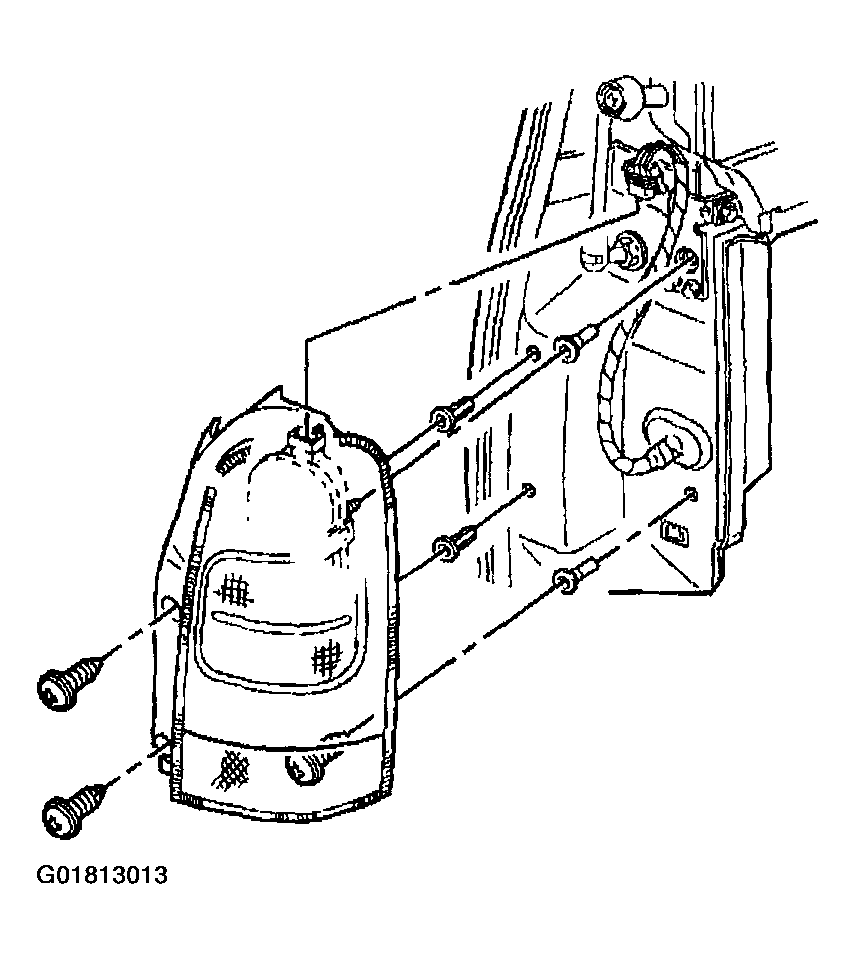

- Align the tail lamp locking guide pins to the body.
- Press the tail lamp into the locking guide pin holes.NOTE: Refer to FASTENER NOTICE .
- Install the screws to the tail lamp.
Tighten
Tighten the screws to 10 N.m (89 lb in).
- Close the liftgate.
