WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

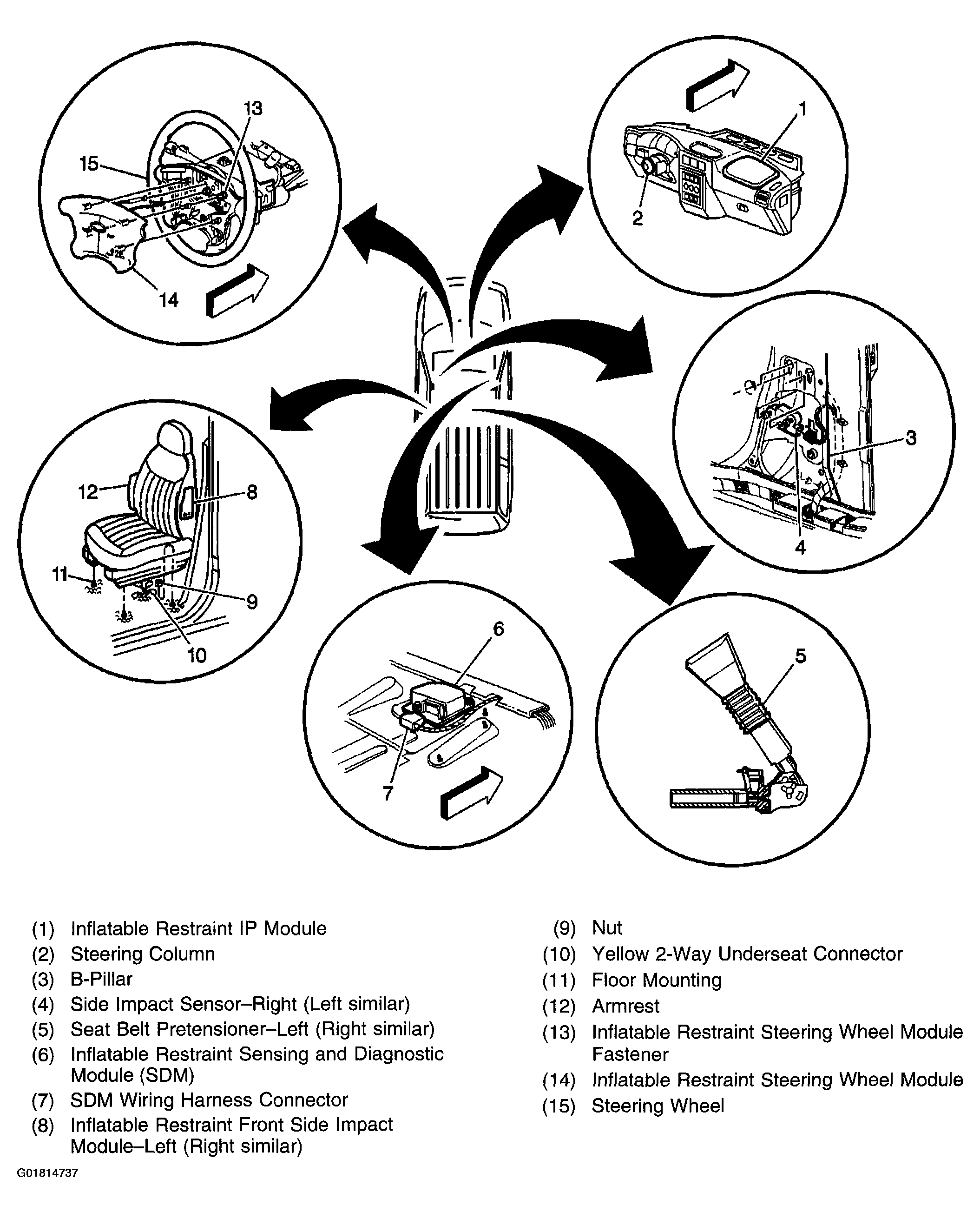

Fig 1: General Overview
Courtesy of GENERAL MOTORS CORP.

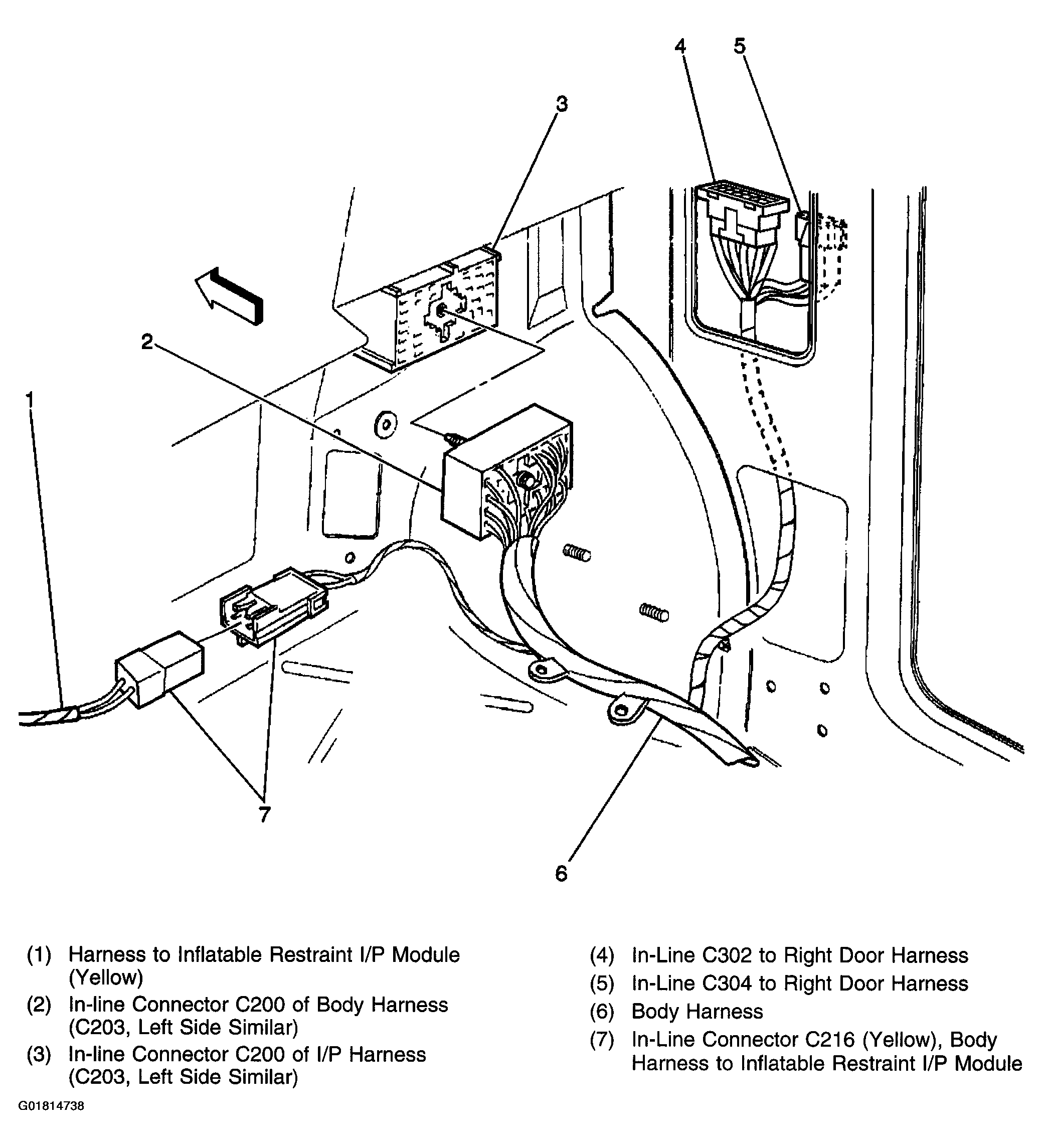

Fig 2: Below Right Side Of IP
Courtesy of GENERAL MOTORS CORP.

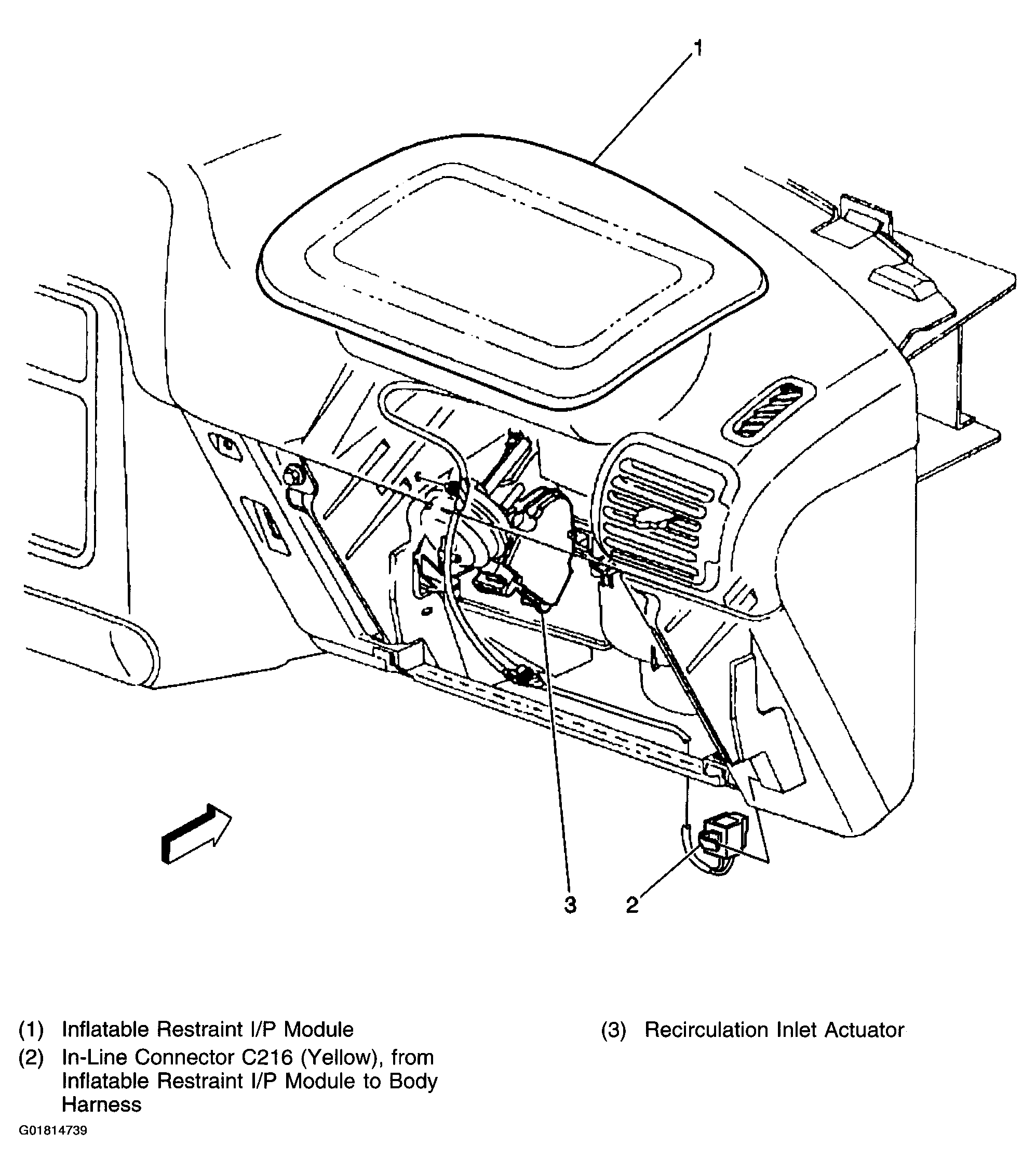

Fig 3: Right Side Of IP
Courtesy of GENERAL MOTORS CORP.

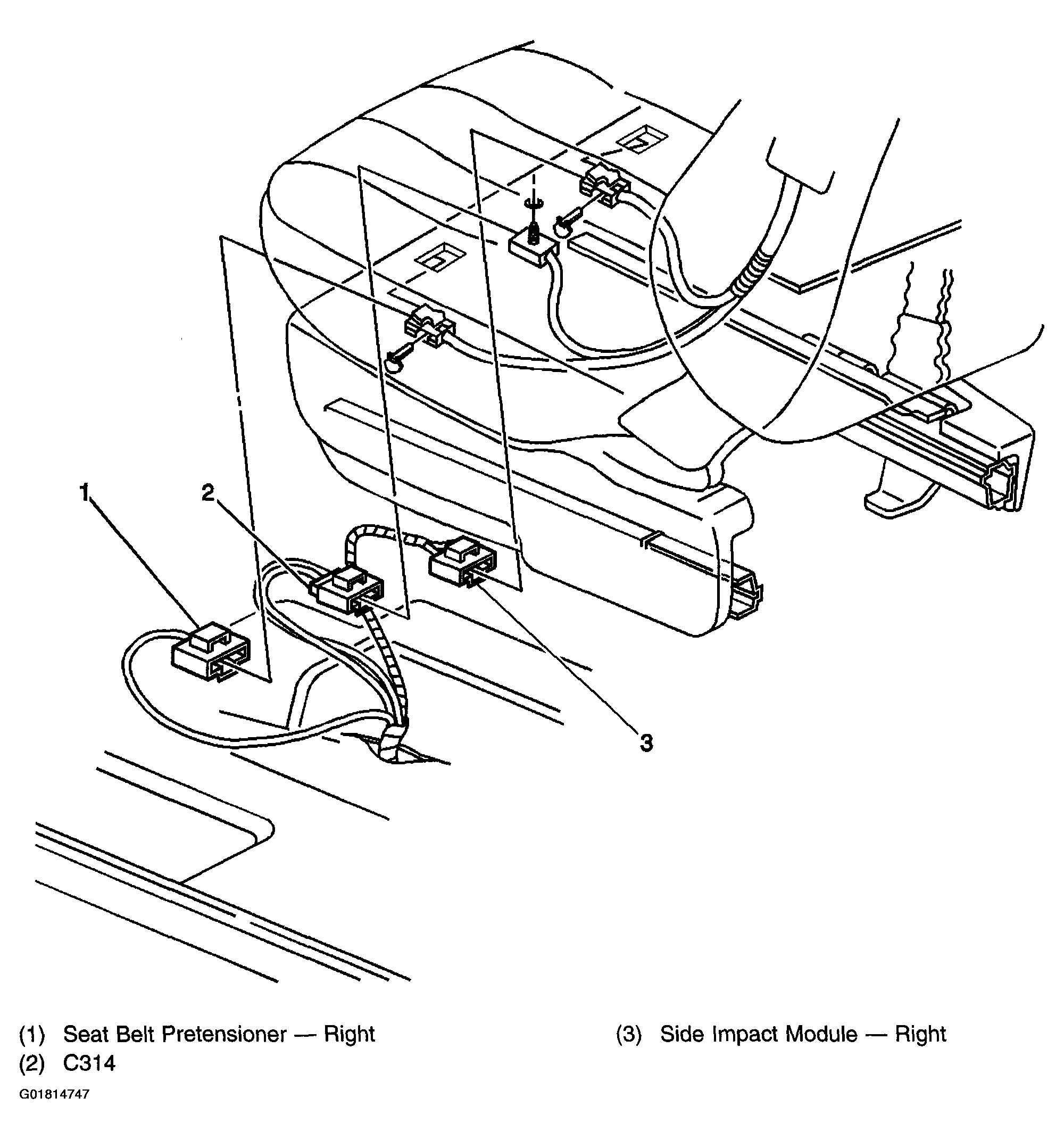

Fig 4: Below Right Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.

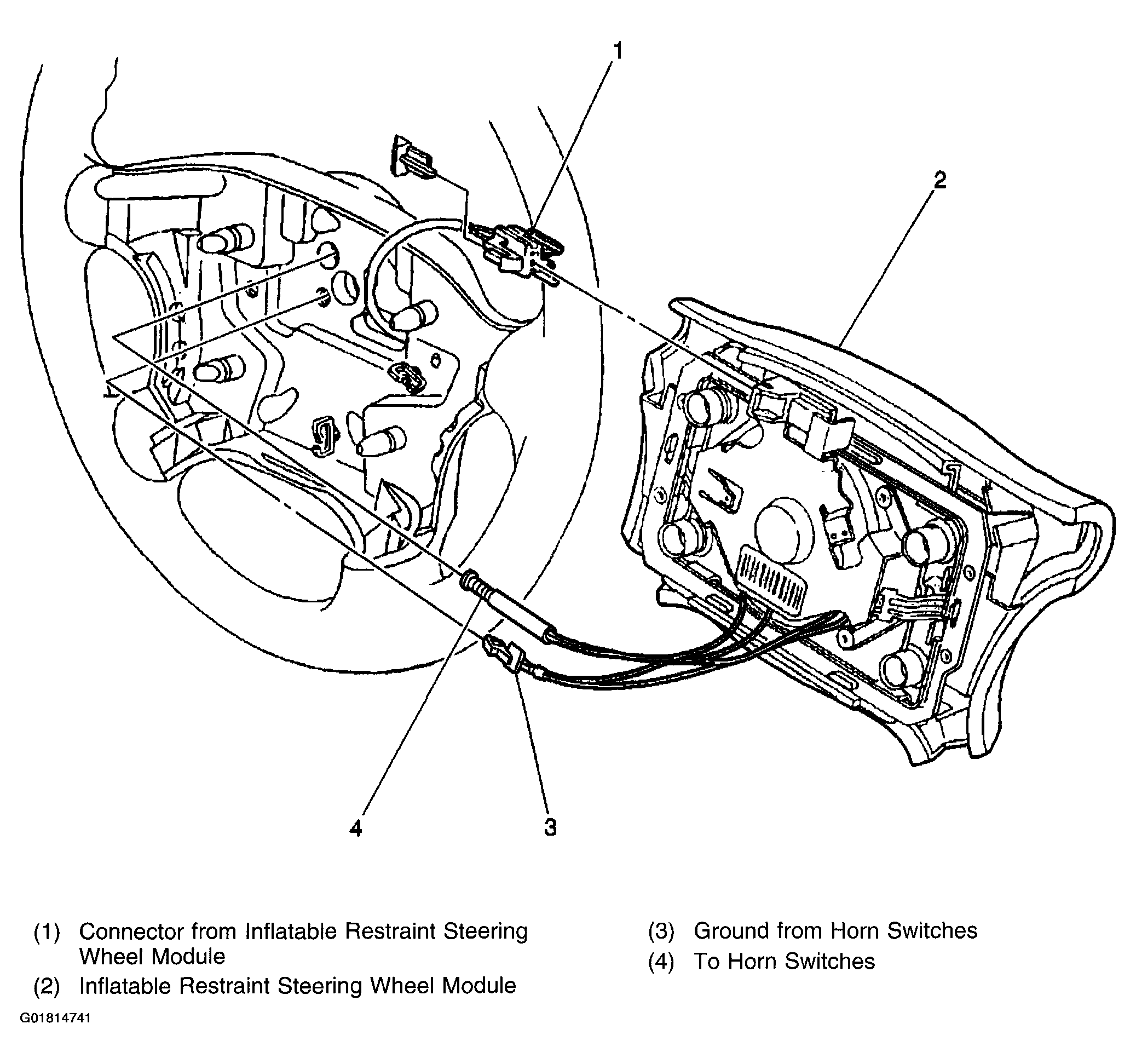

Fig 5: Oldsmobile Steering Wheel
Courtesy of GENERAL MOTORS CORP.

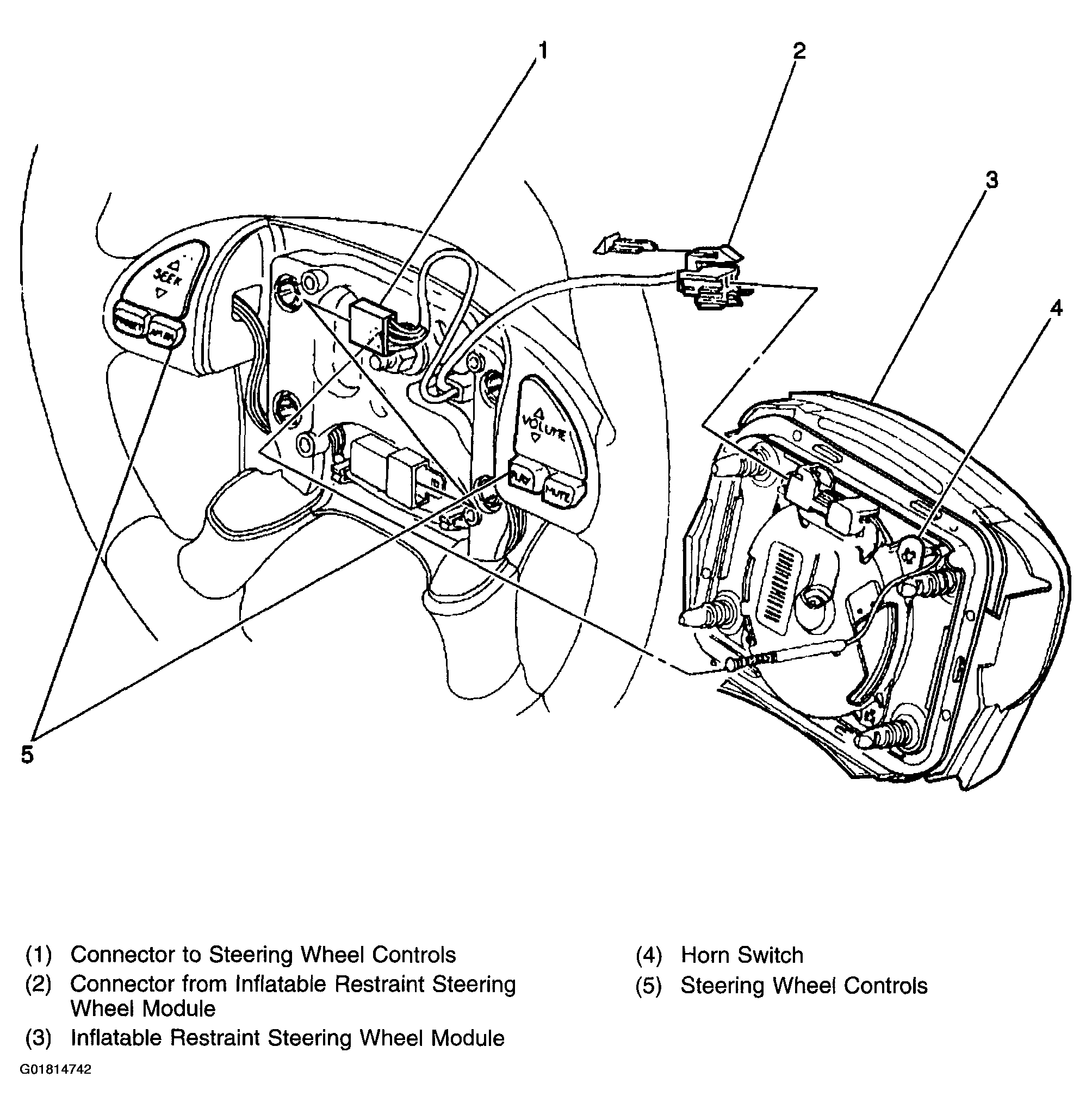

Fig 6: Pontiac Steering Wheel
Courtesy of GENERAL MOTORS CORP.

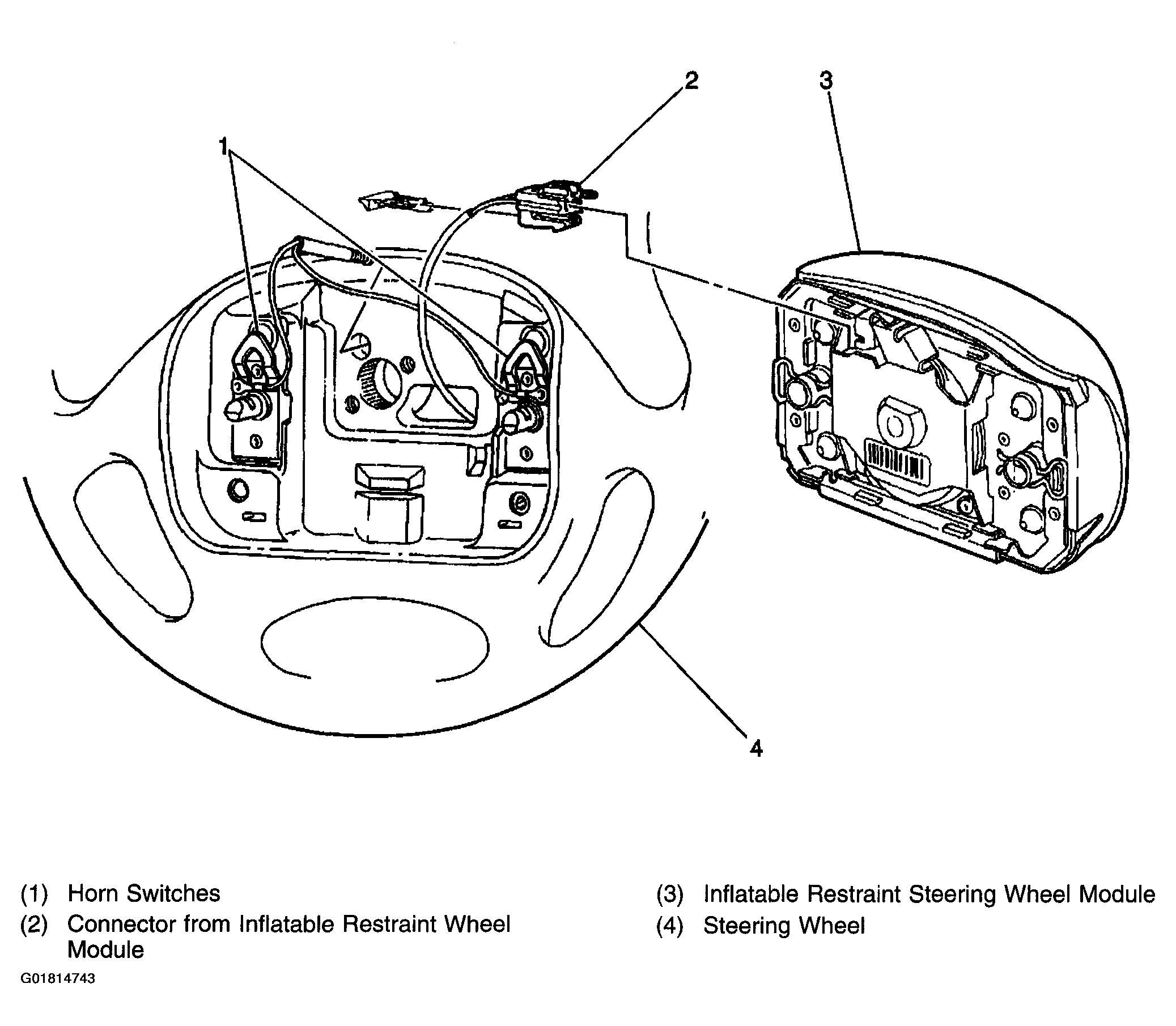

Fig 7: Chevrolet Steering Wheel
Courtesy of GENERAL MOTORS CORP.

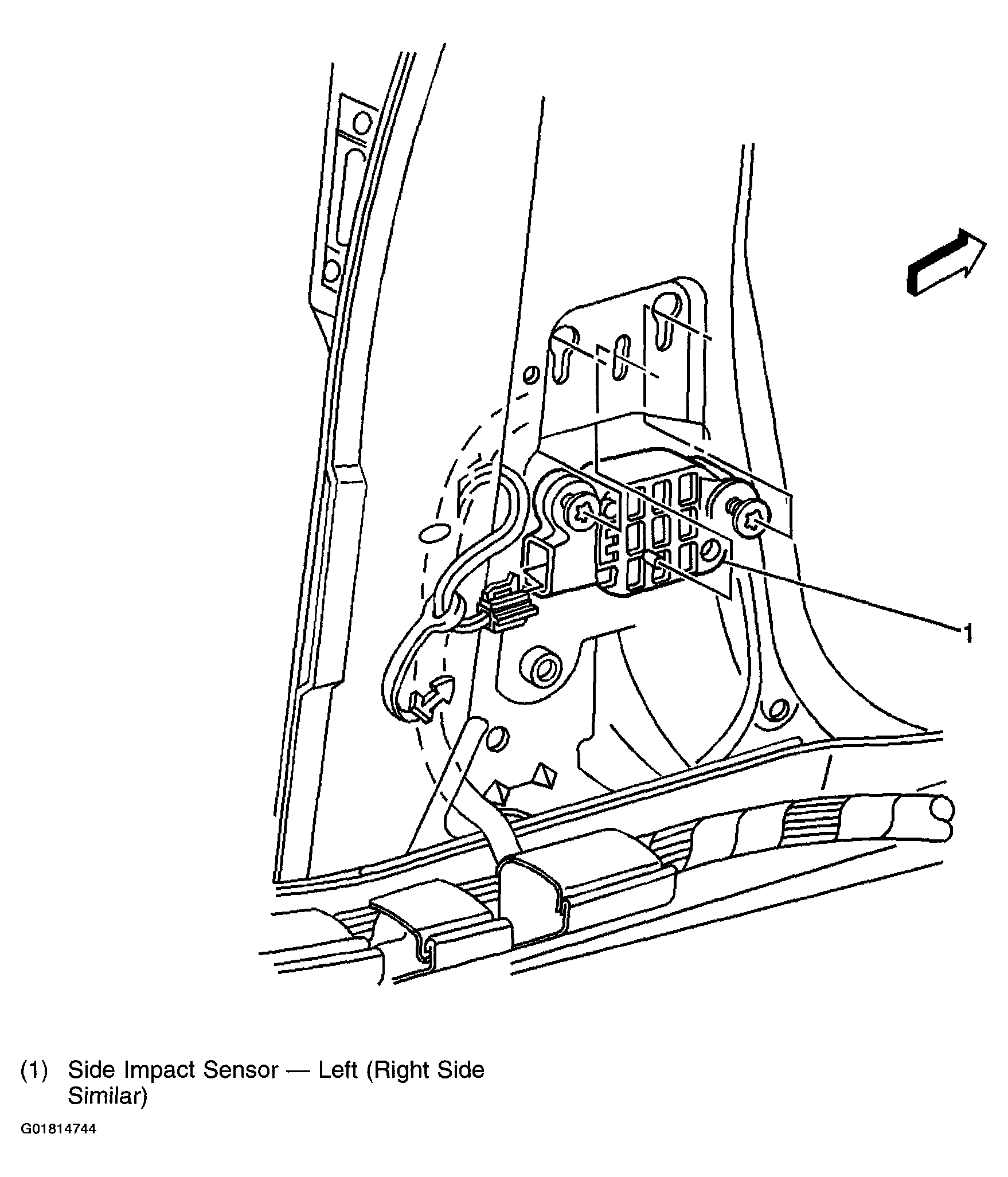

Fig 8: Left Side Of Vehicle, Lower Part Of B-Pillar
