Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front end discriminating sensor to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 2 integral bolts that retain the front end discriminating sensor to the frame front crossmember.

    Tighten

    Tighten the bolts to 8 N.m (71 lb in).

  3. Connect the sensor electrical connector (2) to the front end discriminating sensor.
  4. Install the CPA to the sensor electrical connector.
  5. Enable the SIR system. Refer to Enabling the SIR System .

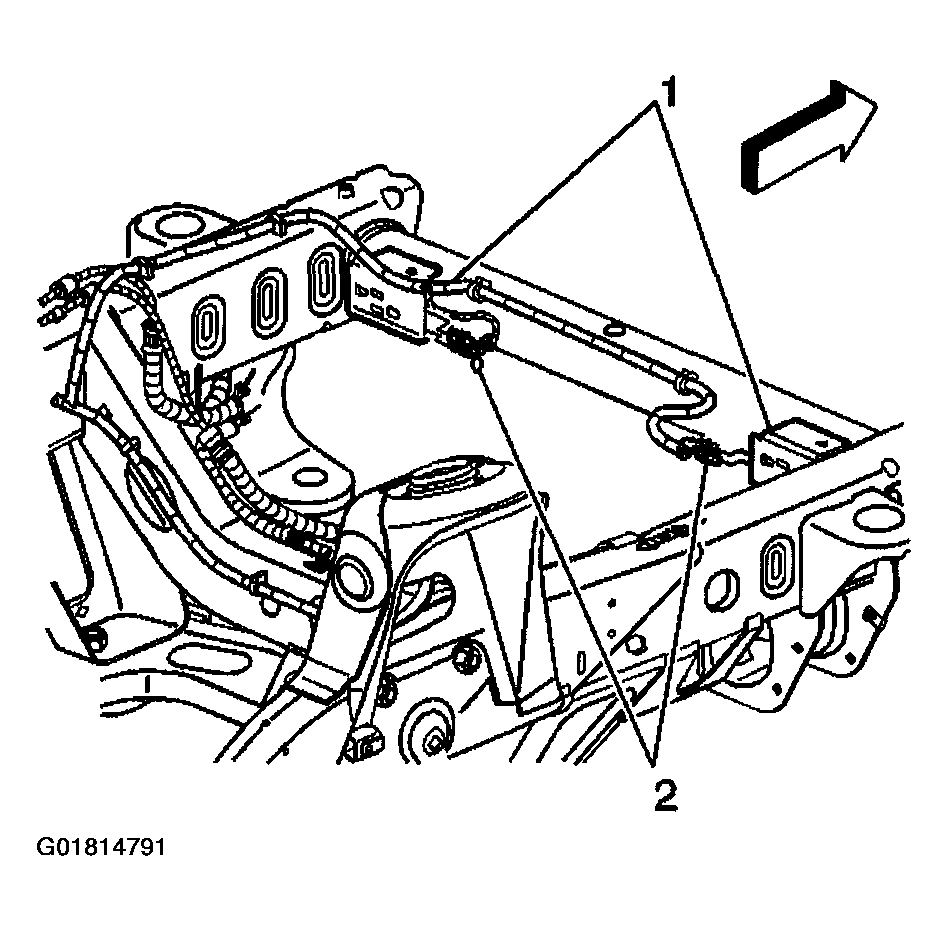

    Fig 1: Connecting Front End Discriminating Sensor Electrical Connector
    G01814791Courtesy of GENERAL MOTORS CORP.
