Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to Disabling the SIR System .
  2. Remove the connector-position assurance (CPA) from the electrical connector on the front end discriminating sensor.
  3. Disconnect the front end discriminating sensor electrical connector (2) from the front end discriminating sensor.
  4. Remove the 2 integral bolts that retain the front end discriminating sensor to the frame front crossmember.
  5. Remove the front end discriminating sensor from the vehicle.

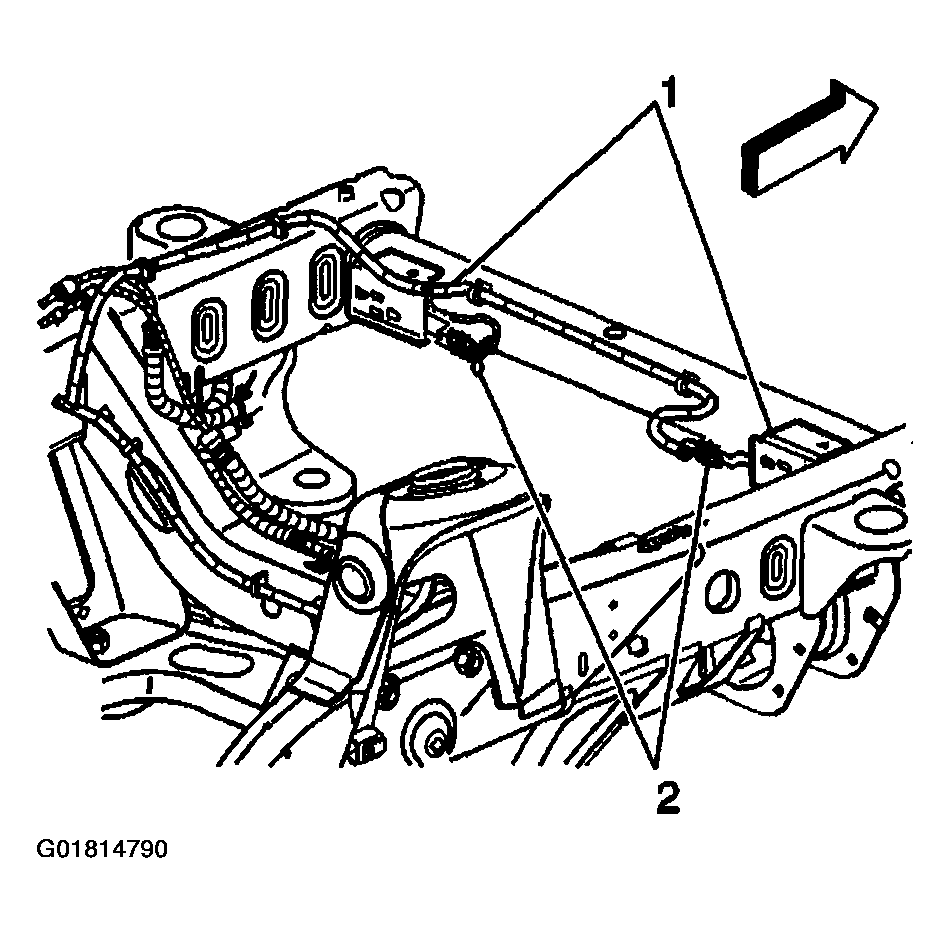

    Fig 1: Disconnecting Front End Discriminating Sensor Electrical Connector
    G01814790Courtesy of GENERAL MOTORS CORP.
