Connector End View
›
Evaporative Temperature Sensor Connector End View
Evaporative Temperature Sensor Connector End View

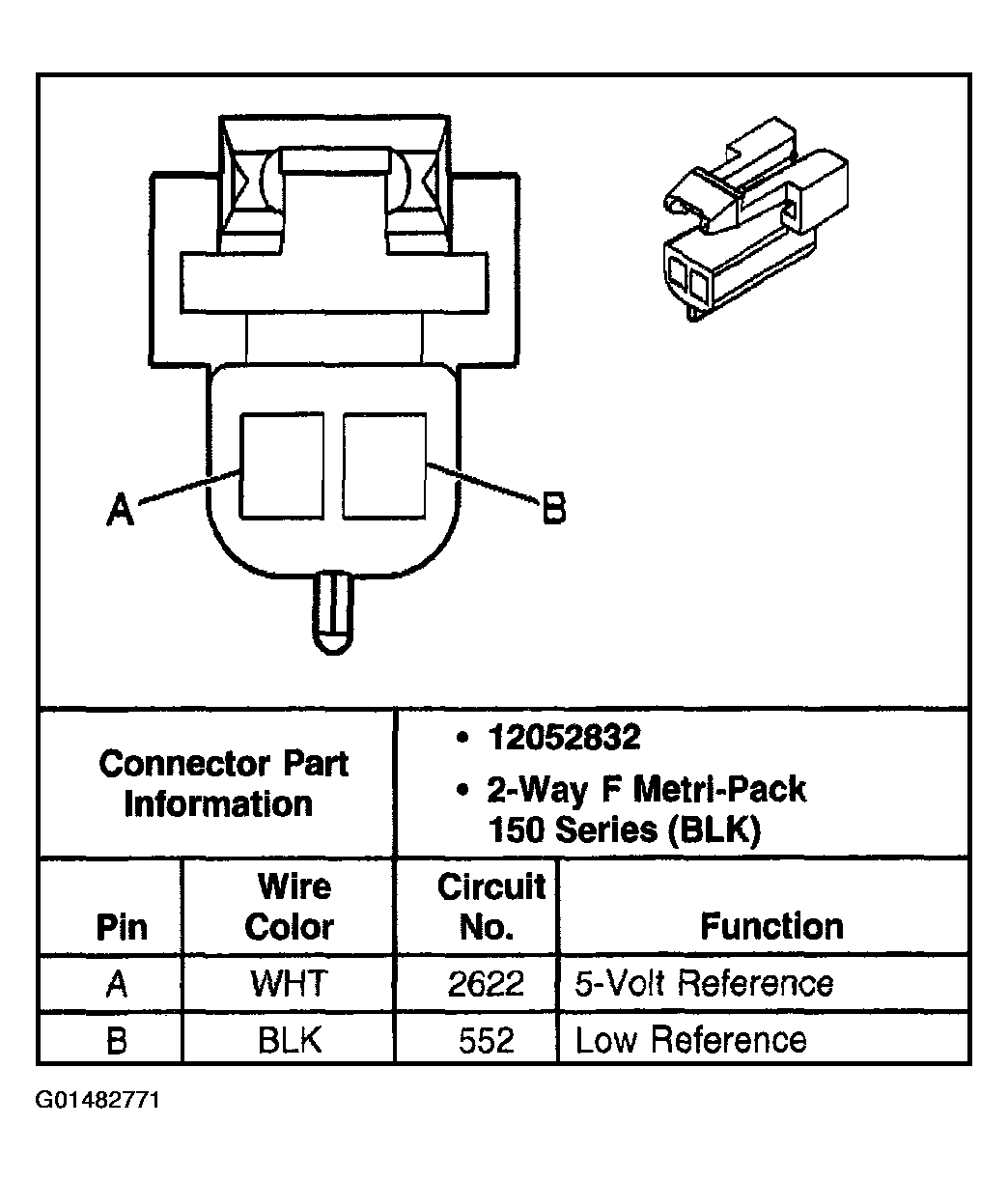

Fig 1: Evaporative Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
